395-142 Series
Manufacturer: EDAC Inc.
Beta
⌘K

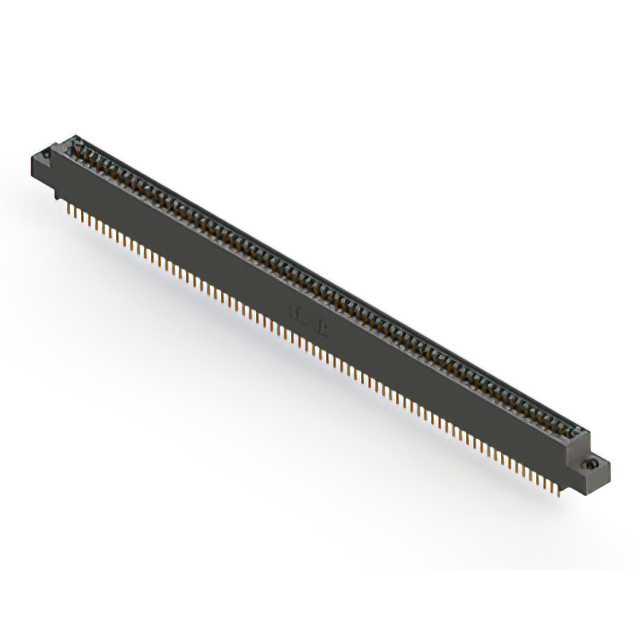

CONN EDGE DUAL FML 142POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Gender | Mounting Type | Color | Flange Feature | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Contact Type | Number of Positions | Card Type | Number of Positions/Bay/Row | Contact Finish | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 4-40 Threaded Insert Top Mount Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Right Angle Through Hole | Black | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Right Angle Through Hole | Black | 4-40 Threaded Insert Top Mount Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | Flush Mount Side Opening Unthreaded | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Wire Wrap | Dual | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Wire Wrap | Dual | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 4-40 Threaded Insert Top Mount Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Wire Wrap | Dual | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 4-40 Threaded Insert Top Mount Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Through Hole | Black | 4-40 Threaded Insert Top Mount Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder | Dual | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 0.25 Ám | 10 Áin | Female | Board Edge Straddle Mount | Black | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Cantilever | 142 | Non Specified - Dual Edge | 71 | Gold | 0.1 " | 2.54 mm | -40 C | 105 ░C | Solder Eyelet(s) | Dual | Card Extender Card Guides |
