045130 Series

Manufacturer: Molex

Catalog

NANO-FIT 2 CIRCUIT 1M

Part	Cable Termination	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length [x]	Length [x]	Contact Finish	Length	Length	Length	Length [x]

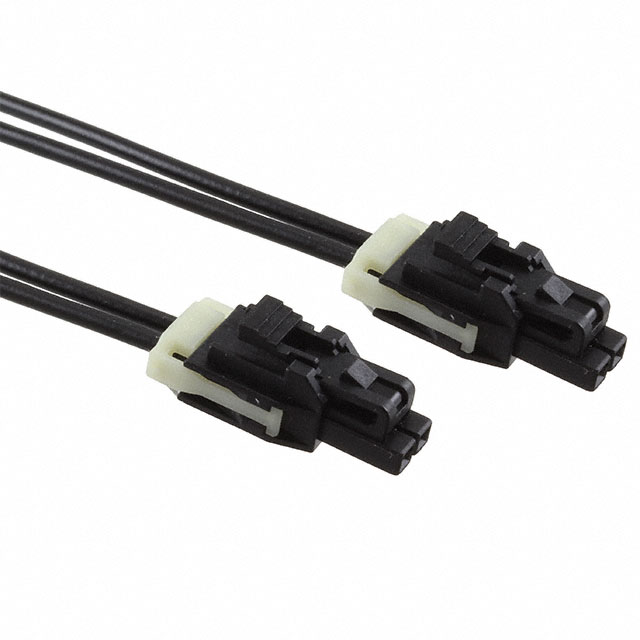

Molex 0451300210	Crimp	Socket to Socket	1	2.5 mm	0.098 in	2	15 µin	0.38 µm	Unshielded	1 m	3.28 ft	Gold
Molex 0451300201	Crimp	Socket to Socket	1	2.5 mm	0.098 in	2	15 µin	0.38 µm	Unshielded			Gold	150 mm	5.91 "	0.492 ft

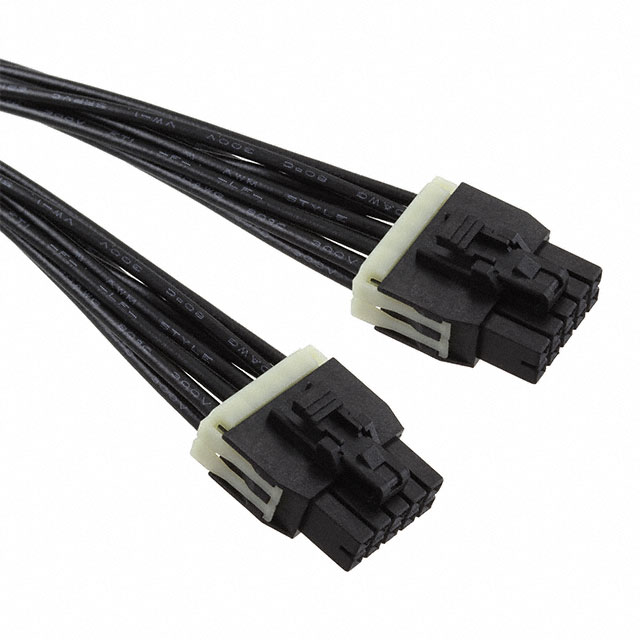

Molex 0451301003	Crimp	Socket to Socket	2	2.5 mm	0.098 in	10	15 µin	0.38 µm	Unshielded	300 mm	0.984 '	Gold				11.81 "

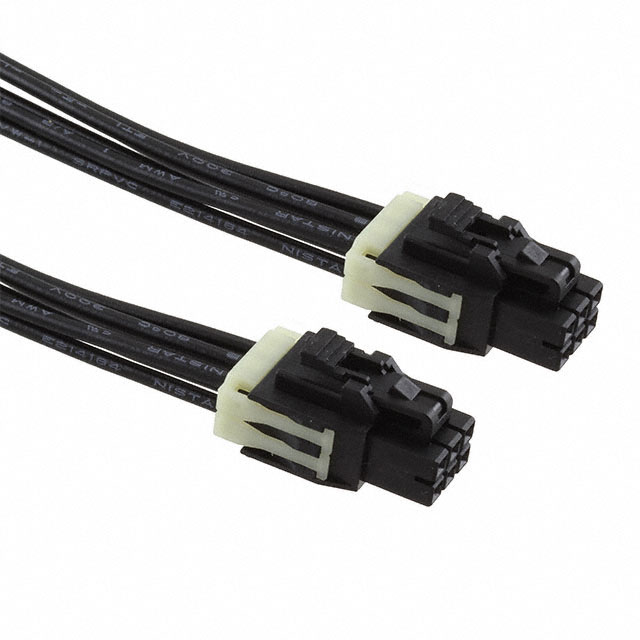

Molex 0451300603	Crimp	Socket to Socket	2	2.5 mm	0.098 in	6	15 µin	0.38 µm	Unshielded	300 mm	0.984 '	Gold				11.81 "

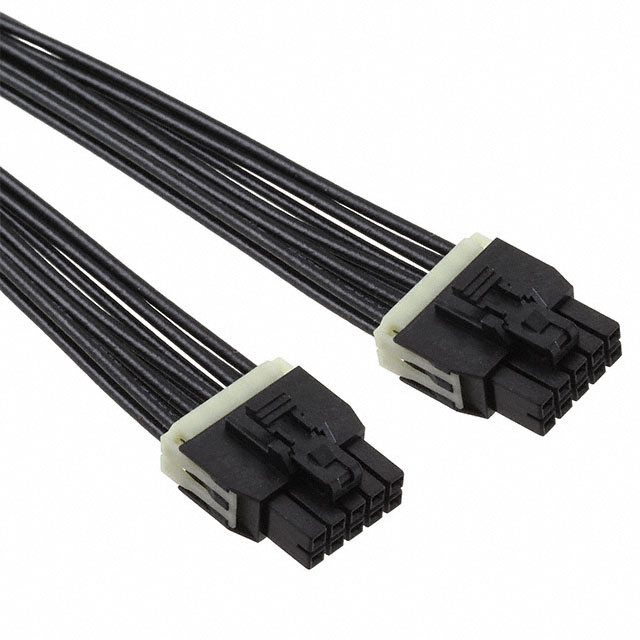

Molex 0451301001	Crimp	Socket to Socket	2	2.5 mm	0.098 in	10	15 µin	0.38 µm	Unshielded			Gold	150 mm	5.91 "	0.492 ft

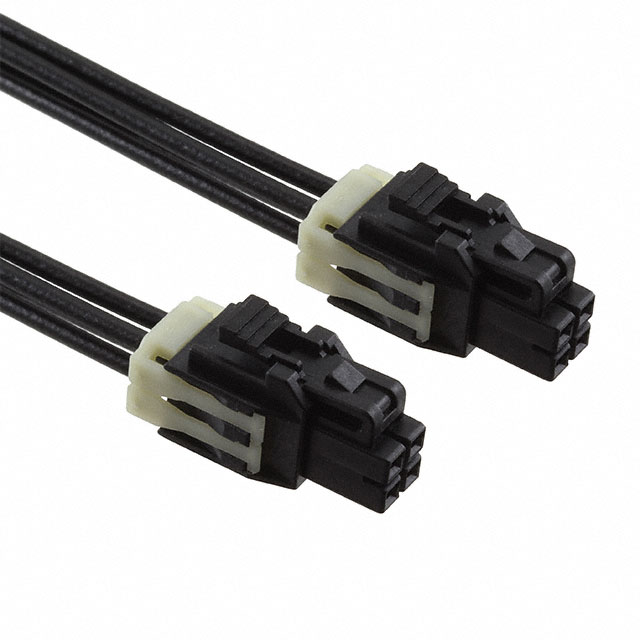

Molex 0451300403	Crimp	Socket to Socket	2	2.5 mm	0.098 in	4	15 µin	0.38 µm	Unshielded	300 mm	0.984 '	Gold				11.81 "

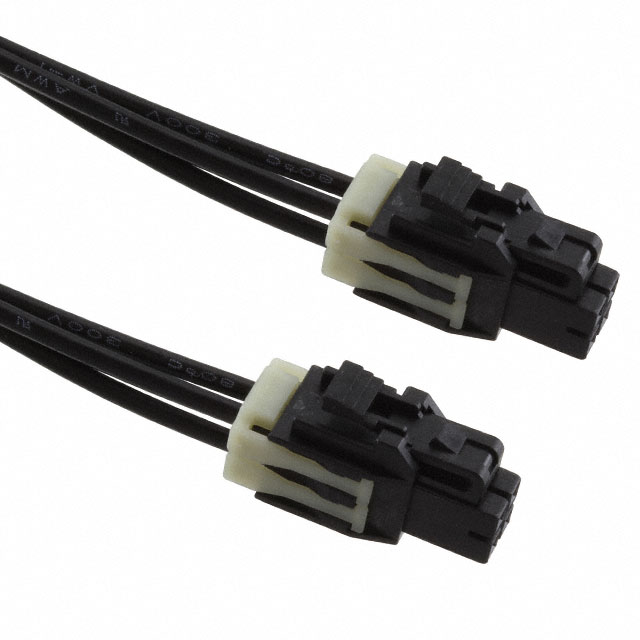

Molex 0451300410	Crimp	Socket to Socket	2	2.5 mm	0.098 in	4	15 µin	0.38 µm	Unshielded	1 m	3.28 ft	Gold

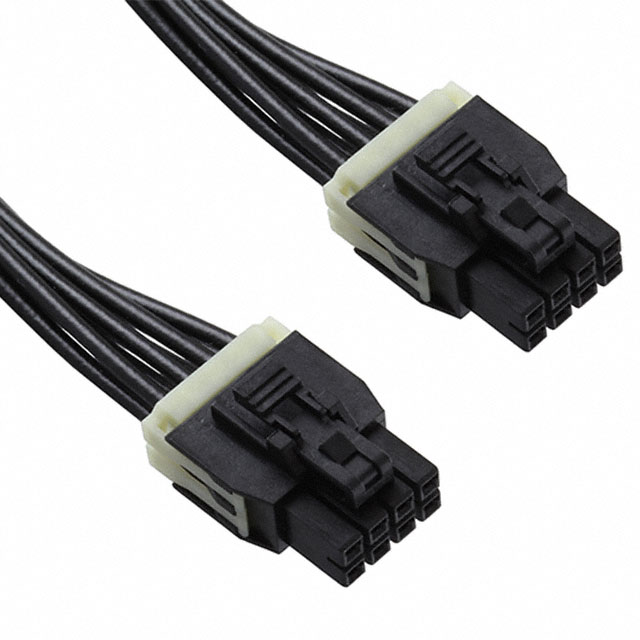

Molex 0451300810	Crimp	Socket to Socket	2	2.5 mm	0.098 in	8	15 µin	0.38 µm	Unshielded	1 m	3.28 ft	Gold

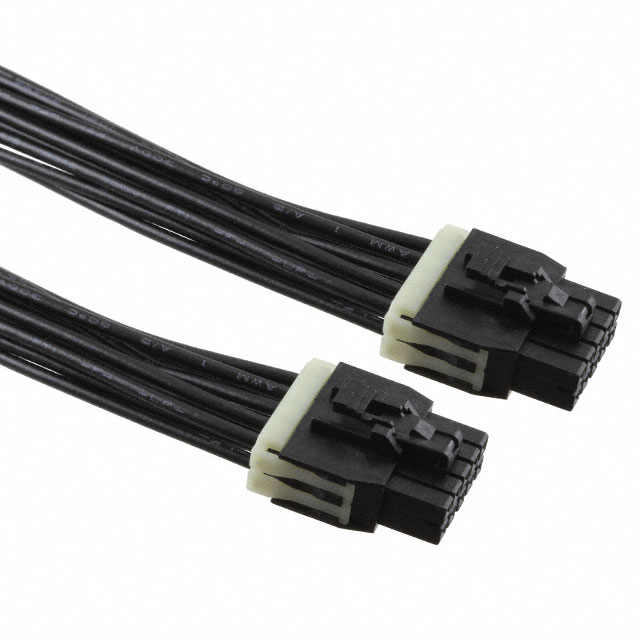

Molex 0451301010	Crimp	Socket to Socket	2	2.5 mm	0.098 in	10	15 µin	0.38 µm	Unshielded	1 m	3.28 ft	Gold
