1-1825011 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

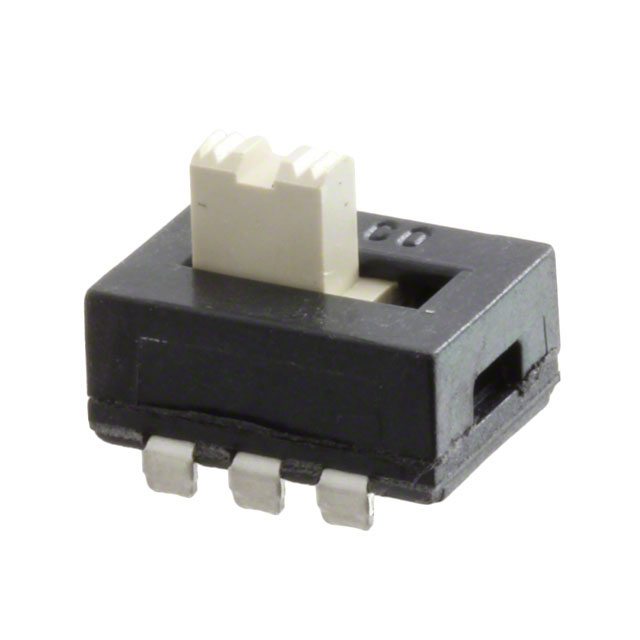

SWITCH SLIDE DPDT 300MA 115V
| Part | Mechanical Life | Actuator Material | Switch Travel | Electrical Life | Operating Force | Switch Function | Contact Timing | Actuator Length | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Contact Finish | Mounting Type | Current Rating (Amps) | Actuator Type | Contact Material | Termination Style | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 15000 Cycles | Polyamide (PA46) Nylon 4/6 | 2.79 mm | 15000 Cycles | 950 gf | On-On | Shorting (MBB) | Flush | 80 °C | -40 C | 115 V | Silver | Right Angle Surface Mount | 300 mA | Screwdriver Slot | Copper Alloy | J Lead | DPDT |
