M20-976 Series

Catalog

8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Insulation Color	Style	Termination	Contact Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Number of Positions [custom]
Harwin Inc. M20-9760842	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	16	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable	Gold	3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9761246	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	24	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable		3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2

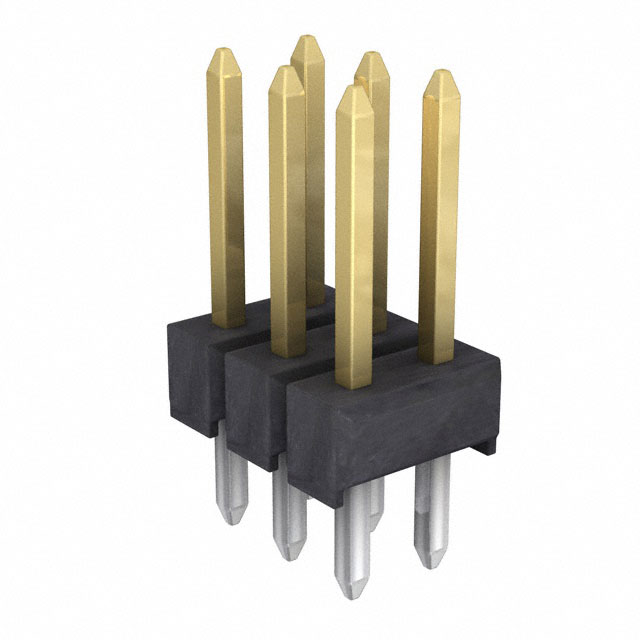

Harwin Inc. M20-9760342	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	6	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable	Gold	3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9760346	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	6	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable		3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9760246	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	4	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable		3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9760742	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	14	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable	Gold	3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9761746	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)		Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable		3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2	34
Harwin Inc. M20-9761342	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	26	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable	Gold	3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9763646	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	72	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable		3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
Harwin Inc. M20-9760442	9.94 mm 10.64 mm 11.04 mm 16.54 mm	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	8	Square	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	Unshrouded	All	Through Hole	UL94 V-0	0.122 in	3.1 mm	Push-Pull	Black	Board to Board Cable	Solder	Brass	0.228 in	5.8 mm	Header Cuttable	Gold	3 A	11.48 mm	0.452 in	Male Pin	0.1 in	2.54 mm	2
