TST03 Series

Catalog

CONN HEADER VERT 3POS 5.08MM

Part	Applications	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions Loaded	Style	Insulation Material	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Voltage Rating	Insulation Height	Insulation Height	Insulation Color	Features	Contact Length - Post	Contact Length - Post	Contact Type	Connector Type	Termination	Number of Rows	For Use With/Related Products	Accessory Type	Contact Length - Post [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Note	Contact Termination	Color	Pitch	Pitch
ITT Cannon, LLC TST03RB05T	Automotive Industrial	Through Hole	0.2 "	5.08 mm	Circular	All	Board to Cable/Wire	Nylon Polyamide (PA)	Latch Holder	13 A	UL94 V-0	-40 C	105 ░C	Unshrouded	250 V	13.5 mm	0.531 in	Black	Mounting Flange	5.7 mm	0.224 in	Male Pin	Receptacle	Solder	1

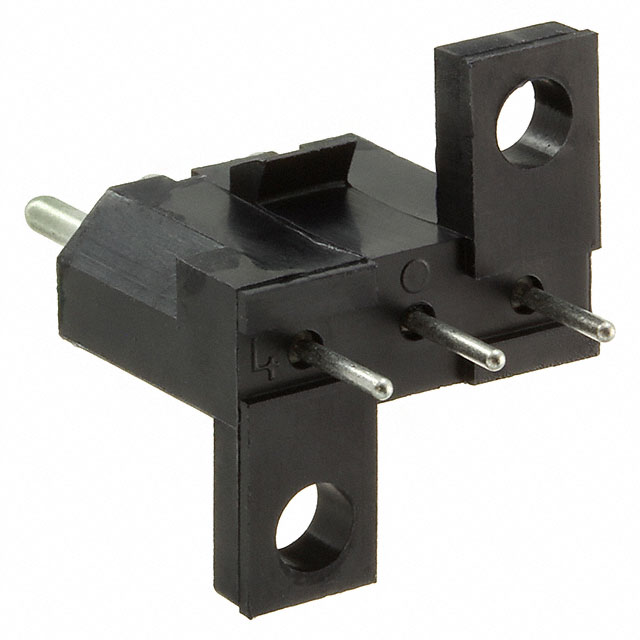

ITT Cannon, LLC TST03RB01T	Automotive Industrial	Through Hole	0.2 "	5.08 mm	Circular	All	Board to Cable/Wire	Nylon Polyamide (PA)	Latch Holder	13 A	UL94 V-0	-40 C	105 ░C	Unshrouded	250 V	13.5 mm	0.531 in	Black	Mounting Flange	5.7 mm	0.224 in	Male Pin	Receptacle	Solder	1
ITT Cannon, LLC TST03AH00																										Trident Rectangular Plugs	Hood and Strain Relief

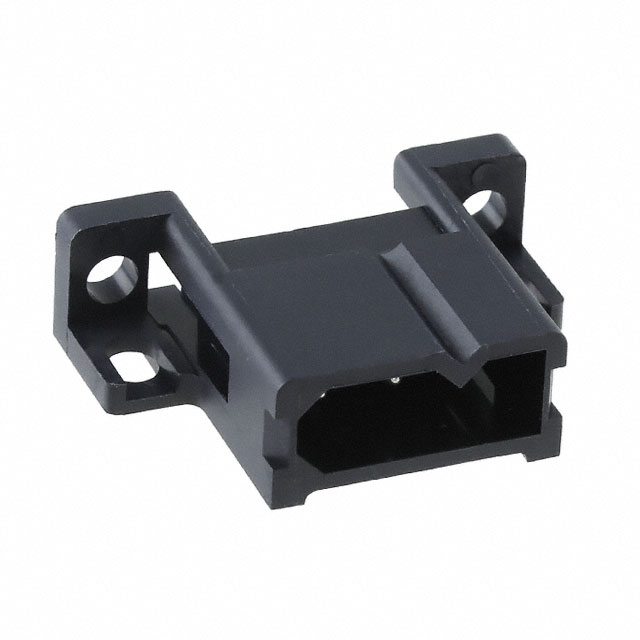

ITT Cannon, LLC TST03RE01T		Right Angle Through Hole	0.2 "	5.08 mm	Circular	All	Board to Cable/Wire	Nylon Polyamide (PA)	Latch Holder	10 A	UL94 V-0	-40 C	105 ░C	Shrouded - 4 Wall	250 V	9.8 mm	0.386 in	Black	Mounting Flange	4 mm		Male Pin	Receptacle	Solder	1			0.157 in
ITT Cannon, LLC TST03RB06Y	Automotive General Purpose	Through Hole	0.2 "	5.08 mm	Circular	All	Board to Board Cable	Nylon Polyamide (PA)	Latch Holder		UL94 V-0	-40 C	105 ░C			13.5 mm	0.531 in	Black	Mounting Flange	5.7 mm	0.224 in	Female Socket	Receptacle	Solder	1				Gold	0.76 Ám	30 Áin
ITT Cannon, LLC TST03RD01Y		Through Hole	0.2 "	5.08 mm	Circular	All	Board to Cable/Wire	Nylon Polyamide (PA)	Latch Holder	10 A	UL94 V-0	-40 C	105 ░C	Shrouded - 4 Wall	240 V			Black	Mounting Flange			Male Pin	Receptacle	Solder	1			0.185 in	Gold	0.41 Ám	16 Áin	4.7 mm	23.15 mm	0.911 "
ITT Cannon, LLC TST03RB01Z	Automotive Industrial	Through Hole	0.2 "	5.08 mm	Circular	All	Board to Cable/Wire	Nylon Polyamide (PA)	Latch Holder	13 A	UL94 V-0	-40 C	105 ░C	Unshrouded	250 V	13.5 mm	0.531 in	Black	Mounting Flange	5.7 mm	0.224 in	Male Pin	Receptacle	Solder	1				Gold						Flash

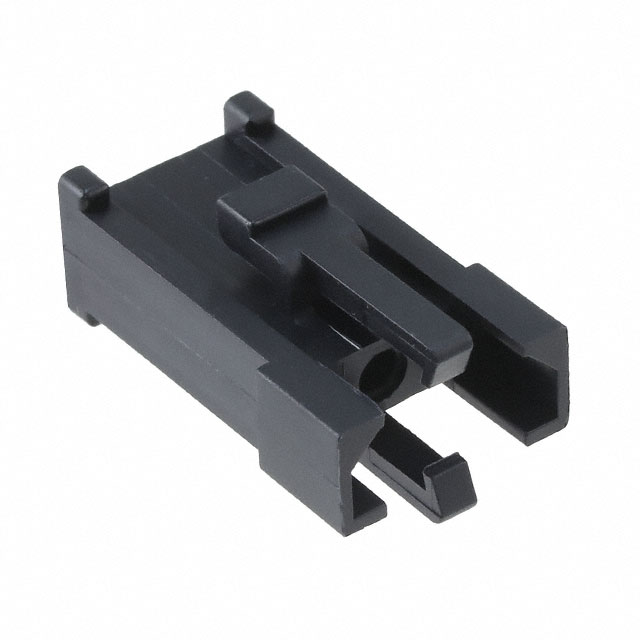

ITT Cannon, LLC TST03PA00		Free Hanging (In-Line)						Nylon Polyamide (PA)	Latch Lock			-55 C	105 ░C									Male or Female	Plug		1											Contacts Not Included	Crimp Solder	Black	5.08 mm	0.2 in
ITT Cannon, LLC TST03PF00		Free Hanging (In-Line)						Nylon Polyamide (PA)	Latch Lock			-55 C	105 ░C									Female Socket	Plug		1											Contacts Not Included	Crimp Solder	Black	5.08 mm	0.2 in

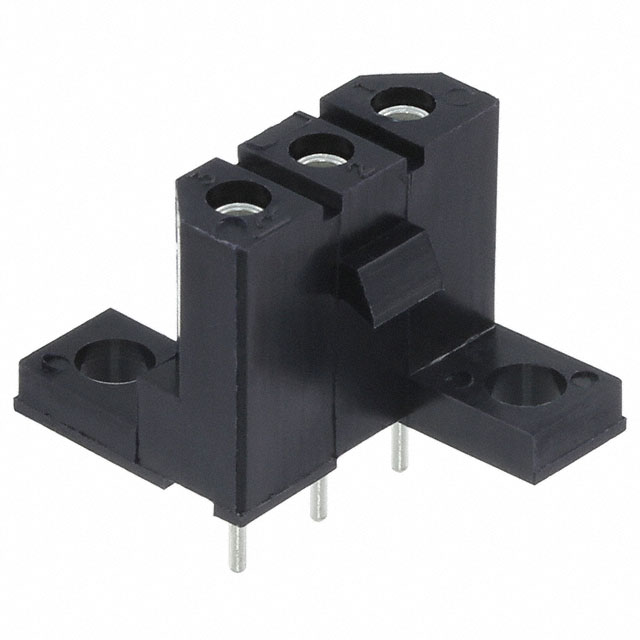

ITT Cannon, LLC TST03RB02T	Automotive General Purpose	Through Hole	0.2 "	5.08 mm	Circular	All	Board to Board Cable	Nylon Polyamide (PA)	Latch Holder		UL94 V-0	-40 C	105 ░C			13.5 mm	0.531 in	Black	Mounting Flange	5.7 mm	0.224 in	Female Socket	Receptacle	Solder	1
