8102 Series
Manufacturer: Belden Inc.
Beta
⌘K

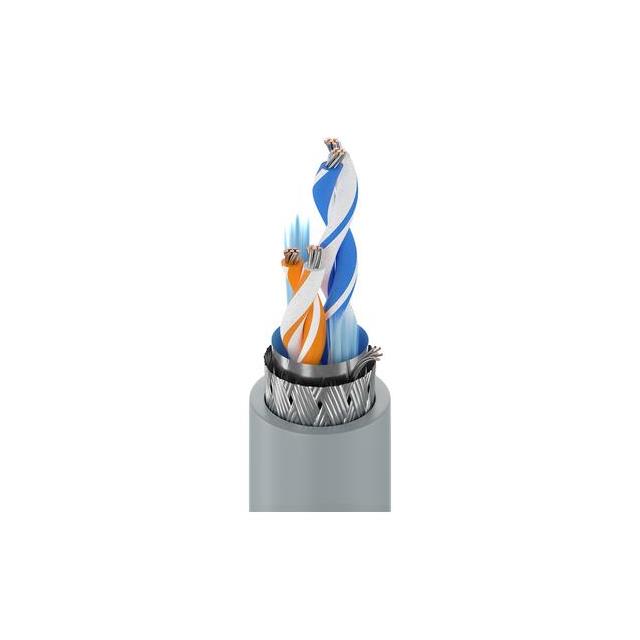

MULTI-PAIR 4CON 24AWG CHROM
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Features | Conductor Insulation | Ratings | Jacket Color | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 0.27 " | 6.86 mm | Braid Foil | Copper Tinned | 80 °C | -30 ░C | Multi-Pair | 0.035 in | 0.889 mm | 152.4 m | 500 ft | Drain Wire | Foam Polyethylene (FPE) | UL Style 2919 | Chrome | 24 AWG | 7 | 32 AWG | Computer | 4 |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 0.27 " | 6.86 mm | Braid Foil | Copper Tinned | 80 °C | -30 ░C | Multi-Pair | 0.035 in | 0.889 mm | 3048 m | 10000 ft | Drain Wire | Foam Polyethylene (FPE) | UL Style 2919 | Chrome | 24 AWG | 7 | 32 AWG | Computer | 4 |
