50.64 Series

Catalog

CABLE GLAND 19-27MM M40 BRASS

Part	Includes	Material	Thread Size	Thread Length	Thread Length	Color	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Type	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]

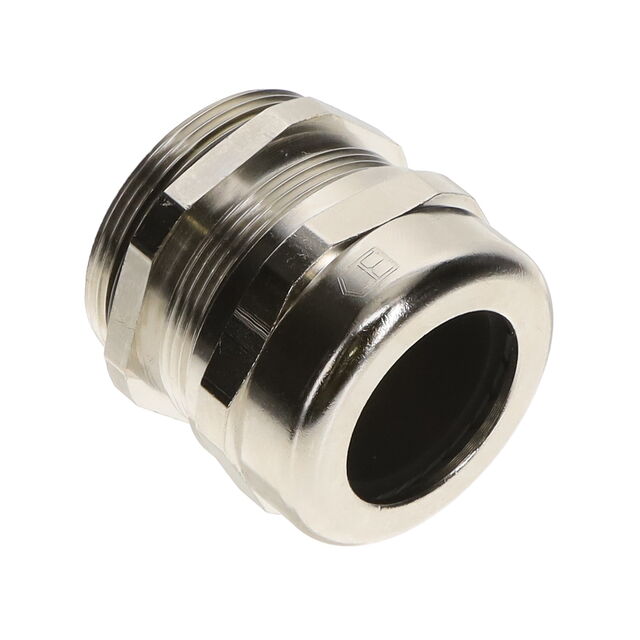

Jacob GmbH 50.640 M/EMVD	O-Ring Seal	Brass Nickel Plated	M40x1.5	0.315 "	8 mm	Silver	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C

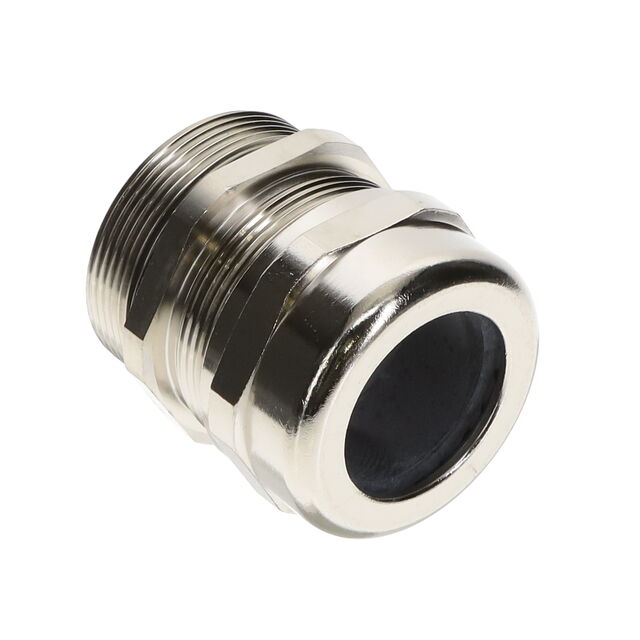

Jacob GmbH 50.640M/EMV/L	O-Ring Seal	Brass Nickel Plated	M40x1.5	0.512 "	13 mm	Silver	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C

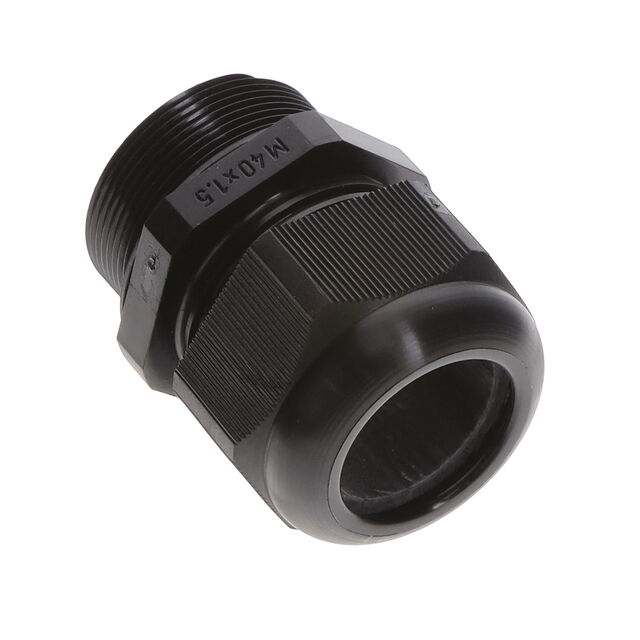

Jacob GmbH 50.640 PA/SWL	Sealing Ring		M40x1.5	0.709 in	18.01 mm	Black	IP68 - Dust Tight Waterproof		28 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C	1.102 in

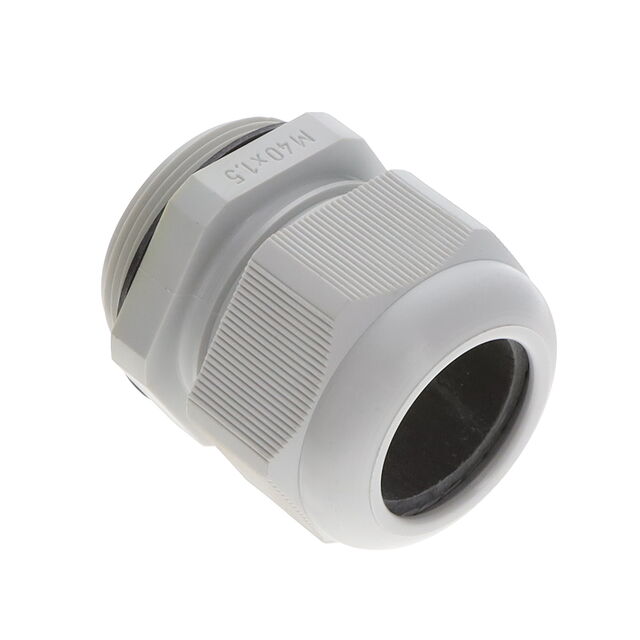

Jacob GmbH 50.640 PA7035	Sealing Ring		M40x1.5	0.394 in	10 mm	Gray	IP68 - Dust Tight Waterproof		28 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C	1.102 in

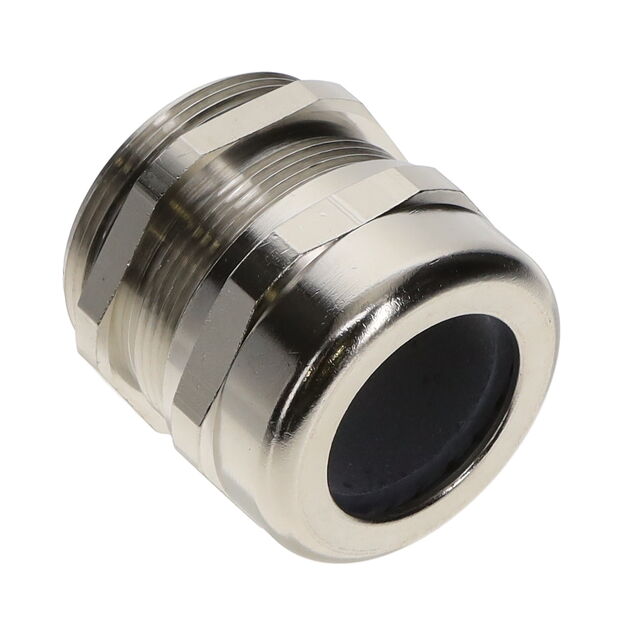

Jacob GmbH 50.640 M/EMV	O-Ring Seal	Brass Nickel Plated	M40x1.5	0.315 "	8 mm	Silver	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C

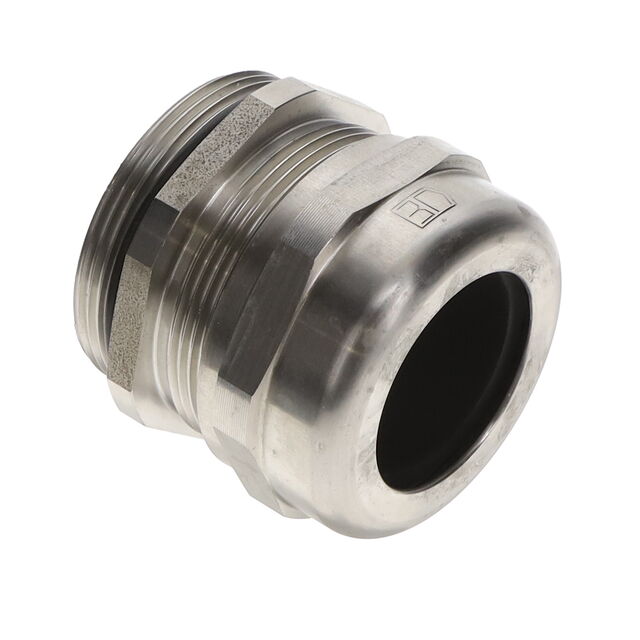

Jacob GmbH 50.640 ES	O-Ring Seal	Stainless Steel	M40x1.5	0.315 "	8 mm	Silver	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C

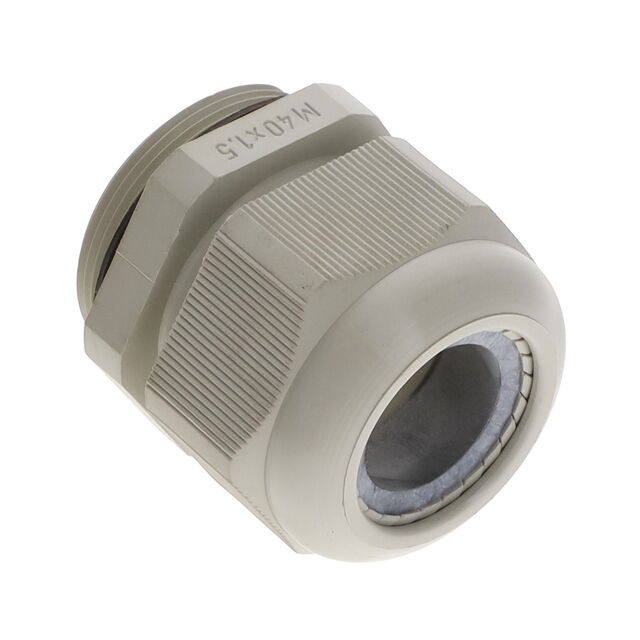

Jacob GmbH 50.640 PA/FL	Sealing Ring		M40x1.5	0.394 in	10 mm	Gray	IP68 - Dust Tight Waterproof		28 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C	1.102 in

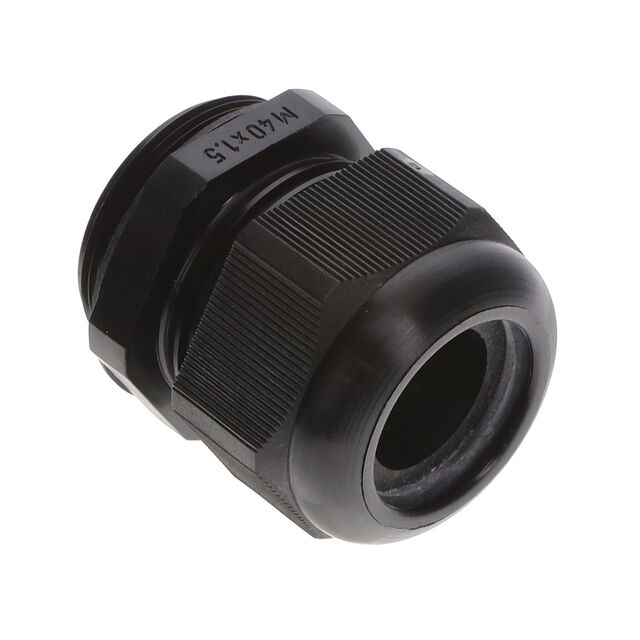

Jacob GmbH 50.640 PA/RSW	Sealing Ring		M40x1.5	0.394 in	10 mm	Black	IP68 - Dust Tight Waterproof		28 mm	Cable Gland			-40 C	100 °C	1.102 in	0.63 in	16 mm

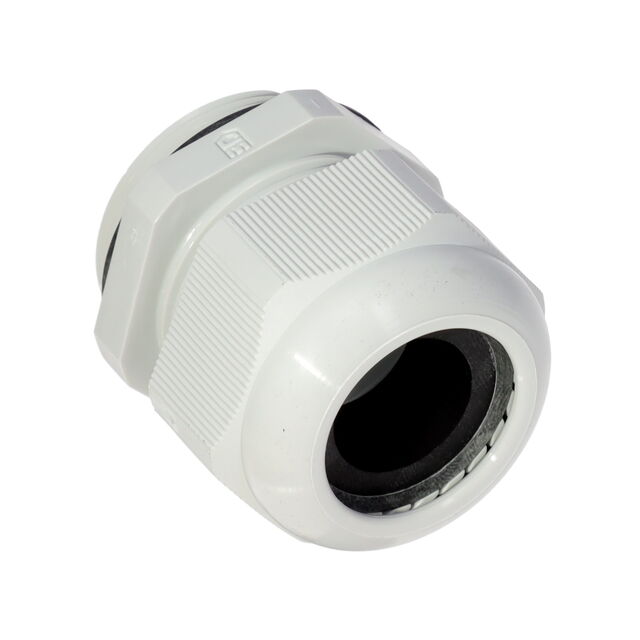

Jacob GmbH 50.640PA/R7035	Sealing Ring		M40x1.5	0.394 in	10 mm	Gray	IP68 - Dust Tight Waterproof		28 mm	Cable Gland			-40 C	100 °C	1.102 in	0.63 in	16 mm

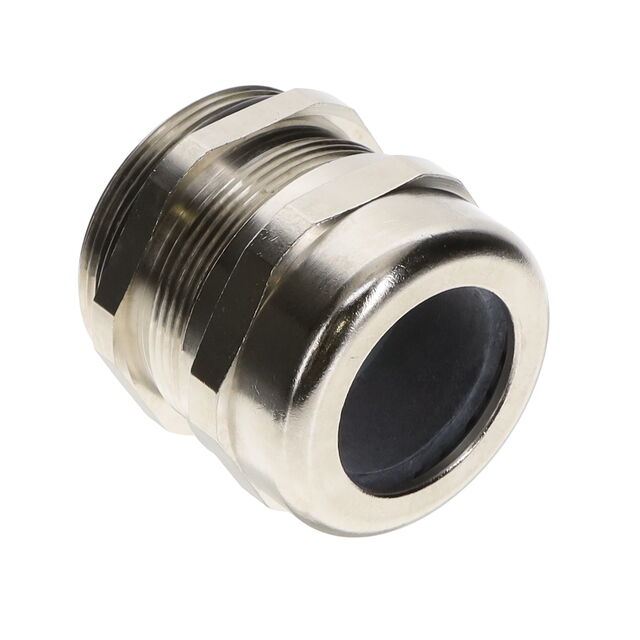

Jacob GmbH 50.640 M	O-Ring Seal	Brass Nickel Plated	M40x1.5	0.315 "	8 mm	Silver	IP68 - Dust Tight Waterproof	1.063 in	27 mm	Cable Gland	0.748 in	19 mm	-40 C	100 °C
