M55-602 Series

Catalog

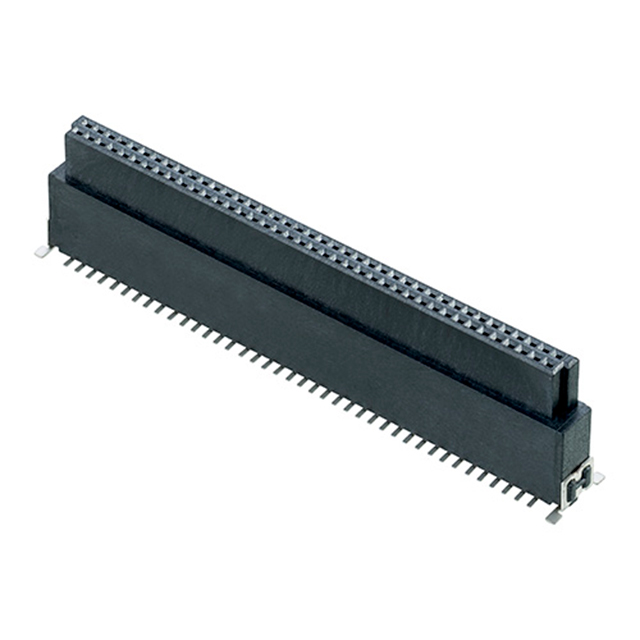

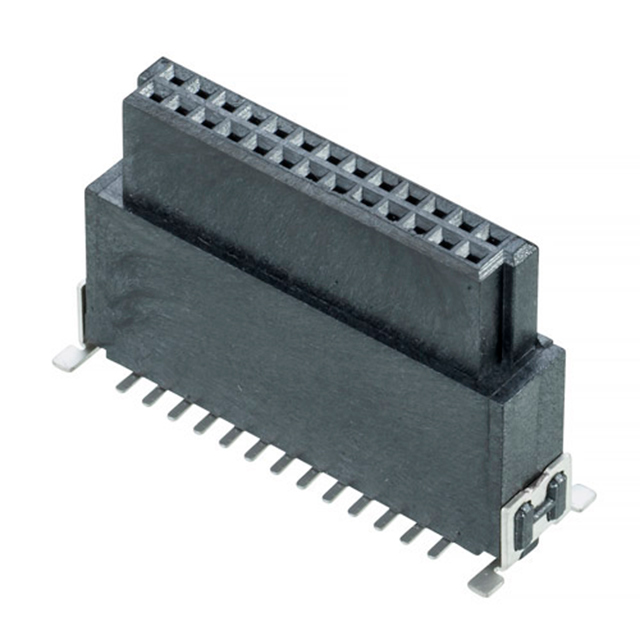

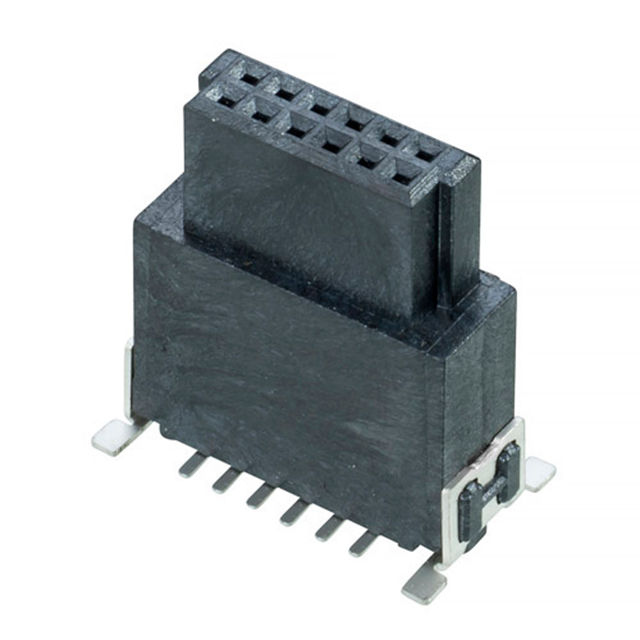

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 26 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows [custom]	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Contact Type	Termination	Connector Type	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Insulation Color	Voltage Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Mated Stacking Heights
Harwin Inc. M55-6022642R	Automotive General Purpose Industrial	2.54 µm	100 µin	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular	0.025 µm	1 µin	-55 C	125 °C	Board Guide Pick and Place Solder Retention	2	26	UL94 V-0	All	Female Socket	Solder	Receptacle	Latch Holder	Surface Mount	13.64 mm	0.537 in	Black	100 VAC	1.2 A	1.27 mm	0.05 in	Tin	0.05 in	1.27 mm	Gold	15.4 mm 16.9 mm 18.5 mm
Harwin Inc. M55-6022042R	Automotive General Purpose Industrial	2.54 µm	100 µin	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular	0.025 µm	1 µin	-55 C	125 °C	Board Guide Pick and Place Solder Retention	2	20	UL94 V-0	All	Female Socket	Solder	Receptacle	Latch Holder	Surface Mount	13.64 mm	0.537 in	Black	100 VAC	1.2 A	1.27 mm	0.05 in	Tin	0.05 in	1.27 mm	Gold	15.4 mm 16.9 mm 18.5 mm
Harwin Inc. M55-6021242R	Automotive General Purpose Industrial	2.54 µm	100 µin	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular	0.025 µm	1 µin	-55 C	125 °C	Board Guide Pick and Place Solder Retention	2	12	UL94 V-0	All	Female Socket	Solder	Receptacle	Latch Holder	Surface Mount	13.64 mm	0.537 in	Black	100 VAC	1.2 A	1.27 mm	0.05 in	Tin	0.05 in	1.27 mm	Gold	15.4 mm 16.9 mm 18.5 mm
Harwin Inc. M55-6028042R	Automotive General Purpose Industrial	2.54 µm	100 µin	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Rectangular	0.025 µm	1 µin	-55 C	125 °C	Board Guide Pick and Place Solder Retention	2	80	UL94 V-0	All	Female Socket	Solder	Receptacle	Latch Holder	Surface Mount	13.64 mm	0.537 in	Black	100 VAC	1.2 A	1.27 mm	0.05 in	Tin	0.05 in	1.27 mm	Gold	15.4 mm 16.9 mm 18.5 mm
