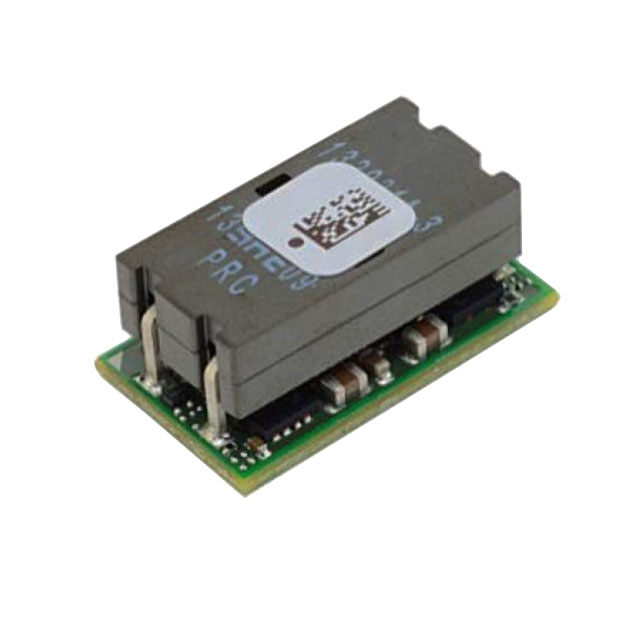

UVXS1212 Series

Catalog

DC DC CNVRTR 0.6-5.5V 0.6-5.5V

Part	Current - Output (Max)	Efficiency	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Features	Control Features	Package / Case	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type
OmniOn Power™ UVXS1212A0X3-SRZ	12 A	95 %	0.6 V	5.5 V	0.8 "	11.4 mm	0.34 in	0.45 in	20.3 mm	8.5 mm	0.6 V	5.5 V	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	28-SMD Module	2	ITE (Commercial)	4.5 V	14.4 V	85 °C	-40 C	Surface Mount	Non-Isolated PoL Module
OmniOn Power™ UVXS1212A0X3-SRZ	12 A	95 %	0.6 V	5.5 V	0.8 "	11.4 mm	0.34 in	0.45 in	20.3 mm	8.5 mm	0.6 V	5.5 V	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	28-SMD Module	2	ITE (Commercial)	4.5 V	14.4 V	85 °C	-40 C	Surface Mount	Non-Isolated PoL Module
