QTE-020 Series

Board to Board & Mezzanine Connectors Q Strip High-Speed Ground Plane Header, 0.80mm Pitch

Catalog

Board to Board & Mezzanine Connectors Q Strip High-Speed Ground Plane Header, 0.80mm Pitch

...

Part	Contact Finish	Connector Type	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QTE-020-03-L-D-K	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	10.27 mm	0.404 in	2	0.8 mm	0.031 in	11 mm	40

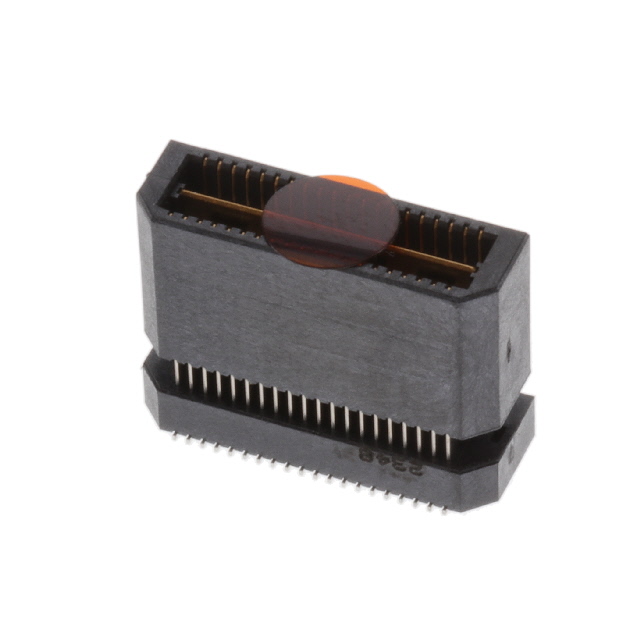

Samtec Inc. QTE-020-04-L-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	15.24 mm	0.6 in	2	0.8 mm	0.031 in	16 mm	40
Samtec Inc. QTE-020-03-C-D-A	Gold	Header Outer Shroud Contacts	Surface Mount		50 µin	1.27 µm	10.27 mm	0.404 in	2	0.8 mm	0.031 in	11 mm	40

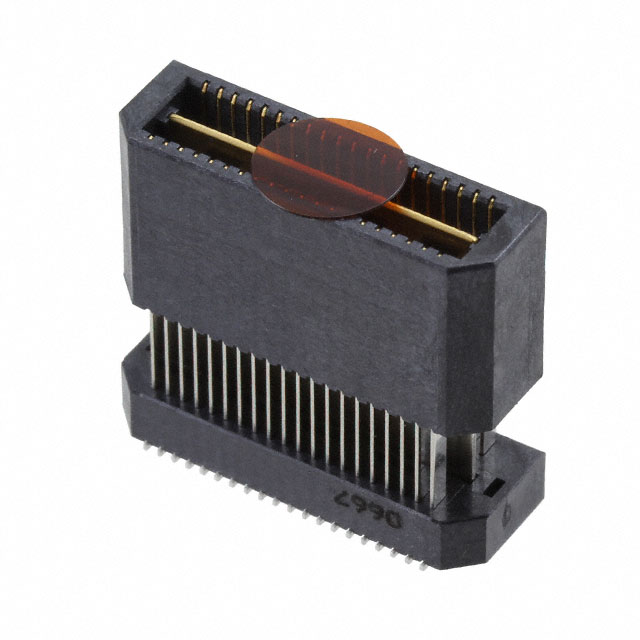

Samtec Inc. QTE-020-05-L-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10 Áin	0.25 Ám	18.24 mm	0.718 in	2	0.8 mm	0.031 in	19 mm	40
Samtec Inc. QTE-020-05-F-D-LC	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Locking Clip	3 Áin	0.076 Ám	18.24 mm	0.718 in	2	0.8 mm	0.031 in	19 mm	40
Samtec Inc. QTE-020-04-L-D-LC	Gold	Header Outer Shroud Contacts	Surface Mount	Ground Bus (Plane) Locking Clip	10 Áin	0.25 Ám	15.24 mm	0.6 in	2	0.8 mm	0.031 in	16 mm	40
Samtec Inc. QTE-060-10-F-D-A-TR	Gold	Header Outer Shroud Contacts	Surface Mount		3 Áin	0.076 Ám	14.37 mm	0.566 in	2	0.8 mm	0.031 in		120
Samtec Inc. QTE-020-01-H-D-A-L	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Latches	30 Áin	0.76 Ám			2	0.8 mm	0.031 in	5 mm	40
Samtec Inc. QTE-020-01-F-D-A-FL	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Friction Lock Ground Bus (Plane)	3 Áin	0.076 Ám			2	0.8 mm	0.031 in	5 mm	40
Samtec Inc. QTE-020-06-F-D-A-K	Gold	Header Outer Shroud Contacts	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	3 Áin	0.076 Ám			2	0.8 mm	0.031 in	22 mm	40	0.837 "	21.26 mm
