803-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

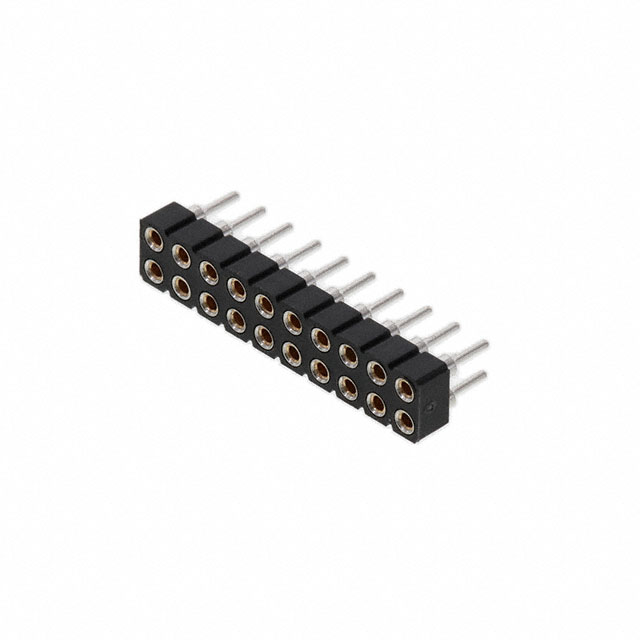

CONN RCPT 20POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Shape | Insulation Material | Contact Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Termination | Contact Length - Post | Contact Length - Post | Fastening Type | Current Rating (Amps) | Mounting Type | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | 0.165 in | 4.2 mm | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | 0.125 in | 3.18 mm | Push-Pull | 4.5 A | Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 20 | Tin | ||||
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | 0.276 in | 7 mm | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | 0.118 in | 3 mm | Push-Pull | 4.5 A | Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 94 | Tin | ||||
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | Push-Pull | 4.5 A | Right Angle Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 92 | Tin | 0.2 in | 5.08 mm | 0.126 " | 3.2 mm | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | 0.276 in | 7 mm | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | 0.118 in | 3 mm | Push-Pull | 4.5 A | Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 42 | Tin | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | Push-Pull | 4.5 A | Right Angle Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 44 | Tin | 0.2 in | 5.08 mm | 0.126 " | 3.2 mm | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | Push-Pull | 4.5 A | Right Angle Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 30 | Tin | 0.2 in | 5.08 mm | 0.126 " | 3.2 mm | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | Push-Pull | 4.5 A | Right Angle Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 62 | Tin | 0.2 in | 5.08 mm | 0.126 " | 3.2 mm | ||||
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | 0.165 in | 4.2 mm | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | 0.125 in | 3.18 mm | Push-Pull | 4.5 A | Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 36 | Tin | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | Push-Pull | 4.5 A | Right Angle Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 52 | Tin | 0.2 in | 5.08 mm | 0.126 " | 3.2 mm | ||||
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Beryllium Copper | Circular | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Female Socket | 0.165 in | 4.2 mm | Flash | Receptacle | Gold | -55 C | 125 °C | 2 | 0.1 " | 2.54 mm | Solder | 0.125 in | 3.18 mm | Push-Pull | 4.5 A | Through Hole | Black | UL94 V-0 | All | 0.1 in | 2.54 mm | 64 | Tin |
