560-002 Series

Manufacturer: EDAC Inc.

Catalog

CONN PLUG HSG 2POS 2.50MM

Part	Note	Connector Type	Mounting Type	Number of Positions	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Pitch	Pitch	Number of Rows	Contact Type	Features	Fastening Type	Applications	Number of Positions Loaded	Ingress Protection	Contact Finish - Post	Contact Shape	Shrouding	Style	Current Rating (Amps)	Termination	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Insulation Color	Contact Material	Length	Length	Cable Termination

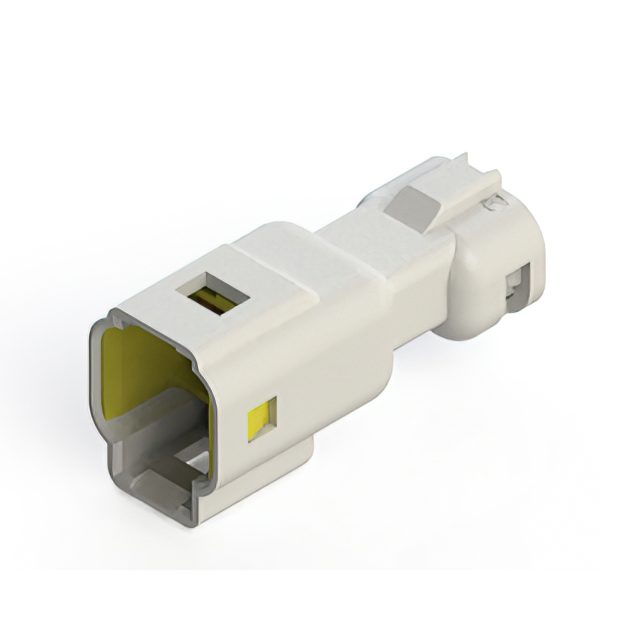

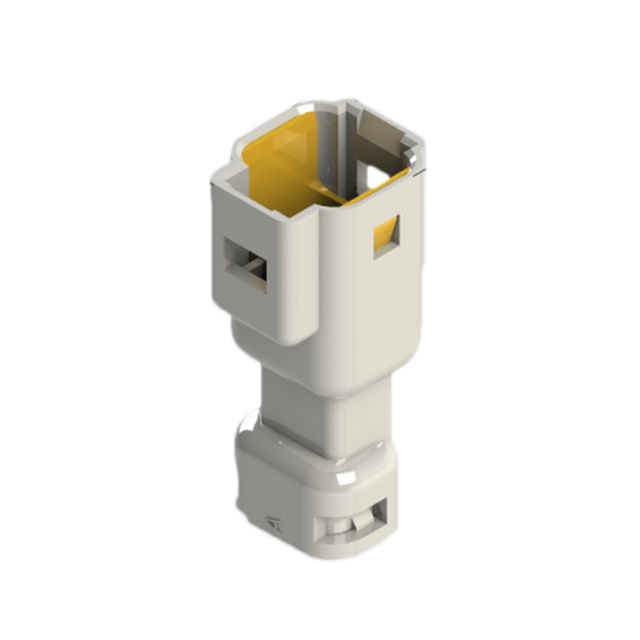

EDAC Inc. 560-002-000-111	Contacts Not Included	Plug	Free Hanging (In-Line)	2	Crimp	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	White	2.5 mm	0.098 in	1	Male Pin	Waterproof	Latch Holder
EDAC Inc. 560-002-000-410	Contacts Not Included	Receptacle	Free Hanging (In-Line)	2	Crimp	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Blue	2.5 mm	0.098 in	1	Female Socket	Waterproof	Latch Lock

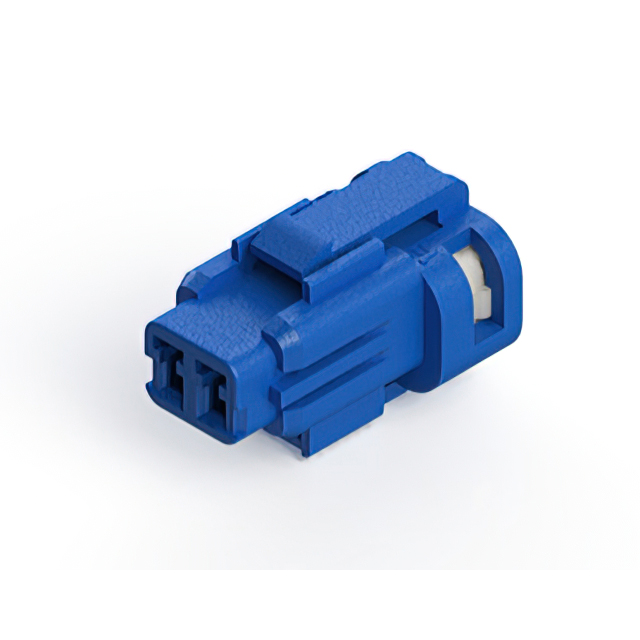

EDAC Inc. 560-002-000-411	Contacts Not Included	Receptacle	Free Hanging (In-Line)	2	Crimp	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	Blue	2.5 mm	0.098 in	1	Female Socket	Waterproof	Latch Lock
EDAC Inc. 560-002-000-110	Contacts Not Included	Plug	Free Hanging (In-Line)	2	Crimp	-40 C	105 ░C	Polybutylene Terephthalate (PBT)	White	2.5 mm	0.098 in	1	Male Pin	Waterproof	Latch Holder
EDAC Inc. 560-002-420-101		Header	Through Hole	2		-40 C	105 ░C	Polybutylene Terephthalate (PBT)				1	Male Pin		Latch Holder	Automotive General Purpose	All	IP67	Tin	Circular	Shrouded - 4 Wall	Board to Cable/Wire	3 A	Solder	0.61 in	15.49 mm	2.5 mm	0.098 in	UL94 V-0	250 V	White	Brass
EDAC Inc. 560-002-745-420		Socket to Cable		2					Blue Individual White			1		Latch Lock																			1.64 ft	50 cm	Crimp
