19431060 Series

Manufacturer: HARTING

Catalog

HAN-ECO 6B CABLE TO CABLE HOOD,

Part	Style	Connector Type	Lock Location	Ingress Protection	Size	Features	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Housing Material	Thread Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING 19431060755	Top Entry Top or Bottom Entry	Hood - Coupling	Locking Clip (1) on Hood	IP66 - Dust Tight Water Resistant	6B	Cable to Cable	125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M20
HARTING 19431060257	Side Entry	Base - Box Mount	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B	Cover	125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M32	2.559 in	84 mm	3.465 "	3.307 "	88 mm	65 mm

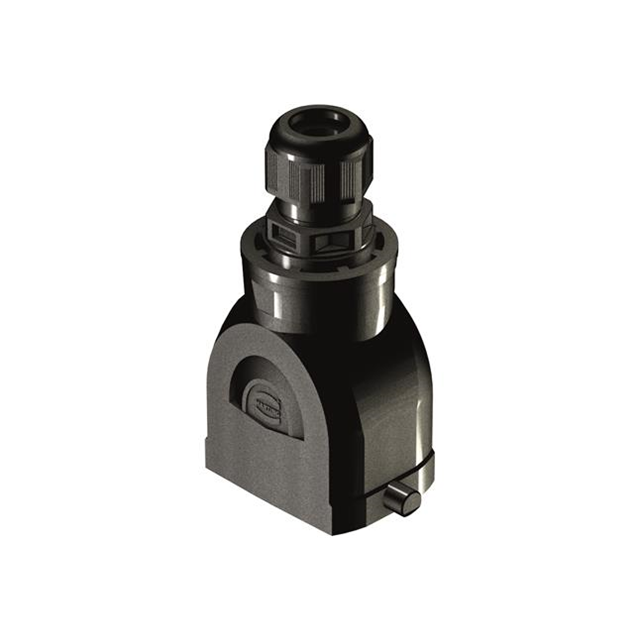

HARTING 19431060447	Top Entry	Hood	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B		125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M32
HARTING 19431060296	Side Entry Dual	Base - Box Mount	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B		125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M25	2.559 in	84 mm	3.465 "	3.307 "	88 mm	65 mm

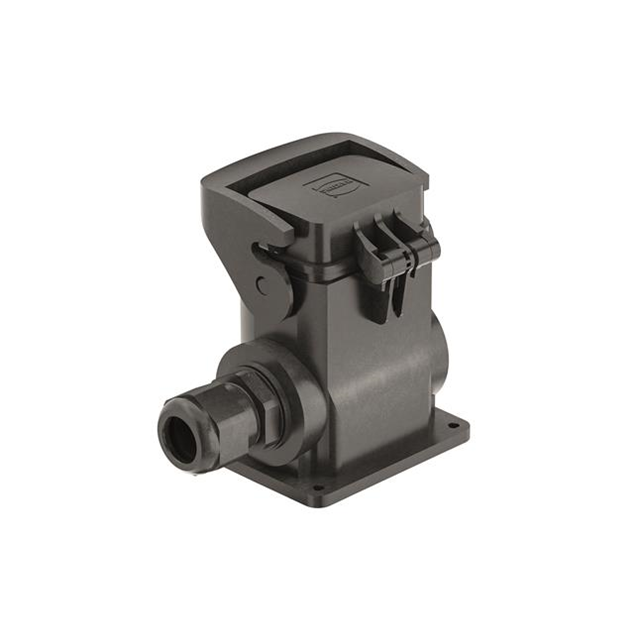

HARTING 19431060255	Side Entry	Base - Box Mount	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B	Cover	125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M20	2.559 in	84 mm	3.465 "	3.307 "	88 mm	65 mm

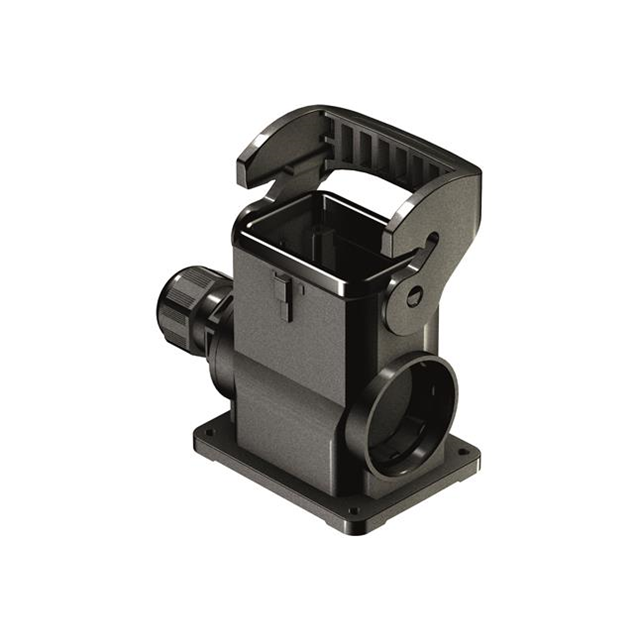

HARTING 19431060252	Side Entry	Base - Box Mount	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B		125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M32	2.559 in	84 mm	3.465 "	3.307 "	88 mm	65 mm

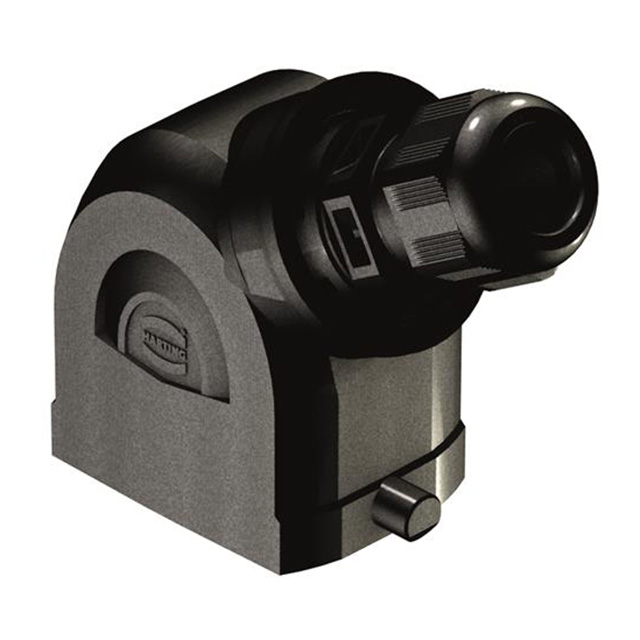

HARTING 19431060546	Side Entry	Hood	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B		125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M25

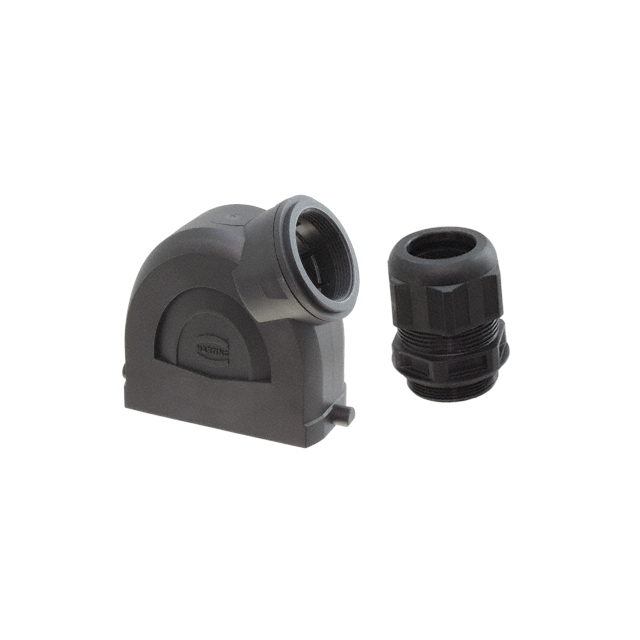

HARTING 19431060547	Side Entry	Hood	Locking Clip (1) on Base Bottom	IP66 - Dust Tight Water Resistant	6B		125 °C	-40 C	Black	Glass Filled Nylon Polyamide (PA)	M32
