LP11 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH SPST-NO 0.1A 12V

Part	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Mounting Type	Termination Style	Actuator Marking	Current Rating (Amps)	Circuit	Actuator Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Voltage Rating - DC	Illumination Type, Color	Type	Features	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]

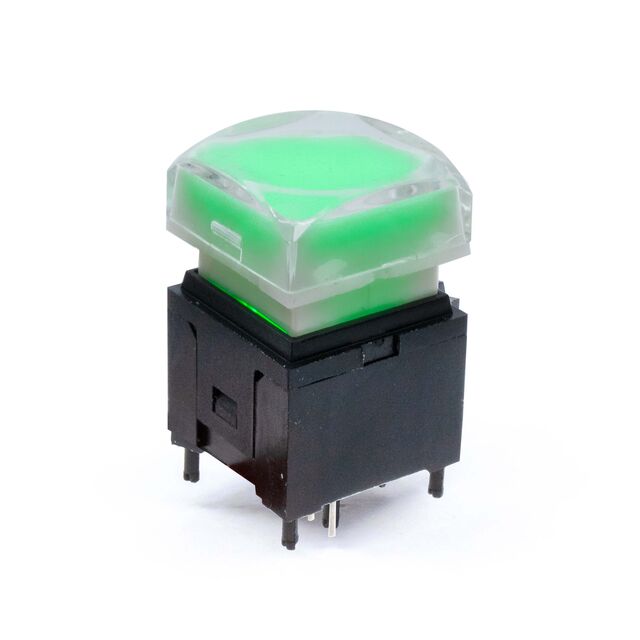

E-Switch LP11OA1NBSRG	1000000 Cycles	1000000 Cycles	2.2 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Green/Red LED	Illuminated Standard

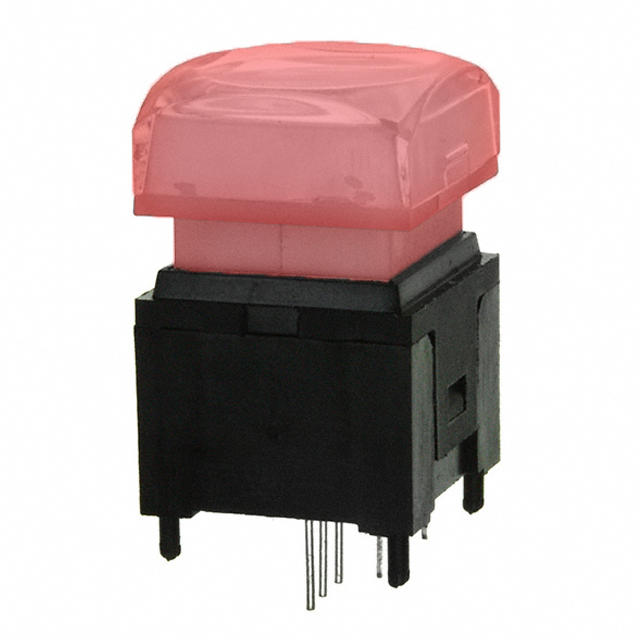

E-Switch LP11OA1TBSRG	1000000 Cycles	1000000 Cycles	2.2 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Green/Red LED	Illuminated Standard	Tactile Feedback

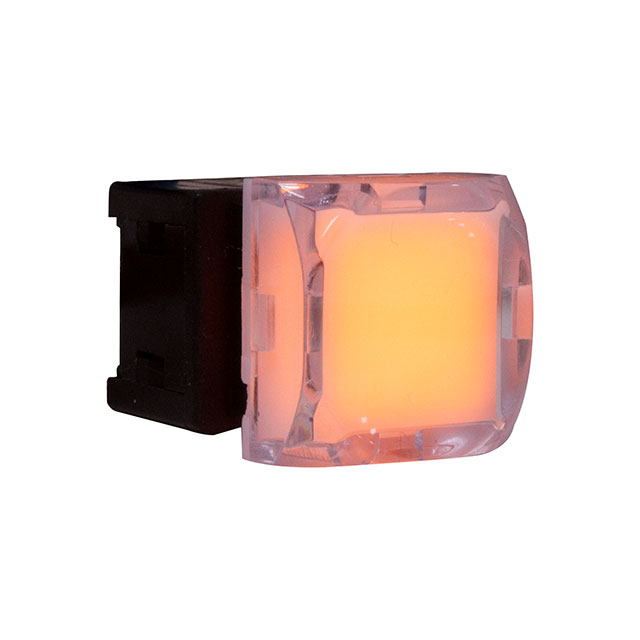

E-Switch LP11OA1TCSYY	1000000 Cycles	1000000 Cycles	2.2 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	LED Yellow/Yellow	Illuminated Standard	Tactile Feedback
E-Switch LP11OA1NCSRG	1000000 Cycles	1000000 Cycles	2.2 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Green/Red LED	Illuminated Standard
E-Switch LP11OA1NCSBW	1000000 Cycles	1000000 Cycles	3.3 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Blue/White LED	Illuminated Standard
E-Switch LP11OA1TASYW	1000000 Cycles			Through Hole	PC Pin		100 mA	SPST-NO	Button Square	Off-Mom	-40 C	85 °C	Clear	12 V		Anti-Vandal Illuminated		2.05 VDC	3.4 VDC

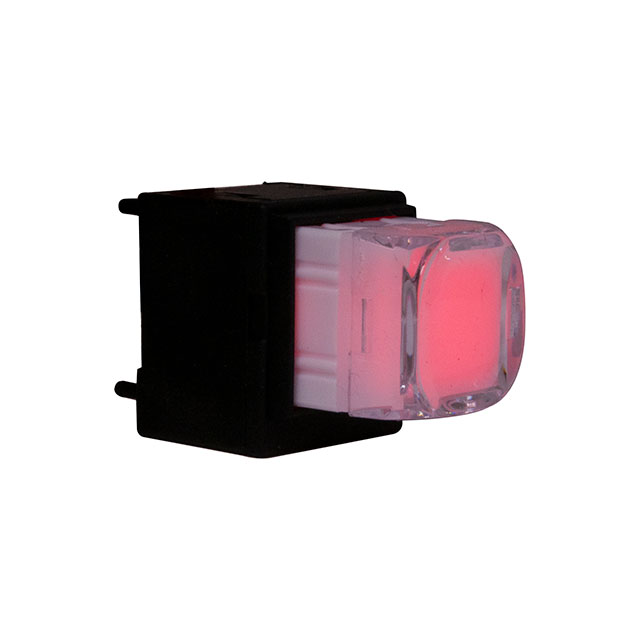

E-Switch LP11OA1NASRY	1000000 Cycles	1000000 Cycles	2.2 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	LED Red Yellow	Illuminated Standard
E-Switch LP11OA1NCSBB	1000000 Cycles	1000000 Cycles	3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Blue/Blue LED	Illuminated Standard
E-Switch LP11OA1TASRB	1000000 Cycles	1000000 Cycles	2.2 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Blue LED Red	Illuminated Standard	Tactile Feedback
E-Switch LP11OA1NBSBW	1000000 Cycles	1000000 Cycles	3.3 VDC 3.5 VDC	Through Hole	PC Pin	No Marking	100 mA	SPST-NO	Button Square	Off-Mom	-20 ░C	70 °C	Clear	12 V	Blue/White LED	Illuminated Standard
