T 3327 Series

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Primary Material	Contact Finish - Mating	Number of Positions	Ingress Protection	Mounting Type	Orientation	Shell Material	Fastening Type	Voltage Rating	Current Rating (Amps)	Type	Contact Size	Shielding	Contact Shape	Mounting Feature	Contact Type	Insert Material	Material Flammability Rating	Housing Color	Note	Color	Shell Finish
Amphenol Tuchel Industrial T 3327 018	M16-4	-40 C	100 °C	Receptacle Female Sockets	Plastic	Gold	4	IP40	Panel Mount	Keyed	Plastic	Bayonet Lock	250 V	10 A

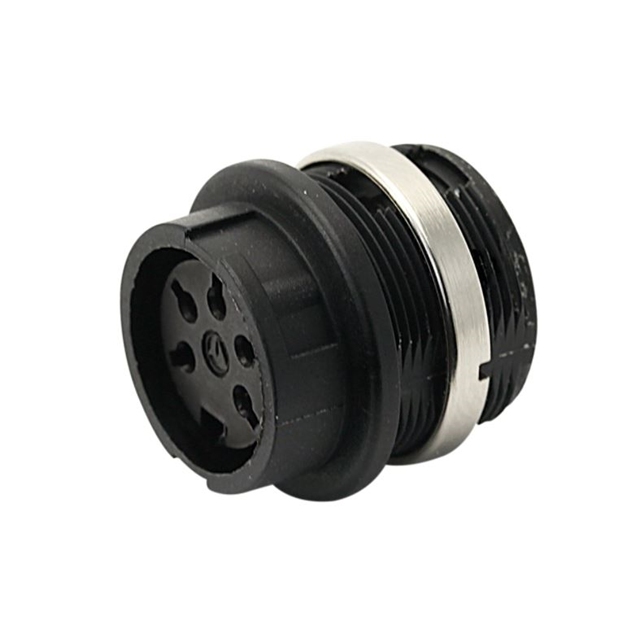

Amphenol Tuchel Industrial T 3327 050	M16-4	-40 C	100 °C	Receptacle Housing			4	IP40	Panel Mount	Keyed	Plastic	Bayonet Lock			For Female Sockets	1.5 mm	Unshielded	Circular	Bulkhead - Rear Side Nut	Crimp	Thermoplastic	UL94 V-0	Black	Contacts Not Included
Amphenol Tuchel Industrial T 3327 550	M16-4	-40 C	100 °C	Receptacle Housing			4	IP40	Panel Mount Snap-In	Keyed	Plastic	Bayonet Lock			For Female Sockets	1.5 mm	Unshielded	Circular		Crimp	Thermoplastic	UL94 V-0	Black	Contacts Not Included

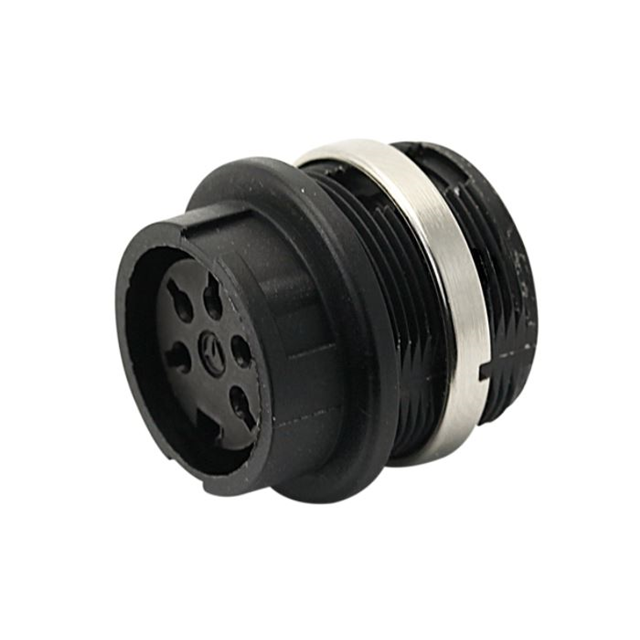

Amphenol Tuchel Industrial T 3327 000	M16-4	-40 C	100 °C	Receptacle Female Sockets	Plastic	Silver	4	IP40	Panel Mount	Keyed	Plastic	Bayonet Lock	250 V	10 A
Amphenol Tuchel Industrial T 3327 100	M16-4	-40 C	100 °C	Receptacle Female Sockets	Metal	Silver	4	IP40	Panel Mount	Keyed	Die Cast	Bayonet Lock	250 V	10 A											Silver	Nickel

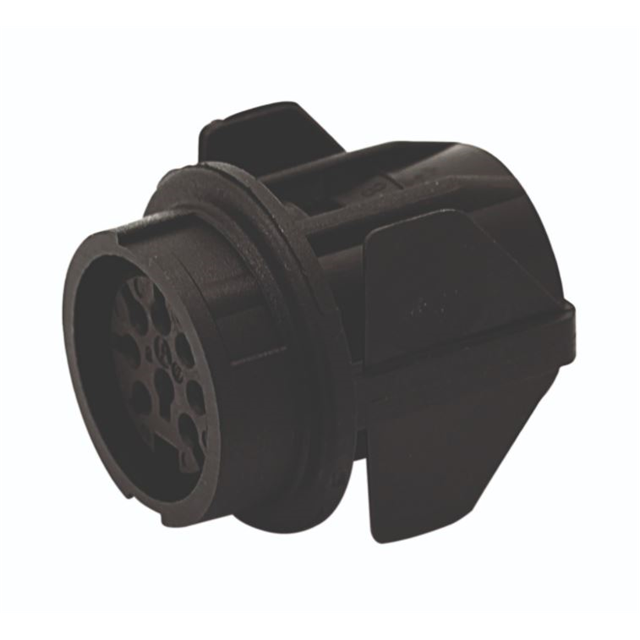

Amphenol Tuchel Industrial T 3327 500	M16-4	-40 C	100 °C	Receptacle Female Sockets	Plastic	Silver	4	IP40	Panel Mount Snap-In	Keyed	Plastic	Bayonet Lock	250 V	10 A
