6304FE Series
Manufacturer: Belden Inc.
Beta
⌘K

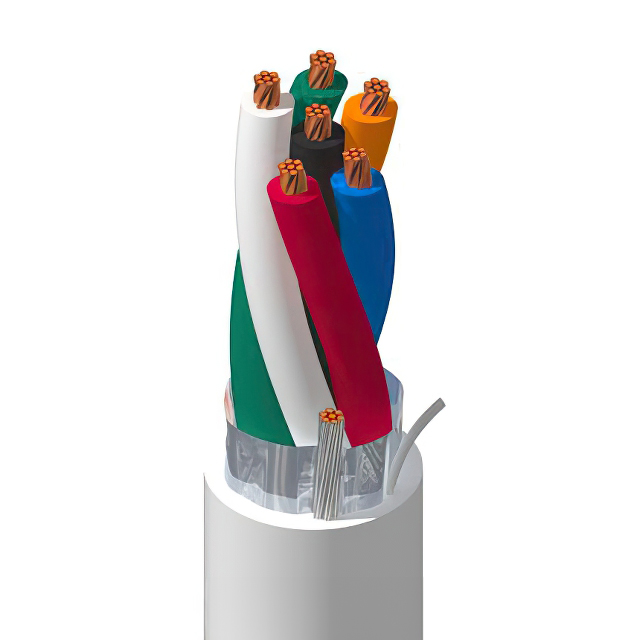

CABLE 6COND 18AWG VIO SHLD
| Part | Shield Coverage | Shield Material | Length | Length | Ratings | Conductor Material | Wire Gauge | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Cable Type | Voltage | Usage | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 304.8 m | 1000 ft | UL Style CMP | Copper Bare | 18 AWG | Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Drain Wire Rip Cord | 26 AWG | 7 | 5.74 mm | 0.226 in | Violet | 6 | Multi-Conductor | 300 VDC | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
 Belden Inc. | 100 % | Aluminum | 152.4 m | 500 ft | UL Style CMP | Copper Bare | 18 AWG | Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Drain Wire Rip Cord | 26 AWG | 7 | 5.74 mm | 0.226 in | Natural | 6 | Multi-Conductor | 300 VDC | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
