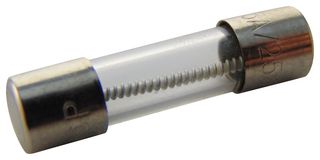

FUSE 5x20 PGT SLO-BLO LBC 2.5A/250V (P)
Description
AI
5x20mm time-Lag glass body cartridge fuse designed to JL specification.
Beta
⌘K
FUSE 5x20 PGT SLO-BLO LBC 2.5A/250V (P)
FUSE 5x20 PGT SLO-BLO LBC 2.5A/250V (P)
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Mounting Type | Approval Agency | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] | Melting I²t | Response Time | Current Rating (Amps) | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | Through Hole | CE CSA KC PSE UL | 250 V | 20 mm | Axial | 5 mm | 79.705 | Slow Blow | 2.5 A | Cartridge Glass | -55 C | 125 °C | 100 A | |
 LITTELFUSE | 20 mm | 5.2 mm | 0.205 in | 0.787 " | Requires Holder | CE CSA KC PSE UL | 250 V | 20 mm | 5 mm | 79.705 | Slow Blow | 2.5 A | Cartridge Glass | -55 C | 125 °C | 100 A | 0.0583 Ohms | |
 LITTELFUSE | 21.5 mm | 5.5 mm | 0.217 in | 0.846 in | Through Hole | CE CSA KC PSE UL | 250 V | 20 mm | Axial | 5 mm | 79.705 | Slow Blow | 2.5 A | Cartridge Glass | -55 C | 125 °C | 100 A | |
 LITTELFUSE | 20 mm | 5.2 mm | 0.205 in | 0.787 " | Requires Holder | CE CSA KC PSE UL | 250 V | 20 mm | 5 mm | 79.705 | Slow Blow | 2.5 A | Cartridge Glass | -55 C | 125 °C | 100 A | ||
 LITTELFUSE | 21.5 mm | 5.5 mm | 0.217 in | 0.846 in | Through Hole | CE CSA KC PSE UL | 250 V | 20 mm | Axial | 5 mm | 79.705 | Slow Blow | 2.5 A | Cartridge Glass | -55 C | 125 °C | 100 A |
