NPPC331 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

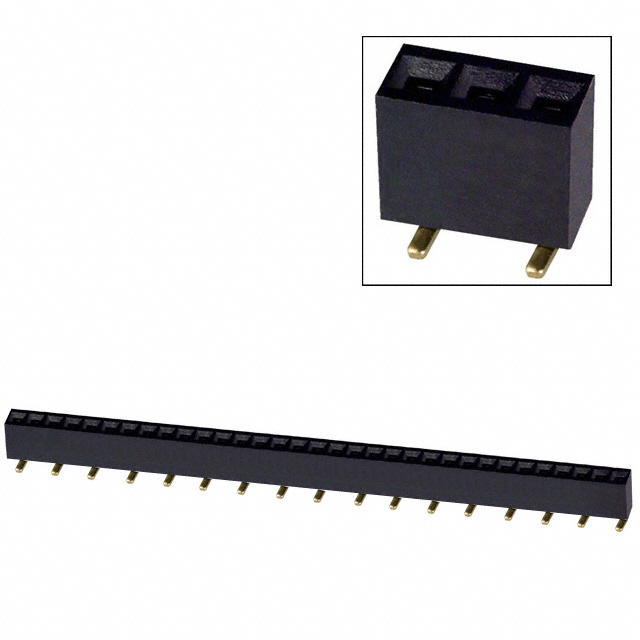

CONN HDR 33POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Material | Contact Shape | Voltage Rating | Insulation Height | Insulation Height | Current Rating (Amps) | Termination | Number of Positions [custom] | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Insulation Color | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Type | Mounting Type | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Flash | Phosphor Bronze | Square | 250 V | 0.335 " | 8.51 mm | 3 A | Solder | 33 | Header | 0.126 " | 3.2 mm | All | Black | Flash | 1 | Gold | UL94 V-0 | -40 C | 105 ░C | 0.1 " | 2.54 mm | Female Socket | Through Hole | Push-Pull | Gold |
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Flash | Phosphor Bronze | Square | 250 V | 0.28 in | 7.1 mm | 3 A | Solder | 33 | Header Top or Bottom Entry | All | Black | Flash | 1 | Gold | UL94 V-0 | -40 C | 105 ░C | 0.1 " | 2.54 mm | Female Socket | Surface Mount | Push-Pull | Gold |
