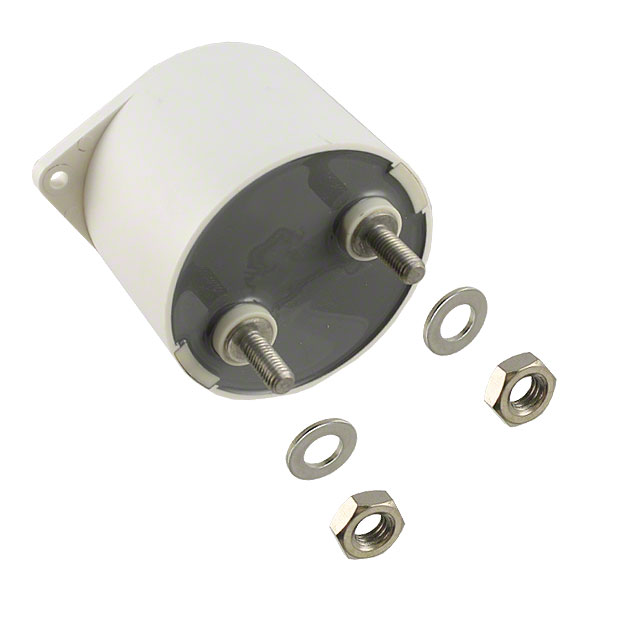

C4DENP Series
Manufacturer: KEMET
Beta
⌘K
CAP FILM 47UF 10% 1KVDC RADIAL
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Termination | Voltage Rating - DC | Voltage Rating - DC | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [z] | Package / Case | Applications | ESR (Equivalent Series Resistance) | Features | Mounting Type | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 3.307 in | 84 mm | Threaded Male | 1 kV | 1 kVDC | 10 % | 85 °C | -40 C | 47 µF | 2.598 in | 66 mm | Can Radial | DC Filtering DC Link | 0.8 mOhms | Low ESL | Chassis Mount | Polypropylene (PP) Metallized |
 KEMET | 3.307 in | 84 mm | Threaded Male | 1 kV | 1 kVDC | 10 % | 85 °C | -40 C | 68 µF | 2.598 in | 66 mm | Can Radial | DC Filtering DC Link | 1.1 mOhms | Low ESL | Chassis Mount | Polypropylene (PP) Metallized |
KEMET | 3.307 in | 84 mm | Threaded Male | 1 kV | 1 kVDC | 10 % | 85 °C | -40 C | 100 µF | 2.598 in | 66 mm | Can Radial | DC Filtering DC Link | 1.3 mOhm | Low ESL | Chassis Mount | Polypropylene (PP) Metallized |
