OSTOQ05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

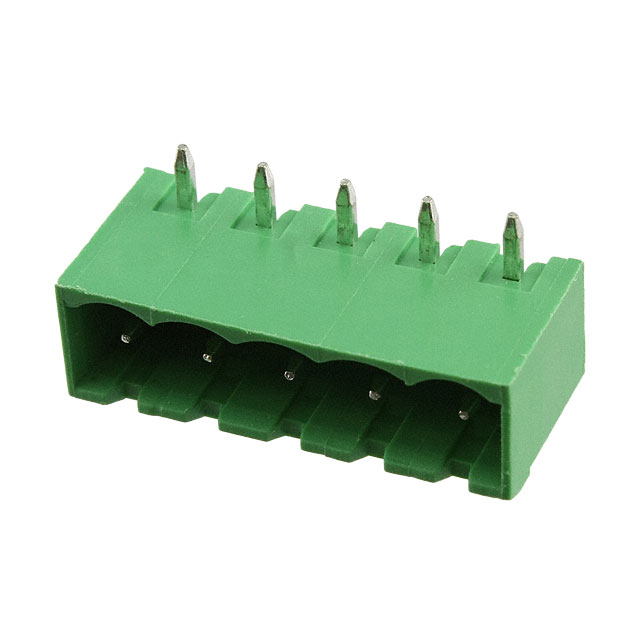

TERM BLOCK HDR 5POS 90DEG 5.08MM
| Part | Housing Material | Contact Tail Length | Contact Tail Length | Mounting Type | Insulation Height [z] | Insulation Height [z] | Type | Number of Levels | Operating Temperature [Max] | Operating Temperature [Min] | Header Orientation | Voltage - UL | Termination Style | Pitch | Pitch | Contact Mating Finish | Number of Positions | Positions Per Level | Contact Material | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | 0.157 in | 4 mm | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 115 °C | -40 C | 90° Right Angle | 300 V | Solder | 5.08 mm | 0.2 in | Tin | 5 | 5 | |||

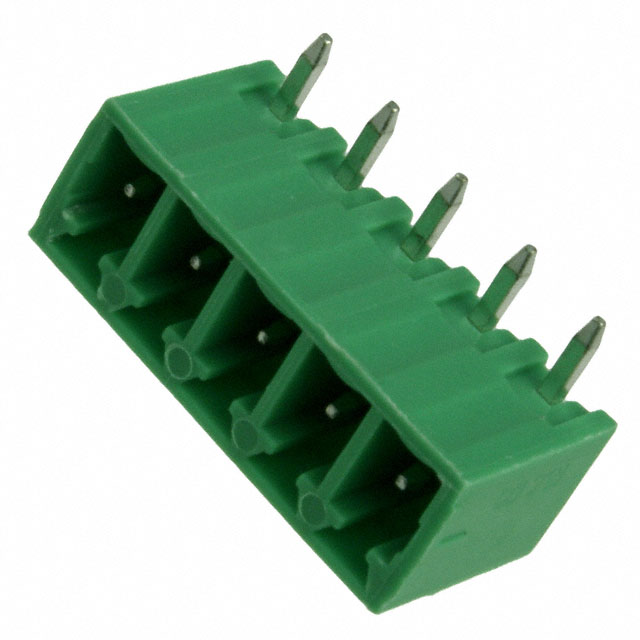

 On Shore Technology Inc. | Thermoplastic | 0.138 in | 3.5 mm | Solder Through Hole | 3.5 mm | 0.138 " | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | 90° Right Angle | 300 V | Solder | 3.81 mm | 0.15 in | Tin | 5 | 5 | Brass | ||

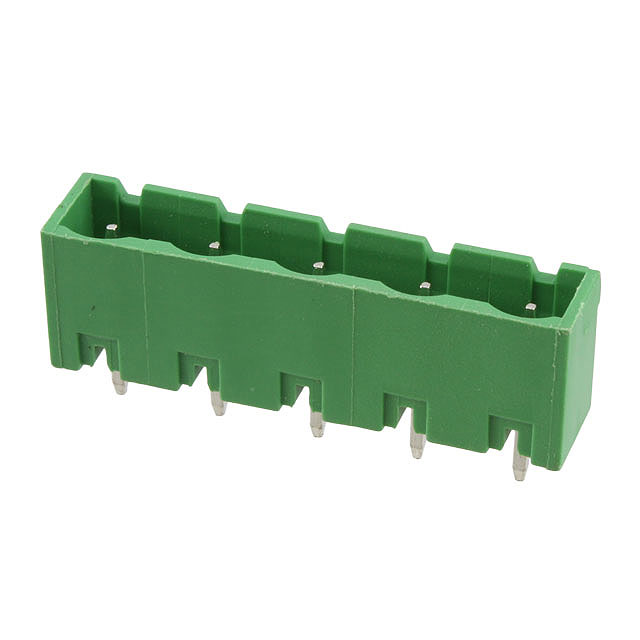

 On Shore Technology Inc. | Thermoplastic | 0.157 in | 4 mm | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | Vertical | 300 V | Solder | 7.62 mm | 0.3 in | Tin | 5 | 5 | Brass | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | Thermoplastic | 0.157 in | 4 mm | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | Vertical | 300 V | Solder | 5 mm | 0.197 in | Tin | 5 | 5 | Brass | UL94 V-0 | Mating Flange |
 On Shore Technology Inc. | Thermoplastic | 0.138 in | 3.5 mm | Solder Through Hole | 3.5 mm | 0.138 " | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | 90° Right Angle | 300 V | Solder | 3.5 mm | 0.138 " | Tin | 5 | 5 | Brass | ||
 On Shore Technology Inc. | Thermoplastic | 0.157 in | 4 mm | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 115 °C | -40 C | 90° Right Angle | 300 V | Solder | 5 mm | 0.197 in | Tin | 5 | 5 | Brass | ||
On Shore Technology Inc. | Thermoplastic | 0.138 in | 3.5 mm | Solder Through Hole | 3.5 mm | 0.138 " | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | 90° Right Angle | 300 V | Solder | 3.5 mm | 0.138 " | Tin | 5 | 5 | Brass | UL94 V-0 | Mating Flange |
On Shore Technology Inc. | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 115 °C | -40 C | 90° Right Angle | 300 V | Solder | 5.08 mm | 0.2 in | Tin | 5 | 5 | ||||||
On Shore Technology Inc. | Thermoplastic | 0.138 in | 3.5 mm | Solder Through Hole | 3.5 mm | 0.138 " | Header Male Pins Shrouded (4 Side) | 1 | 115 °C | -40 C | 90° Right Angle | 300 V | Solder | 5.08 mm | 0.2 in | Tin | 5 | 5 | |||
 On Shore Technology Inc. | Thermoplastic | 0.157 in | 4 mm | Solder Through Hole | 4 mm | 0.157 in | Header Male Pins Shrouded (4 Side) | 1 | 105 ░C | -30 ░C | Vertical | 300 V | Solder | 7.62 mm | 0.3 in | Tin | 5 | 5 | Brass |
