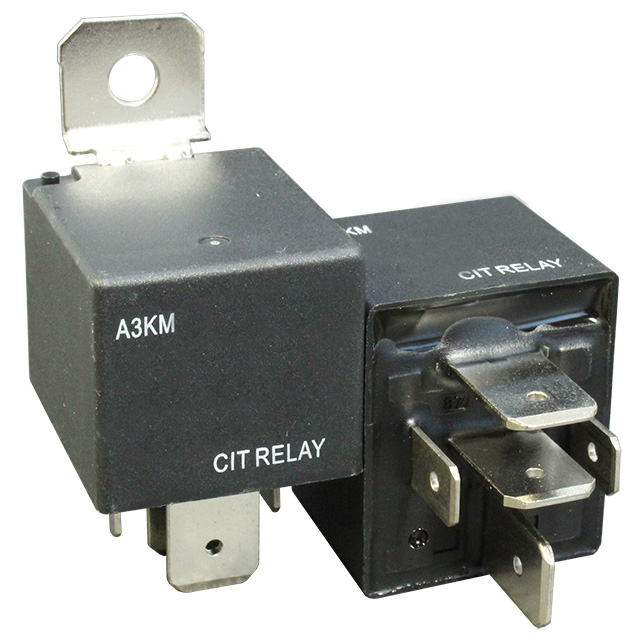

A3KM1 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 150A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Features | Release Time | Must Release Voltage | Contact Rating (Current) | Contact Form | Coil Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Current | Operate Time | Termination Style | Switching Voltage [Max] | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | Magnetic Blowout Resistor Sealed - Fully | 15 ms | 1.2 VDC | 80 A | SPDT (1 Form C) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | PC Pin | 145 VDC | 7.8 VDC |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | Magnetic Blowout Resistor Sealed - Fully | 15 ms | 1.2 VDC | 80 A | SPDT (1 Form C) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | 7.8 VDC |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 360 Ohms | 1.6 W | Magnetic Blowout Sealed - Fully | 15 ms | 2.4 VDC | 80 A | SPST-NO (1 Form A) | 24 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 66.7 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | 15 ms | 1.2 VDC | 80 A | SPST-NO (1 Form A) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | PC Pin | 145 VDC | 7.8 VDC | |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 360 Ohms | 1.6 W | Magnetic Blowout Resistor Sealed - Fully | 15 ms | 2.4 VDC | 80 A | SPDT (1 Form C) | 24 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 66.7 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | Magnetic Blowout Sealed - Fully | 15 ms | 1.2 VDC | 80 A | SPDT (1 Form C) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | 7.8 VDC |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 360 Ohms | 1.6 W | Magnetic Blowout | 15 ms | 2.4 VDC | 80 A | SPDT (1 Form C) | 24 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 66.7 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | 15 ms | 1.2 VDC | 80 A | SPST-NO (1 Form A) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | 7.8 VDC | |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | Magnetic Blowout | 15 ms | 1.2 VDC | 80 A | SPST-NO (1 Form A) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | 7.8 VDC |
CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 90 Ohms | 1.6 W | 15 ms | 1.2 VDC | 80 A | SPDT (1 Form C) | 12 VDC | Chassis Mount | 125 °C | -40 C | Non Latching | 133.3 mA | 15 ms | Quick Connect - Multiple Sizes | 145 VDC | 7.8 VDC |
