831860 Series
Manufacturer: Crouzet
Beta
⌘K

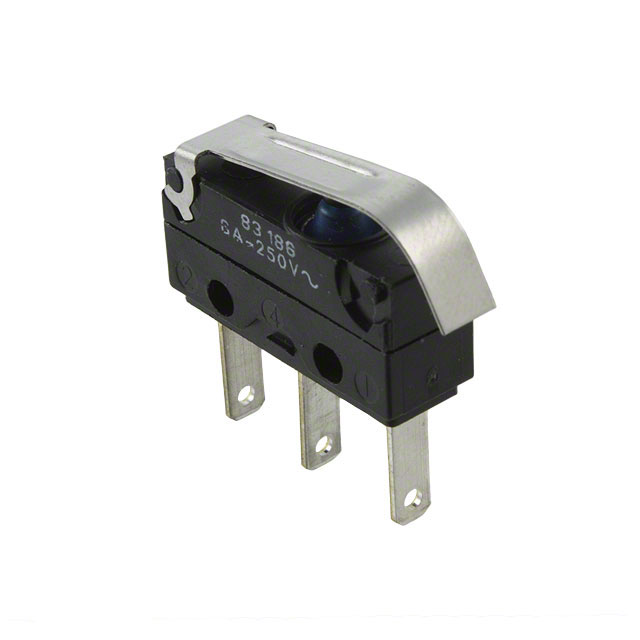

SWITCH SNAP ACTION SPDT 6A 250V
| Part | Operating Position | Operating Position | Mounting Type | Overtravel [custom] | Overtravel [custom] | Release Force | Current Rating (Amps) | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Differential Travel | Differential Travel | Ingress Protection | Actuator Type | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Operating Force | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crouzet | 11.1 mm | 0.437 " | Chassis Mount | 2.4 mm | 0.094 " | 20 gf | 6 A | 24 V | 250 V | On-Mom | 0.016 in | 0.4 mm | IP67 - Dust Tight Waterproof | Lever Straight | 2000000 Cycles | 125 °C | -40 C | Quick Connect - 0.110" (2.8mm) | 64 gf | SPDT |
