PRQ100W Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 100W

Part	Mounting Type	Package / Case	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Supplier Device Package	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)

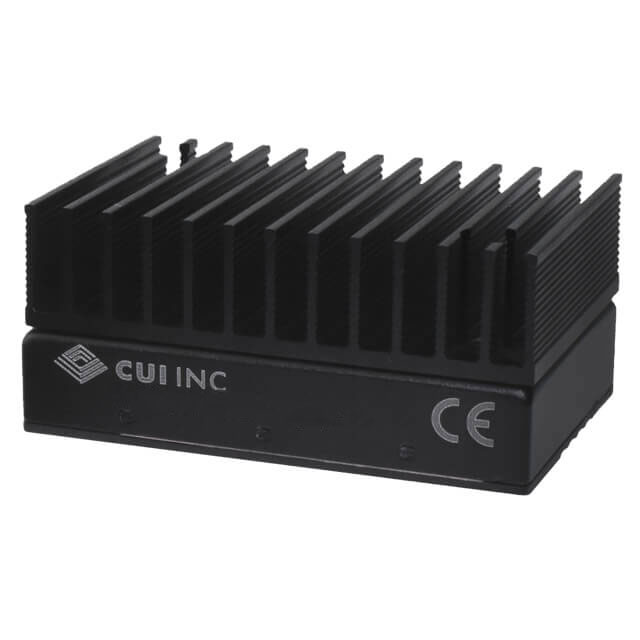

CUI Inc. PRQ100W-Q48-S12-H-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	8.3 A	12 V	ITE (Commercial)	75 V	Quarter Brick	CE	Heat Sink	40.2 mm	1.09 "	27.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	100 W

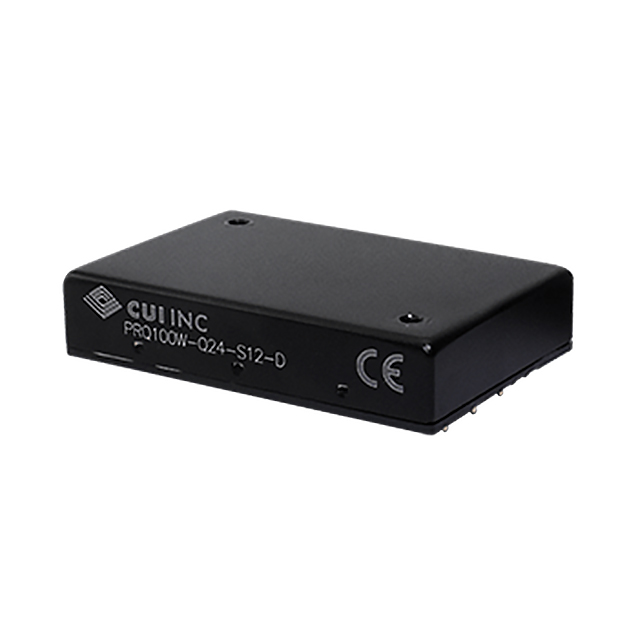

CUI Inc. PRQ100W-Q24-S12-D	Through Hole	Quarter Brick	2250 VDC	9 V	90 %	8.3 A	12 V	ITE (Commercial)	36 V	Quarter Brick	CE		40.2 mm	0.5 in	12.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	100 W
CUI Inc. PRQ100W-Q48-S24-H-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	4.2 A	24 V	ITE (Commercial)	75 V	Quarter Brick	CE	Heat Sink	40.2 mm	1.09 "	27.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
CUI Inc. PRQ100W-Q24-S15-H-D	Through Hole	Quarter Brick	2250 VDC	9 V	90 %	6.7 A	15 V	ITE (Commercial)	36 V	Quarter Brick	CE	Heat Sink	40.2 mm	1.09 "	27.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
CUI Inc. PRQ100W-Q48-S48-H-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	2.1 A	48 V	ITE (Commercial)	75 V	Quarter Brick	CE	Heat Sink	40.2 mm	1.09 "	27.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
CUI Inc. PRQ100W-Q48-S5-H-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	20 A	5 V	ITE (Commercial)	75 V	Quarter Brick	CE	Heat Sink	40.2 mm	1.09 "	27.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	100 W

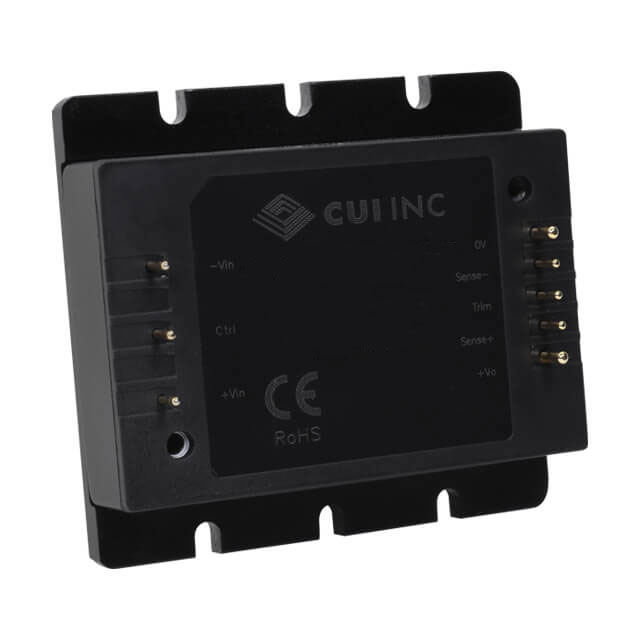

CUI Inc. PRQ100W-Q24-S12-B-D	Through Hole	Quarter Brick	2250 VDC	9 V	90 %	8.3 A	12 V	ITE (Commercial)	36 V	Quarter Brick	CE	Baseplate	56 mm	0.57 "	14.6 mm	2.44 "	2.2 "	62 mm	Isolated Module	-40 °C	85 °C	1	100 W
CUI Inc. PRQ100W-Q24-S15-D	Through Hole	Quarter Brick	2250 VDC	9 V	90 %	6.7 A	15 V	ITE (Commercial)	36 V	Quarter Brick	CE		40.2 mm	0.5 in	12.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
CUI Inc. PRQ100W-Q48-S24-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	4.2 A	24 V	ITE (Commercial)	75 V	Quarter Brick	CE		40.2 mm	0.5 in	12.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
CUI Inc. PRQ100W-Q48-S48-D	Through Hole	Quarter Brick	2250 VDC	18 V	93 %	2.1 A	48 V	ITE (Commercial)	75 V	Quarter Brick	CE		40.2 mm	0.5 in	12.7 mm	2.43 in	1.58 "	61.8 mm	Isolated Module	-40 °C	85 °C	1	101 W
