7406-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .037-.043 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]

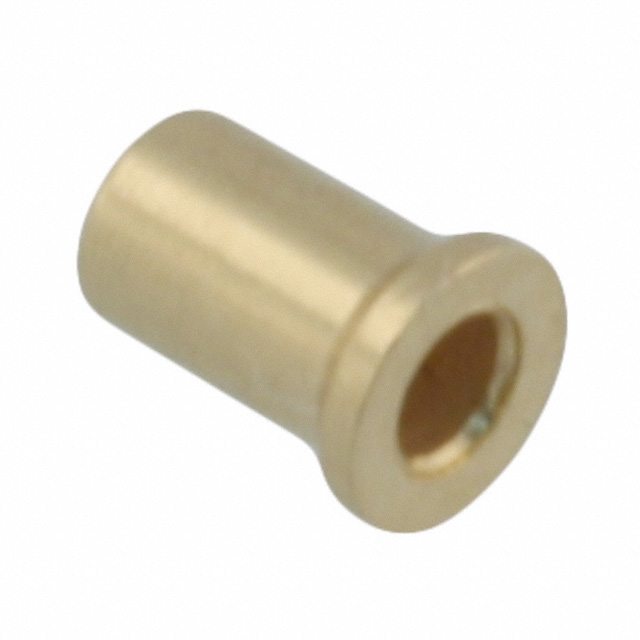

Mill-Max Manufacturing Corp. 7406-0-15-15-18-27-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	30 Áin	0.76 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "

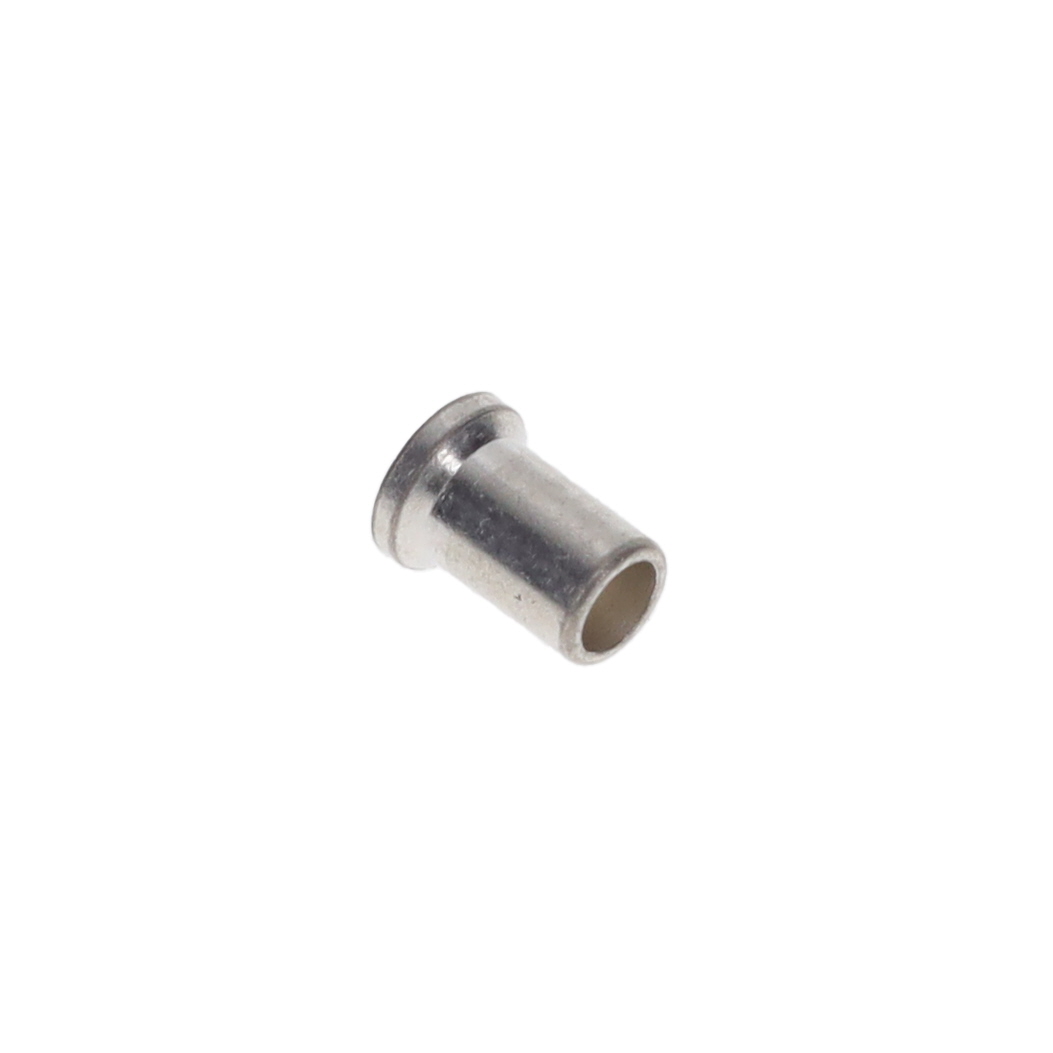

Mill-Max Manufacturing Corp. 7406-0-15-80-18-14-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	10 Áin	0.25 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "

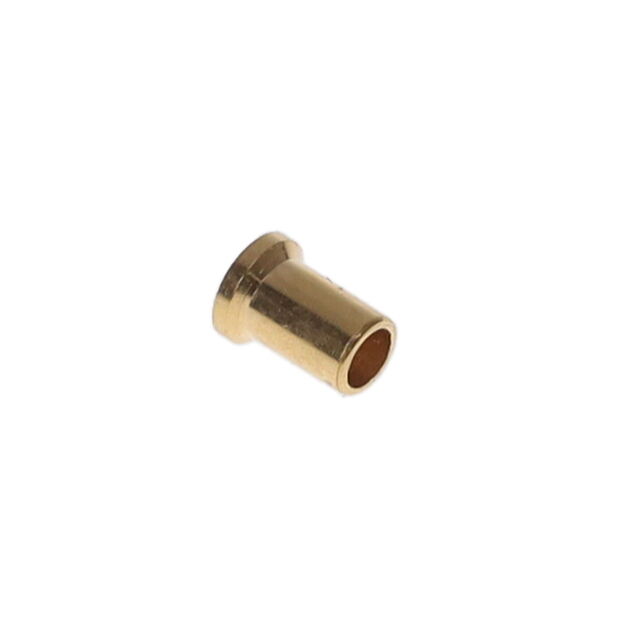

Mill-Max Manufacturing Corp. 7406-0-15-15-18-14-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	10 Áin	0.25 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 7406-0-15-80-18-80-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Tin	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	200 Áin	5.08 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 7406-0-15-80-18-27-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	30 Áin	0.76 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "

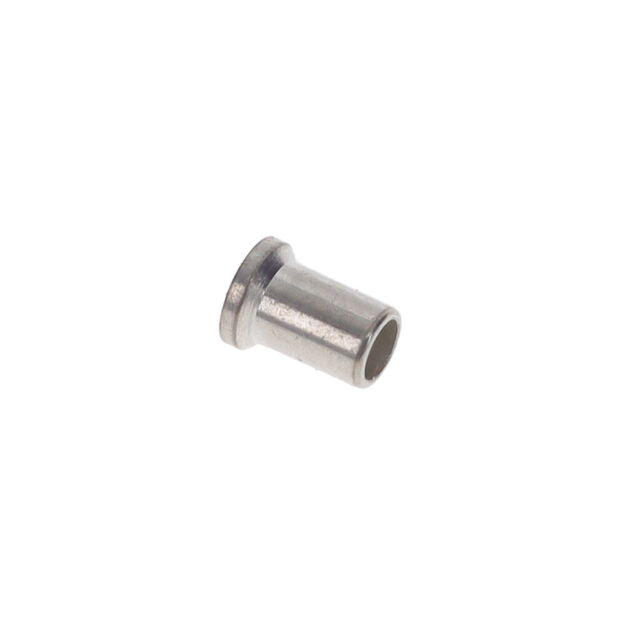

Mill-Max Manufacturing Corp. 7406-0-15-01-18-01-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in		1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	30 Áin	0.76 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 7406-0-15-01-18-27-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	30 Áin	0.76 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "
Mill-Max Manufacturing Corp. 7406-0-15-01-18-14-10-0	-55 C	125 °C	No Tail	0.12 in	3.05 mm	3.05 mm	0.12 in	Gold	1.8 mm	0.071 in	1.37 mm	0.054 in	Beryllium Copper	10 Áin	0.25 Ám	Solder	0.043 in	1.09 mm	0.94 mm	0.037 in	2.31 mm	0.091 "
