746-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 35POS 0.125

Part	Termination Rows	Material - Insulation	Color	Number of Positions	Contact Material	Contact Finish	Number of Positions/Bay/Row	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Gender	Read Out	Pitch	Pitch	Contact Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination
EDAC Inc. 746-035-541-101	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-541-106	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-540-501	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-545-106	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-520-506	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit
EDAC Inc. 746-035-541-506	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-540-101	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap
EDAC Inc. 746-035-553-106	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit Wire Wrap

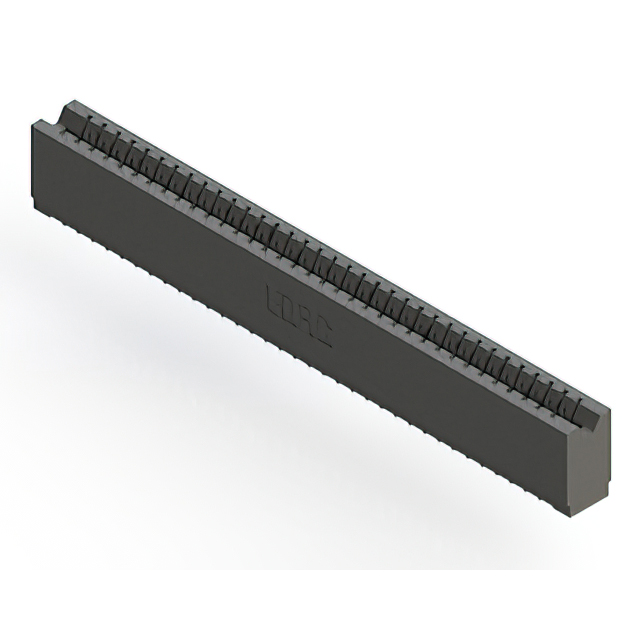

EDAC Inc. 746-035-520-106	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit
EDAC Inc. 746-035-520-101	1	Polyester Thermoplastic	Black	35	Copper Alloy	Gold	35	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	Single	3.18 mm	0.125 in	Cantilever	Non Specified - Single Edge	30 Áin	0.76 Ám	-40 C	105 ░C	Press-Fit
