6369 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

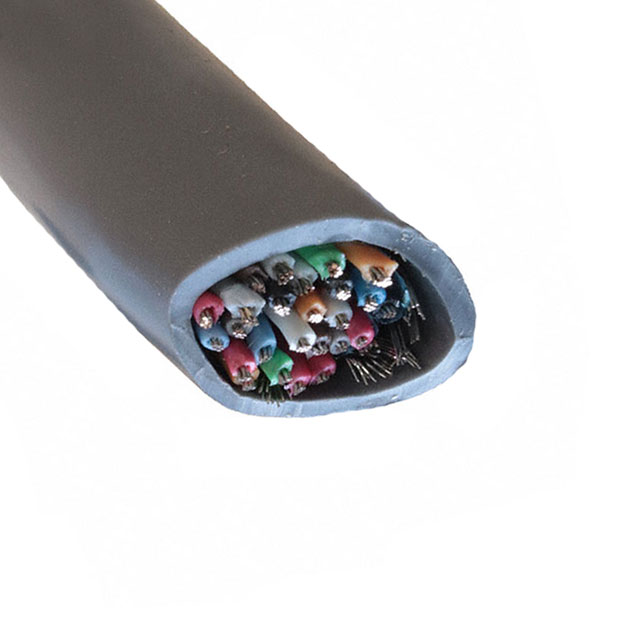

MULTI-PAIR 25COND 24AWG 100'
| Part | Shield Material | Shield Coverage | Conductor Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Voltage | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Cable Type | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Drain Wire | 7 | 32 AWG | 25 | 300 VDC | Slate | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 24 AWG | Braid Foil | 0.389 in | 9.88 mm | UL Style 2464 | Multi-Pair | 100 ft | 30.5 m | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Drain Wire | 7 | 32 AWG | 25 | 300 VDC | Slate | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 24 AWG | Braid Foil | 0.389 in | 9.88 mm | UL Style 2464 | Multi-Pair | 304.8 m | 1000 ft |
