MK22FN512 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC MCU 32BIT 512KB FLASH 64QFP

Part	Program Memory Type	Package / Case	Core Size	RAM Size	Speed	Data Converters	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Supplier Device Package	Oscillator Type	Core Processor	Mounting Type	Connectivity	Supplier Device Package [x]	Supplier Device Package [y]	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]
Freescale Semiconductor - NXP MK22FN512VLH12R	FLASH	64-LQFP	32-Bit Single-Core	128 K	120 MHz	A/D 22x16b D/A 2x12b	512 KB	105 °C	-40 °C	3.6 V	1.71 V	40	64-LQFP (10x10)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG

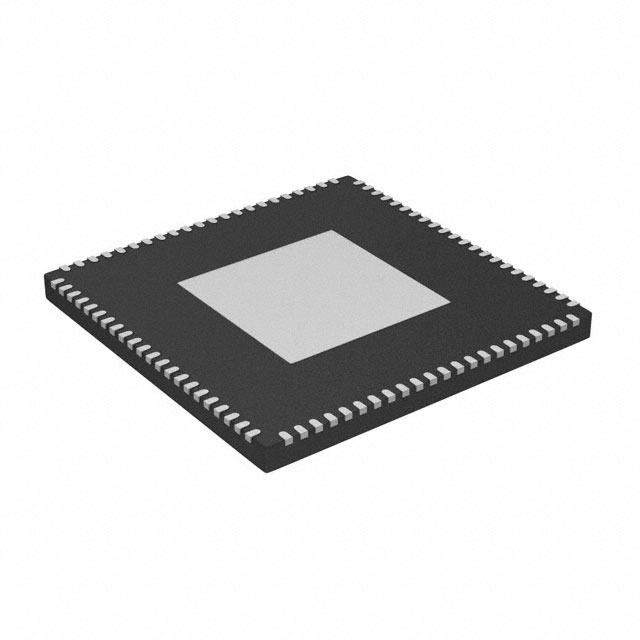

Freescale Semiconductor - NXP MK22FN512VFX12	FLASH	88-VFQFN Exposed Pad	32-Bit Single-Core	128 K	120 MHz	A/D 2x16b D/A 1x12b	512 KB	105 °C	-40 °C	3.6 V	1.71 V	60	88-QFN (10x10)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG

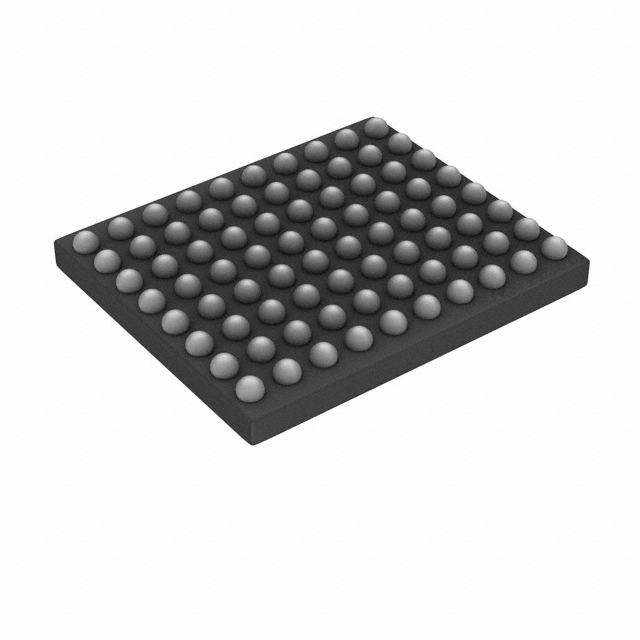

Freescale Semiconductor - NXP MK22FN512CAP12R	FLASH	80-UFBGA WLCSP	32-Bit Single-Core	128 K	120 MHz	A/D 2x16b D/A 2x12b	512 KB	85 °C	-40 °C	3.6 V	1.71 V	52	80-WLCSP	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG	4.13	3.56
Freescale Semiconductor - NXP MK22FN512VMP12	FLASH	64-LFBGA	32-Bit Single-Core	128 K	120 MHz	A/D 22x16b D/A 2x12b	512 KB	105 °C	-40 °C	3.6 V	1.71 V	40	64-MAPBGA (5x5)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG
Freescale Semiconductor - NXP MK22FN512VLL12	FLASH	100-LQFP	32-Bit Single-Core	128 K	120 MHz		512 KB	105 °C	-40 °C	3.6 V	1.71 V	66 I/O	100-LQFP (14x14)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG			2 33	12 16
Freescale Semiconductor - NXP MK22FN512VFX12R	FLASH	88-VFQFN Exposed Pad	32-Bit Single-Core	128 K	120 MHz	A/D 2x16b D/A 1x12b	512 KB	105 °C	-40 °C	3.6 V	1.71 V	60	88-QFN (10x10)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG
Freescale Semiconductor - NXP MK22FN512VDC12R	FLASH	121-XFBGA	32-Bit Single-Core	128 K	120 MHz		512 KB	105 °C	-40 °C	3.6 V	1.71 V	81	121-XFBGA (8x8)	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG					38x16b	2x12b
Freescale Semiconductor - NXP MK22FN512CBP12R	FLASH	80-XFBGA WLCSP	32-Bit Single-Core	128 K	120 MHz	A/D 2x16b D/A 2x12b	512 KB	85 °C	-40 °C	3.6 V	1.71 V	52	80-WLCSP	Internal	ARM® Cortex®-M4	Surface Mount	I2C IrDA SPI UART/USART USB USB OTG	4.13	3.56
