2823405 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,MTE HDR,SRRT,2.8,0.76AU,T

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Post	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material	Shrouding	Contact Material	Current Rating (Amps)	Number of Positions Loaded	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Number of Rows	Mounting Type	Fastening Type	Style	Voltage Rating	Insulation Height	Insulation Height
TE Connectivity Raychem Cable Protection 2823405-4	30 Áin	0.76 Ám	0.157 in	4 mm	Tin	4	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Cable/Wire	125 VAC
TE Connectivity Raychem Cable Protection 2823405-7	30 Áin	0.76 Ám			Tin	7	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Board Cable	125 VAC	0.303 in	7.7 mm

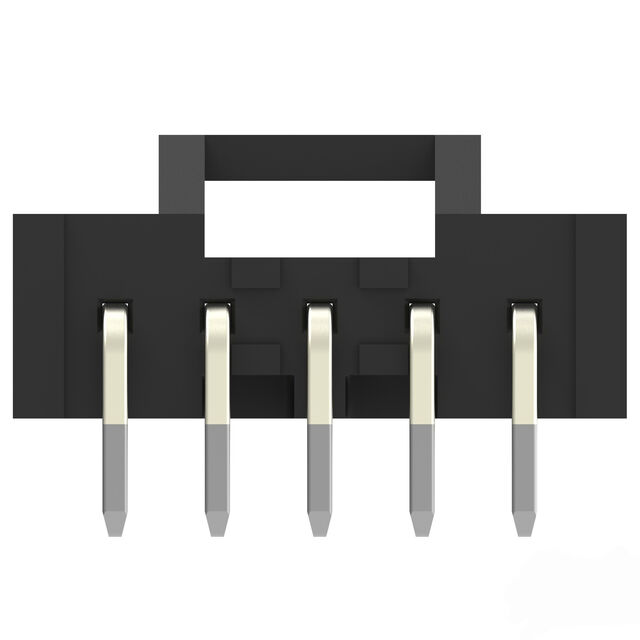

TE Connectivity Raychem Cable Protection 2823405-5	30 Áin	0.76 Ám	0.157 in	4 mm	Tin		0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Cable/Wire	125 VAC

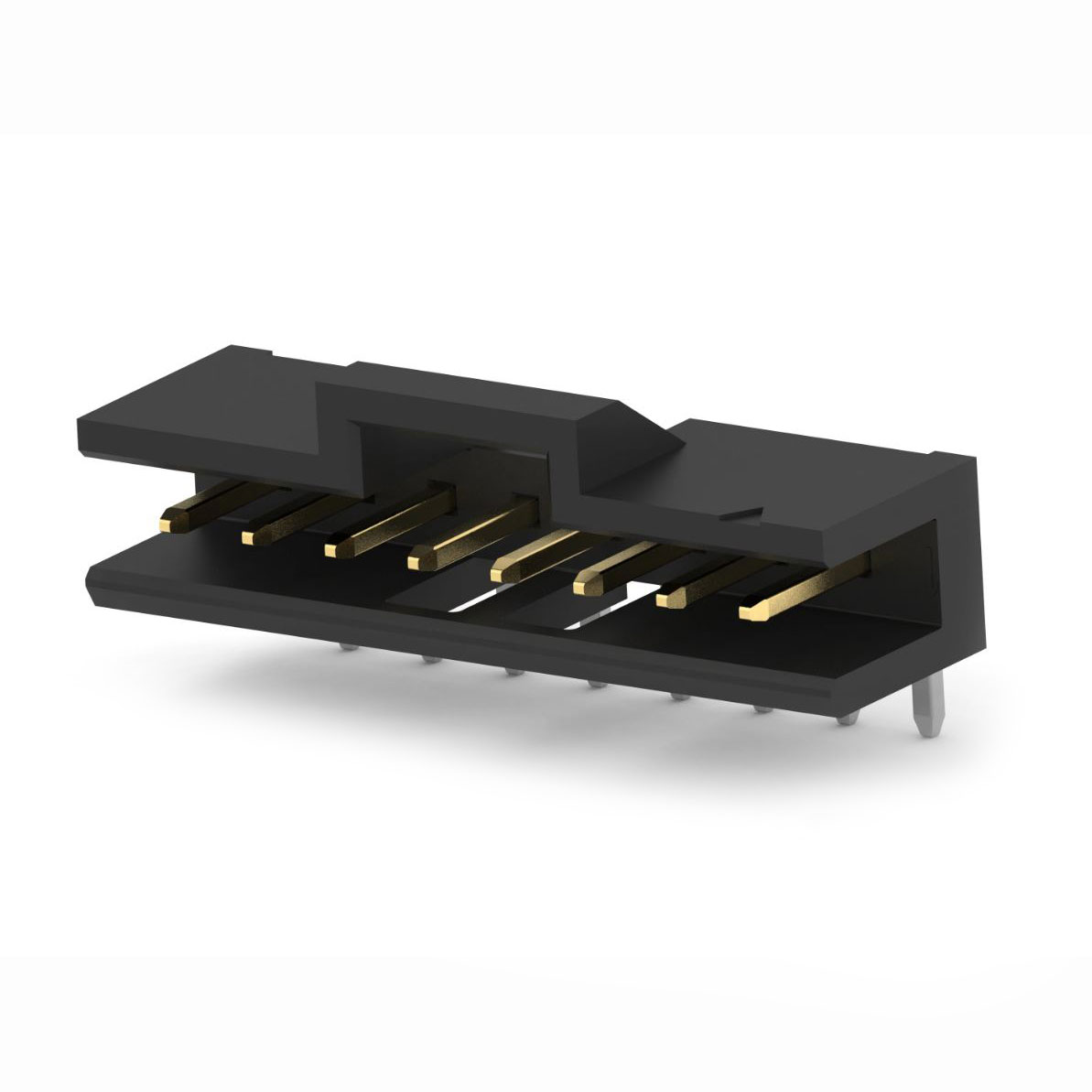

TE Connectivity Raychem Cable Protection 1-2823405-1	30 Áin	0.76 Ám			Tin	11	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Board Cable	125 VAC	0.303 in	7.7 mm

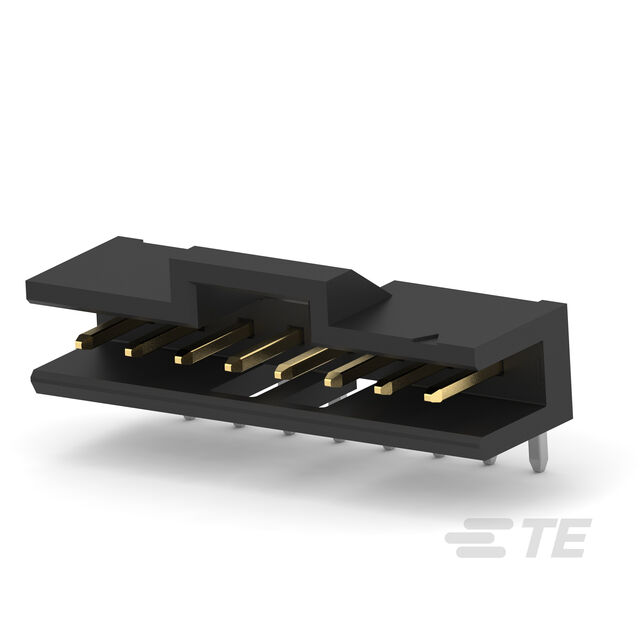

TE Connectivity Raychem Cable Protection 2823405-9	30 Áin	0.76 Ám			Tin	9	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Board Cable	125 VAC	0.303 in	7.7 mm

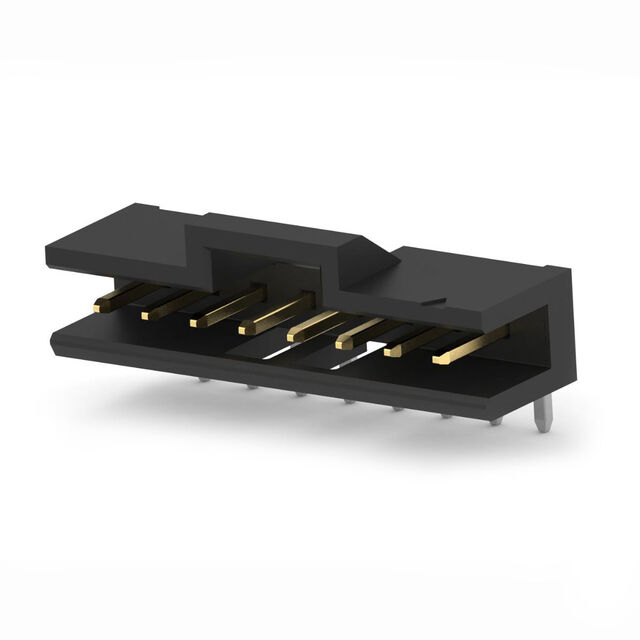

TE Connectivity Raychem Cable Protection 1-2823405-5	30 Áin	0.76 Ám			Tin	15	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Board Cable	125 VAC	0.303 in	7.7 mm

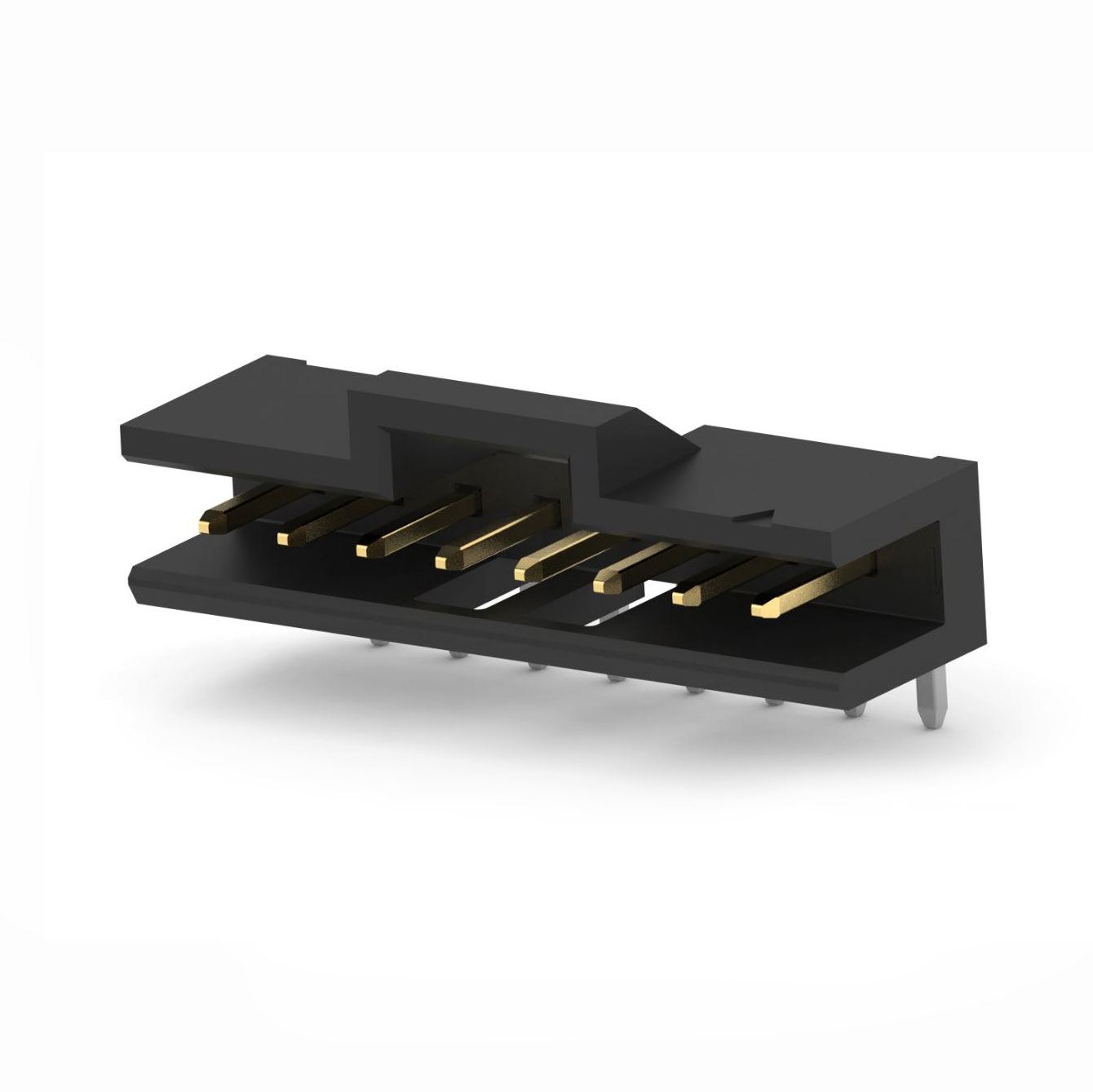

TE Connectivity Raychem Cable Protection 1-2823405-3	30 Áin	0.76 Ám			Tin	13	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Board Cable	125 VAC	0.303 in	7.7 mm

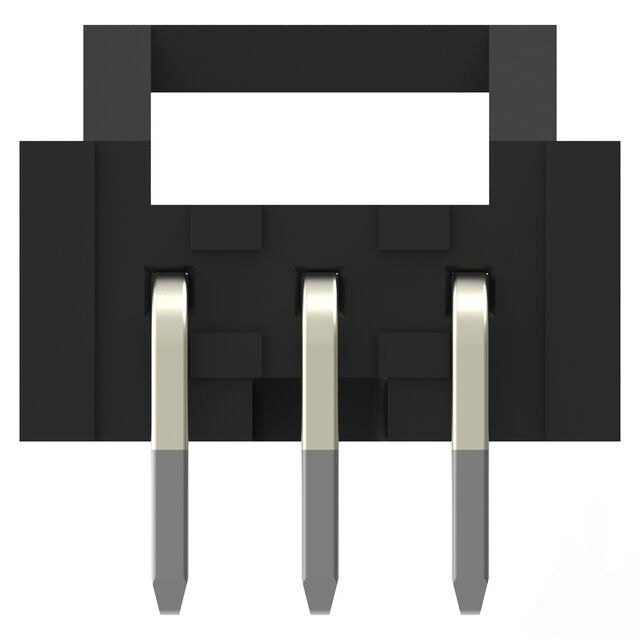

TE Connectivity Raychem Cable Protection 2823405-3	30 Áin	0.76 Ám	0.157 in	4 mm	Tin		0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Cable/Wire	125 VAC
TE Connectivity Raychem Cable Protection 2823405-6	30 Áin	0.76 Ám	0.157 in	4 mm	Tin	6	0.079 in	2 mm	157.5 Áin	4 Ám	Gold	4 mm	0.157 in	Black	Square	125 °C	-40 °C	Male Pin	Thermoplastic	Shrouded - 2 Wall	Phosphor Bronze	2 A	All	Solder	0.11 in	2.8 mm	UL94 V-0	Header	1	Through Hole Right Angle	Latch Holder	Board to Cable/Wire	125 VAC
