A24K1 Series

Catalog

PROCESS SEALED SUBMINIATURE ROCKER

Part	Mechanical Life	Electrical Life	Actuator Type	Mounting Type	Voltage Rating - AC	Switch Function	Approval Agency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Voltage Rating - DC	Actuator Marking	Termination Style	Color - Actuator/Cap
NKK Switches A24K1W	50000 Cycles	50000 Cycles	Actuator Arm Cap Required	Through Hole	28 V	On-On-On	CSA UL	Jumper needed to achieve triple throw	85 °C	-30 ░C	SP3T	0.4 VA	28 V	No Marking	Wire Wrap
NKK Switches A24K1H	50000 Cycles	50000 Cycles	Actuator Arm Cap Required	Right Angle Through Hole	28 V	On-On-On	CSA UL	Jumper needed to achieve triple throw	85 °C	-30 ░C	SP3T	0.4 VA	28 V	No Marking	PC Pin

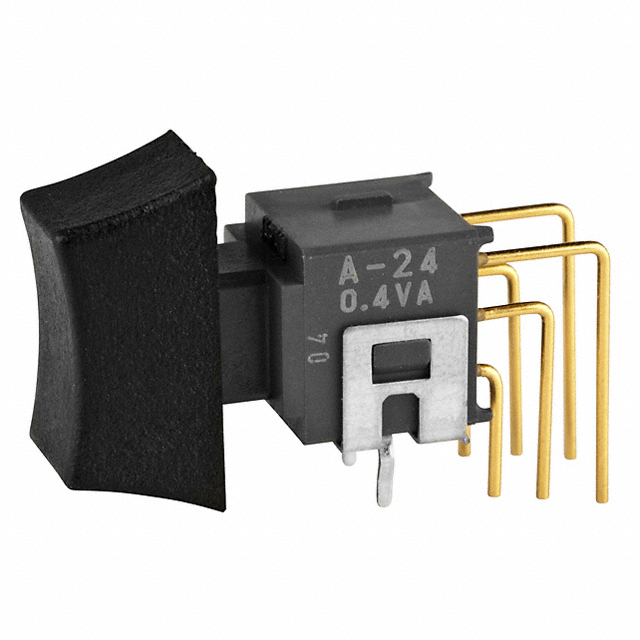

NKK Switches A24K1V-EA	50000 Cycles	50000 Cycles	Concave (Curved)	Right Angle Through Hole Vertical	28 V	On-On-On	CSA UL	Jumper needed to achieve triple throw	85 °C	-30 ░C	SP3T	0.4 VA	28 V	No Marking	PC Pin	Black
NKK Switches A24K1B	50000 Cycles	50000 Cycles	Actuator Arm Cap Required	Through Hole	28 V	On-On-On	CSA UL	Jumper needed to achieve triple throw	85 °C	-30 ░C	SP3T	0.4 VA	28 V	No Marking	PC Pin
