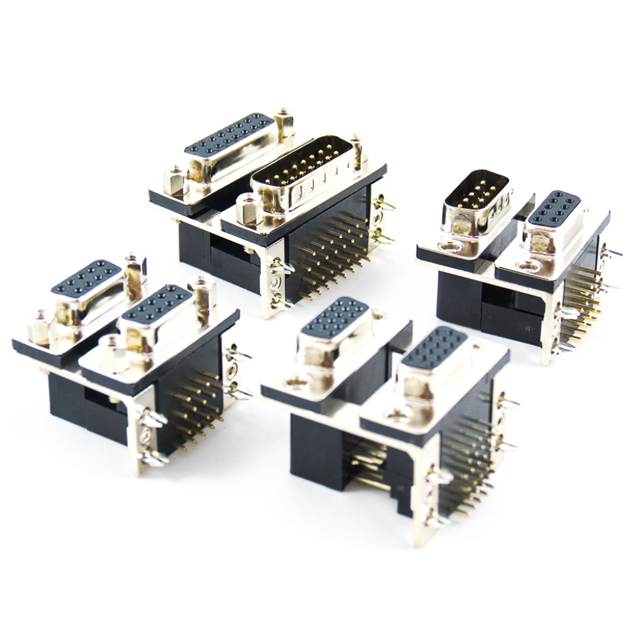

7936-25 Series
Manufacturer: Oupiin
Beta
⌘K
CONN D-SUB PLUG 25POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Shell Material, Finish | Material Flammability Rating | Number of Rows [custom] | Mounting Type | Contact Type | Backset Spacing | Backset Spacing | Flange Feature | Flange Feature | Termination | Connector Style | Contact Finish | Shell Size, Connector Layout | Features | Connector Type | Number of Positions | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | Black | Nickel Plated Steel | UL94 V-0 | 2 | Right Angle Through Hole | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Solder | D-Sub - Stacked | Gold | 3 (DB B) | Board Lock Grounding Indents | Plug Male Pins | 25 | |||
Oupiin | Polybutylene Terephthalate (PBT) | -55 C | 105 ░C | Brass | Black | Nickel Plated Steel | UL94 V-0 | 2 | Right Angle Through Hole | Signal | 8.08 mm | 0.318 " | 4-40 Mating Side Female Screwlock | Solder | D-Sub - Stacked | Gold | 3 (DB B) | Board Lock | Receptacle Female Sockets | 25 | ||||
Oupiin | Polyester Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | Metal | UL94 V-0 | 2 | Right Angle Through Hole | Signal | 8.08 mm 8.09 mm | 0.318 " | Housing/Shell | 4-40 | Solder | D-Sub - Stacked | Gold | 3 (DB B) | Board Lock | Receptacle Female Sockets | 25 | Nickel Plated | Metal | Metal |
Oupiin | Polyester Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | UL94 V-0 | 2 | Right Angle Through Hole | Signal | 8.08 mm | 0.318 " | Housing/Shell | 4-40 | Solder | D-Sub - Stacked | Gold | 3 (DB B) | Board Lock | Receptacle Female Sockets | 25 | Nickel Plated | Metal |
