172130 Series
Manufacturer: Molex
Beta
⌘K

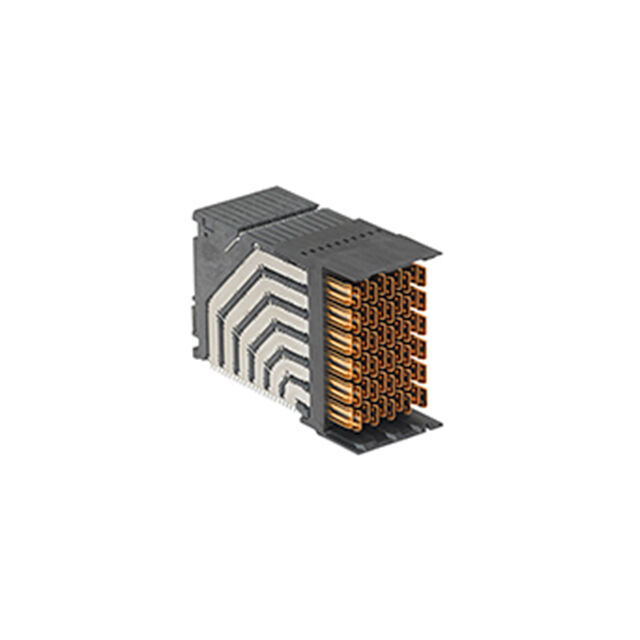

IMPEL 90 OHM 6 PAIR RIGHT-ANGLE HEADER, 1.90MM PITCH, UNGUIDED, 10 COLUMNS, OPEN ENDWALLS, 120 CIRCUITS, PIN LENGTH 5.50MM, PLATED THROUGH HOLE DIMENSION 0.36MM
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Current Rating (Amps) | Termination | Number of Columns | Number of Rows | Connector Style | Mounting Type | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Color | Connector Usage | Number of Positions | Number of Positions Loaded | Contact Finish | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 29.9 VAC/DC | -55 C | 85 °C | UL94 V-0 | 0.75 A | Press-Fit | 10 | 12 | Impel™ | Right Angle Through Hole | Shielded | Header Male Pins and Blades | 30 Áin | 0.76 Ám | 1.9 mm | 0.075 in | Black | Backplane Orthogonal | 120 | All | Gold | |
 Molex | 29.9 VAC/DC | -55 C | 85 °C | UL94 V-0 | 0.75 A | Press-Fit | 16 | 12 | Impel™ | Right Angle Through Hole | Shielded | Header Male Pins and Blades | 30 Áin | 0.76 Ám | 1.9 mm | 0.075 in | Black | 192 | All | Gold | 96 Differential Pairs |
