TPA6100A2 Series

50-mW, stereo, analog input headphone amplifier

Catalog

50-mW, stereo, analog input headphone amplifier

Part	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Mounting Type	Features	Output Type	Max Output Power x Channels @ Load	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case [custom]	Package / Case	Supplied Contents	Board Type	Amplifier Type
Texas Instruments TPA6100A2DR	8-SOIC	3.9 mm	0.154 in	8-SOIC	Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	Headphones 2-Channel (Stereo)	2 channels 50 mW	1.6 V	3.6 V	85 °C	-40 °C	Class AB
Texas Instruments TPA6100A2DGKR	8-MSOP 8-TSSOP				Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	Headphones 2-Channel (Stereo)	2 channels 50 mW	1.6 V	3.6 V	85 °C	-40 °C	Class AB	0.118 in	3 mm
Texas Instruments TPA6100A2DGKRG4	8-MSOP 8-TSSOP				Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	Headphones 2-Channel (Stereo)	2 channels 50 mW	1.6 V	3.6 V	85 °C	-40 °C	Class AB	0.118 in	3 mm

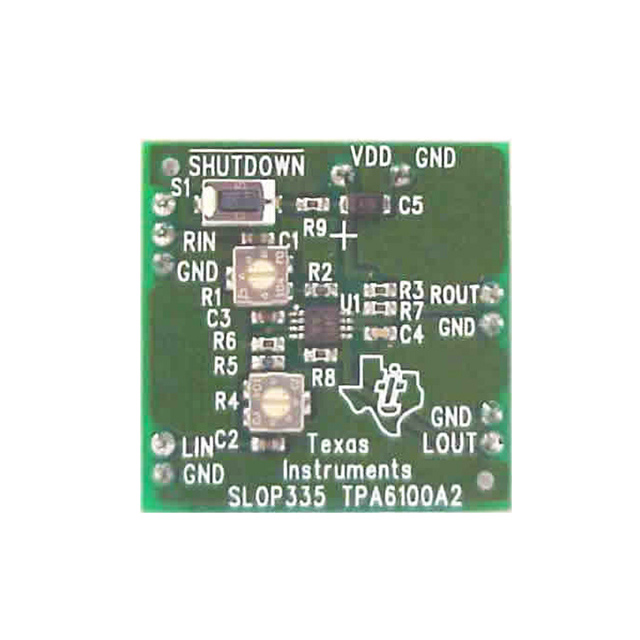

Texas Instruments TPA6100A2EVM							Headphones 2-Channel (Stereo)	2 channels 50 mW	1.6 V	3.6 V						Board(s)	Fully Populated	Class AB
Texas Instruments TPA6100A2DGKG4	8-MSOP 8-TSSOP				Surface Mount	Depop Short-Circuit and Thermal Protection Shutdown	Headphones 2-Channel (Stereo)	2 channels 50 mW	1.6 V	3.6 V	85 °C	-40 °C	Class AB	0.118 in	3 mm

Catalog

50-mW, stereo, analog input headphone amplifier

Key Features

• 50-mW Stereo OutputLow Supply Current...0.75 mALow Shutdown Current...50 nAPin Compatible With LM4881 and TPA102(1)Pop Reduction CircuitryInternal Midrail GenerationThermal and Short-Circuit ProtectionSurface-Mount PackagingMSOP and SOIC1.6-V to 3.6-V Supply Voltage Range(1)The polarity of the SHUTDOWN\ pin is reversed.50-mW Stereo OutputLow Supply Current...0.75 mALow Shutdown Current...50 nAPin Compatible With LM4881 and TPA102(1)Pop Reduction CircuitryInternal Midrail GenerationThermal and Short-Circuit ProtectionSurface-Mount PackagingMSOP and SOIC1.6-V to 3.6-V Supply Voltage Range(1)The polarity of the SHUTDOWN\ pin is reversed.

Description

The TPA6100A2D is a stereo audio power amplifier packaged in either an 8-pin SOIC package or an 8-pin MSOP package capable of delivering 50 mW of continuous RMS power per channel into 16-loads. Amplifier gain is externally configured by a means of three resistors per input channel and does not require external compensation for settings of 1 to 10. The TPA6100A2D is optimized for battery applications because of its low supply current, shutdown current, and THD+N. To obtain the low-supply voltage range, the TPA6100A2D biases BYPASS to VDD/4. A resistor with a resistance equal to RFmust be added from the inputs to ground to allow the output to be biased at VDD/2. When driving a 16-load with 45-mW output power from 3.3 V, THD+N is 0.04% at 1 kHz, and less than 0.2% across the audio band of 20 Hz to 20 kHz. For 28 mW into 32-loads, the THD+N is reduced to less than 0.03% at 1 kHz, and is less than 0.2% across the audio band of 20 Hz to 20 kHz. The TPA6100A2D is a stereo audio power amplifier packaged in either an 8-pin SOIC package or an 8-pin MSOP package capable of delivering 50 mW of continuous RMS power per channel into 16-loads. Amplifier gain is externally configured by a means of three resistors per input channel and does not require external compensation for settings of 1 to 10. The TPA6100A2D is optimized for battery applications because of its low supply current, shutdown current, and THD+N. To obtain the low-supply voltage range, the TPA6100A2D biases BYPASS to VDD/4. A resistor with a resistance equal to RFmust be added from the inputs to ground to allow the output to be biased at VDD/2. When driving a 16-load with 45-mW output power from 3.3 V, THD+N is 0.04% at 1 kHz, and less than 0.2% across the audio band of 20 Hz to 20 kHz. For 28 mW into 32-loads, the THD+N is reduced to less than 0.03% at 1 kHz, and is less than 0.2% across the audio band of 20 Hz to 20 kHz.
