205868 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

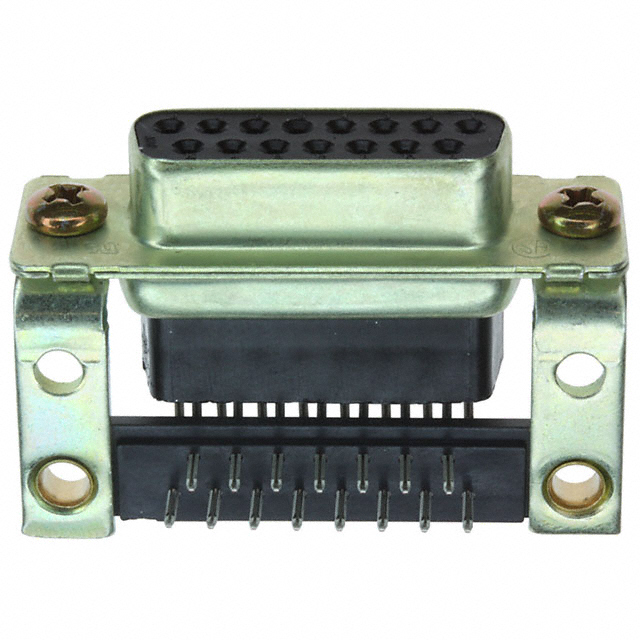

CONN D-SUB RCPT 15POS R/A SOLDER
| Part | Contact Finish Thickness | Connector Style | Mounting Type | Contact Finish | Contact Type | Flange Feature | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Termination | Number of Rows | Dielectric Material | Color | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Shell Material, Finish | Features | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Flash | D-Sub | Through Hole Right Angle | Gold | Signal | Mating Side Standard Screws (4-40) | 2 | 13.84 mm | 0.545 in | Solder | 2 | Glass Filled Nylon Polyamide (PA) | Black | UL94 V-0 | 125 VDC | 6 A | Steel Yellow Chromate Plated Zinc | Mounting Brackets | 105 ░C | -55 °C | Receptacle Female Sockets | 15 |
