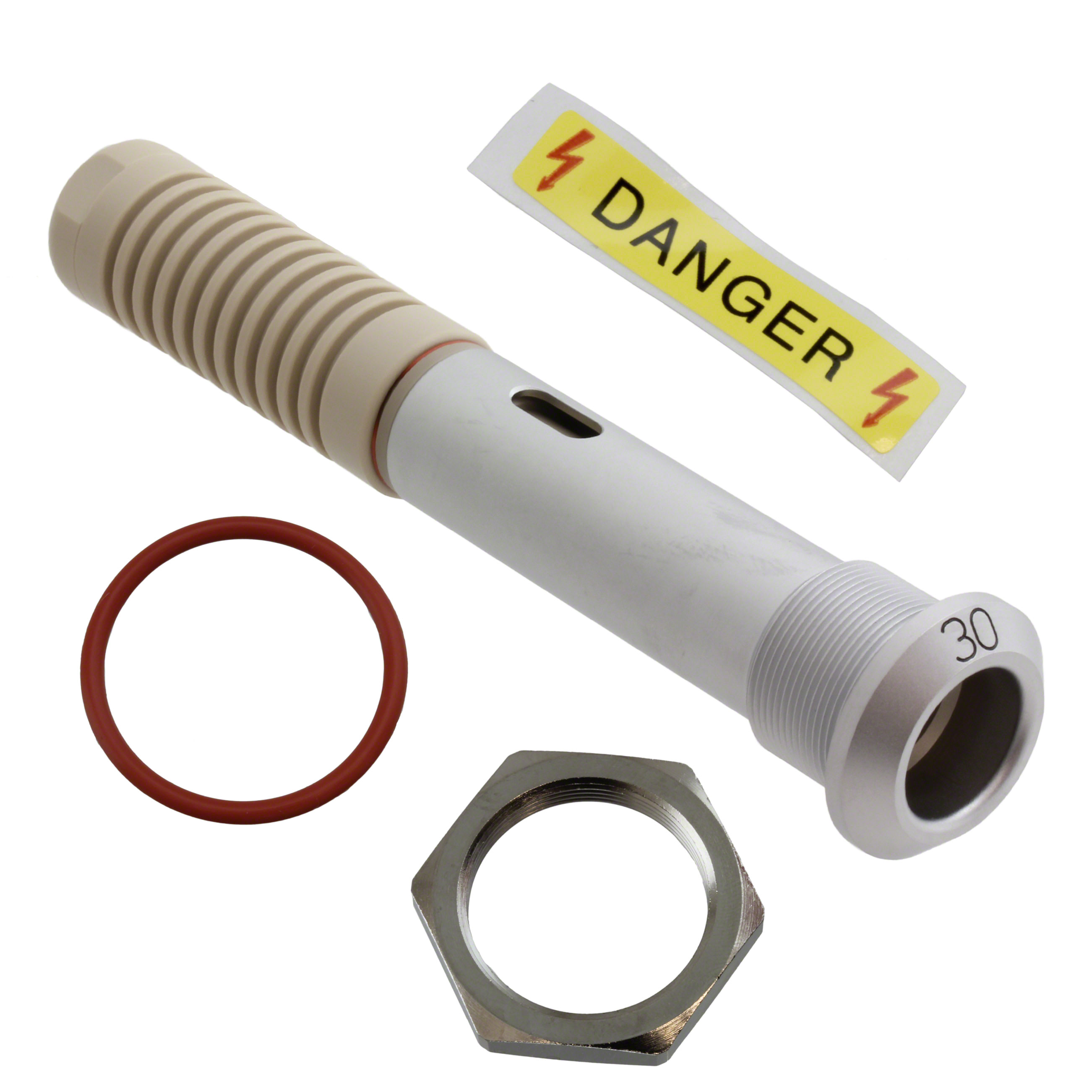

ERA.3Y Series

Manufacturer: LEMO

Catalog

CONN RCPT MALE 1P GOLD SLDR CUP

Part	Contact Finish - Mating	Mounting Feature	Color	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Ingress Protection	Insert Material	Shell Size - Insert	Connector Type	Shell Material	Backshell Material, Plating	Contact Material	Features	Shell Size - Insert [custom]
LEMO ERA.3Y.430.CTA	Gold	Bulkhead - Rear Side Nut	Silver	Metal	1.5 Ám	59 Áin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polytetrafluoroethylene (PTFE)	430	Receptacle Male Pins	Brass	Brass Chrome	Brass	Backshell
LEMO ERA.3Y.415.CTA	Gold	Bulkhead - Rear Side Nut	Silver	Metal	1.5 Ám	59 Áin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polytetrafluoroethylene (PTFE)	415	Receptacle Male Pins	Brass	Brass Chrome	Brass	Backshell
LEMO ERA.3Y.430.CTL	Gold	Bulkhead - Rear Side Nut	Silver	Metal	2 µm	78.7 µin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polytetrafluoroethylene (PTFE)	430	Receptacle Female Sockets	Brass	Brass Chrome	Beryllium Copper	Backshell
LEMO ERA.3Y.430.CLA	Gold	Bulkhead - Rear Side Nut	Silver	Metal	1.5 Ám	59 Áin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polyetheretherketone (PEEK)	430	Receptacle Male Pins	Brass	Brass Chrome	Brass	Backshell

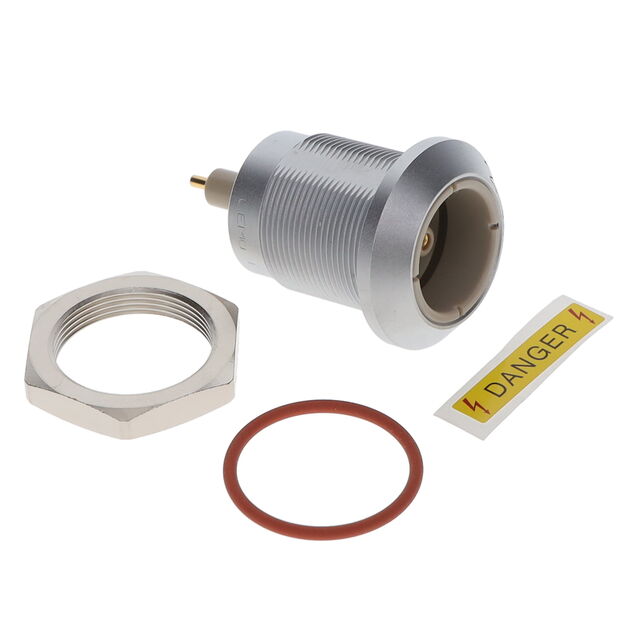

LEMO ERA.3Y.425.CLL	Gold	Bulkhead - Rear Side Nut	Silver	Metal	2 µm	78.7 µin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	8 A	IP50 - Dust Protected	Polyetheretherketone (PEEK)		Receptacle Female Sockets	Brass		Beryllium Copper		425

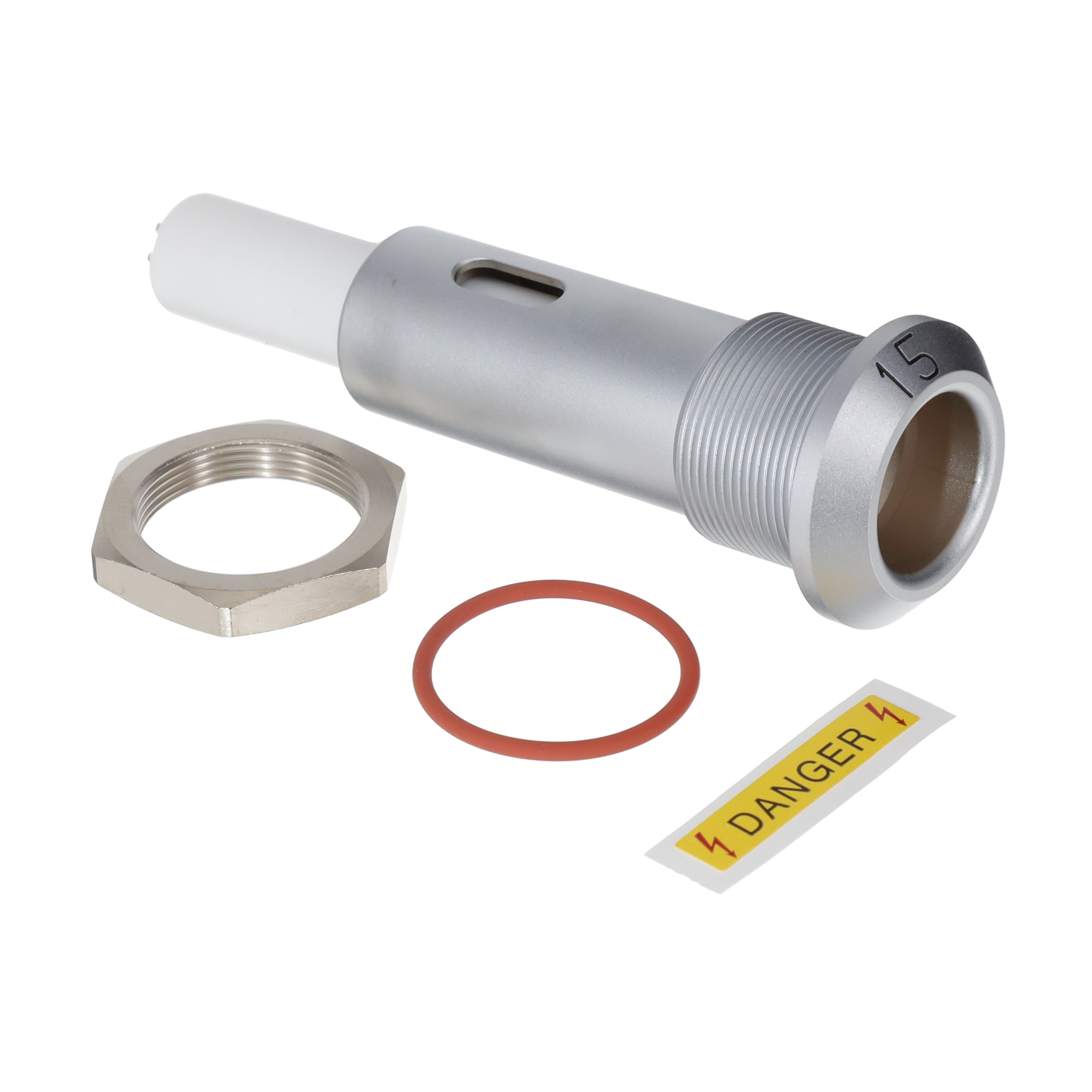

LEMO ERA.3Y.415.CTL	Gold	Bulkhead - Rear Side Nut	Silver	Metal	2 µm	78.7 µin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polytetrafluoroethylene (PTFE)	415	Receptacle Female Sockets	Brass	Brass Chrome	Beryllium Copper	Backshell
LEMO ERA.3Y.415.CLL	Gold	Bulkhead - Rear Side Nut	Silver	Metal	2 µm	78.7 µin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polyetheretherketone (PEEK)	415	Receptacle Female Sockets	Brass	Brass Chrome	Beryllium Copper	Backshell
LEMO ERA.3Y.430.CLL	Gold	Bulkhead - Rear Side Nut	Silver	Metal	2 µm	78.7 µin	1	Push-Pull	Chrome	Panel Mount	-55 C	230 °C	15 A	IP50 - Dust Protected	Polyetheretherketone (PEEK)	430	Receptacle Female Sockets	Brass	Brass Chrome	Beryllium Copper	Backshell
