79247 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

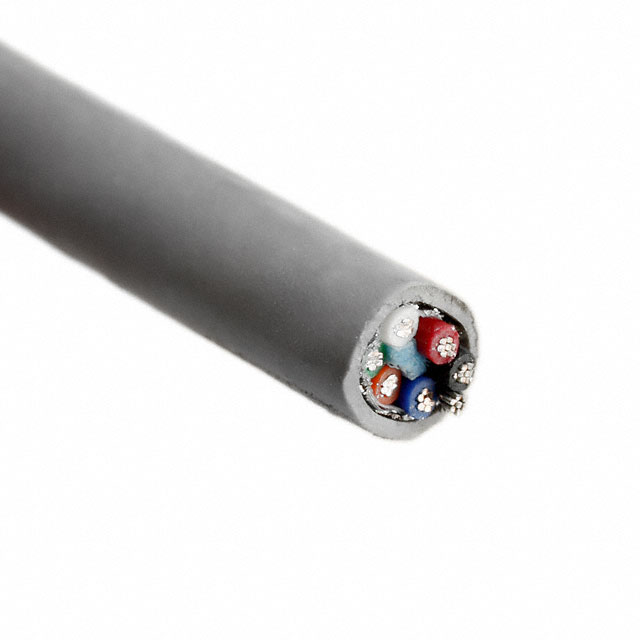

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, SHIELDED, 6 CONDUCTOR, 22 AWG, 0.38 MM², 100 FT, 30.5 M
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Shield Material | Shield Coverage | Jacket Color | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Shield Type | Voltage | Ratings | Cable Type | Conductor Insulation | Features | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.889 mm | 0.035 in | -40 °C | 105 ░C | 22 AWG | Copper Tinned Suprashield® | 70 % 100 % | Slate | 30.5 m | 100 ft | 19 Strands | 34 AWG | Polyphenylene Ether Modified (mPPE) | 6.6 mm | 0.26 in | 6 | Braid Foil | 600 V | ISO 10993 | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | Copper Tinned | ||
ALPHA WIRE | 0.889 mm | 0.035 in | -40 °C | 105 ░C | 22 AWG | Copper Tinned Suprashield® | 70 % 100 % | Slate | 19 Strands | 34 AWG | Polyphenylene Ether Modified (mPPE) | 6.6 mm | 0.26 in | 6 | Braid Foil | 600 V | ISO 10993 | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | Copper Tinned | 1000 ft | 304.8 m |
