202A111 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ11 BLACK

Part	Material	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered [x]	Total Length Recovered	Features	Shell Size - Insert	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Total Length Recovered	Small Recovered Length	Small Recovered Length [x]

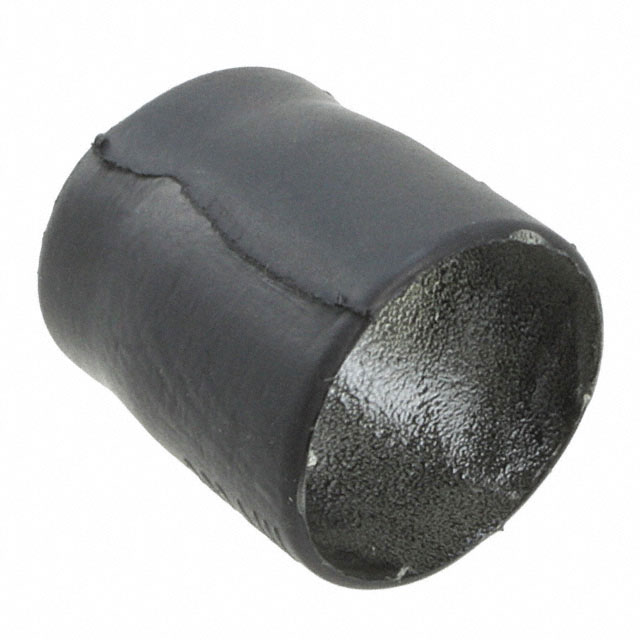

TE Connectivity Aerospace, Defense and Marine 202A111-3/42-0	Polyolefin (PO) Semi-Rigid	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	16.51 mm	0.65 in	1 in	25.4 mm	Adhesive Coating Flame Retardant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-12-0	Fluoroelastomer (FKM) Flexible	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	11.91 mm	0.469 in	1 in	25.4 mm	Chemical Resistant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-4/86-0	Polyolefin (PO) Flexible	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	16.51 mm	0.65 in	1 in	25.4 mm	Adhesive Coating Flame Retardant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-25-G06-0	Elastomer Semi-Rigid	Black	7.9 mm	0.311 in	Boot	16 mm	0.63 in	0.551 in	14 mm	16 mm	0.63 in		24.99 mm	Fluid Resistant	11	2.21 mm	0.087 "	0.984 in	5.99 mm	0.236 in
TE Connectivity Aerospace, Defense and Marine 202A111-3-0	Polyolefin (PO) Semi-Rigid	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	16.51 mm	0.65 in	1 in	25.4 mm	Flame Retardant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-25-01-0	Elastomer Semi-Rigid	Black	7.9 mm	0.311 in	Boot	19 mm	0.748 in	0.559 in	14.2 mm	19 mm	0.748 in	1 in	25.4 mm	Fluid Resistant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-4-0-CS8195	Polyolefin (PO) Flexible	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	16.51 mm	0.65 in	1 in	25.4 mm	Flame Retardant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-4-00-0	Polyolefin (PO) Flexible	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	16.51 mm	0.65 in	1 in	25.4 mm	Flame Retardant Potting (Injection) Port	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-25-0	Elastomer Semi-Rigid	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	11.91 mm	0.469 in	1 in	25.4 mm	Fluid Resistant	11	3.81 mm	0.15 "
TE Connectivity Aerospace, Defense and Marine 202A111-25/86-0	Elastomer Semi-Rigid	Black	7.9 mm	0.311 in	Boot	16.51 mm	0.65 in	0.559 in	14.2 mm	11.91 mm	0.469 in	1 in	25.4 mm	Adhesive Coating Fluid Resistant	11	3.81 mm	0.15 "
