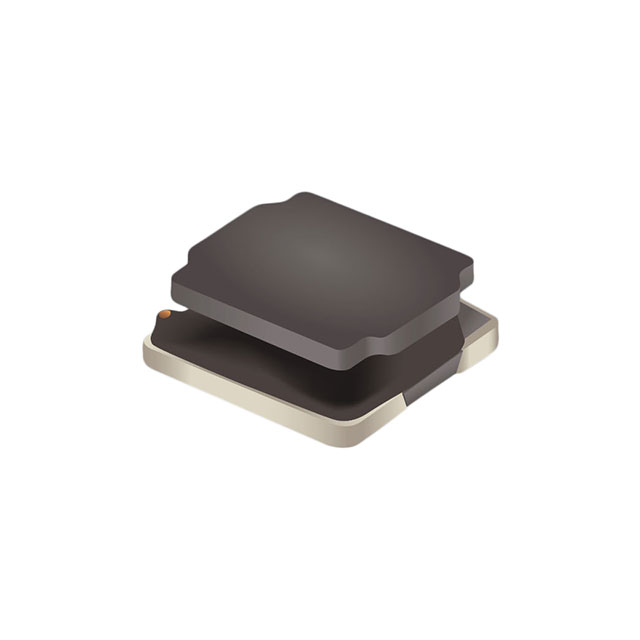

SRN3012TA Series

Catalog

POWER INDUCTOR (SMD), 22 ΜH, 610 MA, SEMISHIELDED, 490 MA, SRN3012TA SERIES

Part	Mounting Type	Inductance Frequency - Test	Package / Case	Package / Case	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Current - Saturation (Isat)	Type	Current Rating (Amps)	Frequency - Self Resonant	Material - Core	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance
Bourns Inc. SRN3012TA-220M	Surface Mount	1 MHz	3030 Metric	1212	Shielded	1.2 mm	0.047 "	580 mOhm	490 mA	Drum Core Wirewound	0.61 A	25 MHz	Ferrite	20 %	125 °C	-40 C	AEC-Q200	1 MHz 22	3 mm	0.118 in	3 mm	0.118 "	22 µH
Bourns Inc. SRN3012TA-150M	Surface Mount	1 MHz	3030 Metric	1212	Shielded	1.2 mm	0.047 "	386 mOhm	620 mA	Drum Core Wirewound	0.74 A	35 MHz	Ferrite	20 %	125 °C	-40 C	AEC-Q200	1 MHz 20	3 mm	0.118 in	3 mm	0.118 "	15 µH
Bourns Inc. SRN3012TA-1R5Y	Surface Mount	1 MHz	3030 Metric	1212	Shielded	1.2 mm	0.047 "	56 mOhm	1.7 A	Drum Core Wirewound	1.85 A	130 MHz	Ferrite	30 %	125 °C	-40 C	AEC-Q200	1 MHz 15	3 mm	0.118 in	3 mm	0.118 "	1.5 µH
Bourns Inc. SRN3012TA-2R2M	Surface Mount	1 MHz	3030 Metric	1212	Shielded	1.2 mm	0.047 "	80 mOhm		Drum Core Wirewound	1.7 A	90 MHz	Ferrite	20 %	125 °C	-40 C	AEC-Q200	1 MHz 15	3 mm	0.118 in	3 mm	0.118 "	2.2 µH
Bourns Inc. SRN3012TA-3R3M	Surface Mount	1 MHz	3030 Metric	1212	Shielded	1.2 mm	0.047 "	100 mOhm	1.2 A	Drum Core Wirewound	1.55 A	90 MHz	Ferrite	20 %	125 °C	-40 C	AEC-Q200	1 MHz 15	3 mm	0.118 in	3 mm	0.118 "	3.3 µH
