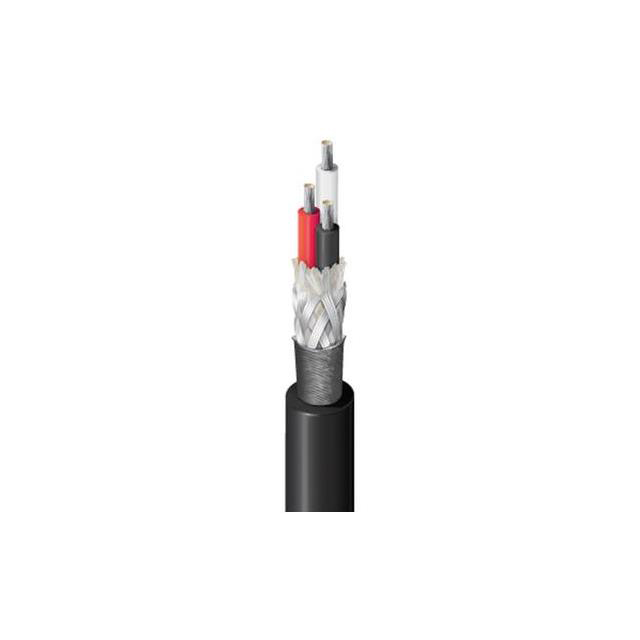

8423 Series
Manufacturer: Belden Inc.
Beta
⌘K
3 #20 EPDM BRD EPDM
| Part | Shield Coverage | Shield Material | Conductor Material | Wire Gauge | Number of Conductors | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Material | Conductor Insulation | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 83 % | Copper Tinned Viscose | Copper Tinned | 20 AWG | 3 | 152.4 m | 500 ft | 0.272 in | 6.91 mm | 90 °C | -50 °C | Microphone | Ethylene Propylene Terpolymer Rubber (EPDM) | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | 26 | 34 AWG | Audio | Double Braid | Black | 1.016 mm | 0.04 in |
 Belden Inc. | 83 % | Copper Tinned | Copper Tinned | 20 AWG | 3 | 304.8 m | 1000 ft | 0.272 in | 6.91 mm | 90 °C | -50 °C | Microphone | Ethylene Propylene Terpolymer Rubber (EPDM) | Ethylene Propylene Terpolymer Rubber (EPDM) | 600 V | 26 | 34 AWG | Braid | Black | 1.016 mm | 0.04 in |
