C14610R016 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN HOOD CPLNG BOTTOM SZE16 M25
| Part | Style | Thread Size | Housing Material | Lock Location | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Connector Type | Features | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Bottom Entry Top or Bottom Entry | M25 | Aluminum Die Cast | Locking Clip (2) on Hood Top | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Hood - Coupling | Cable to Cable | IP65 - Dust Tight Water Resistant | -40 C | 100 °C | E16 |
 Amphenol Tuchel Industrial | Bottom Entry Top or Bottom Entry | Aluminum Die Cast | Locking Clip (2) on Hood Top | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Hood - Coupling | Cable to Cable | IP65 - Dust Tight Water Resistant | -40 C | 100 °C | E16 | |

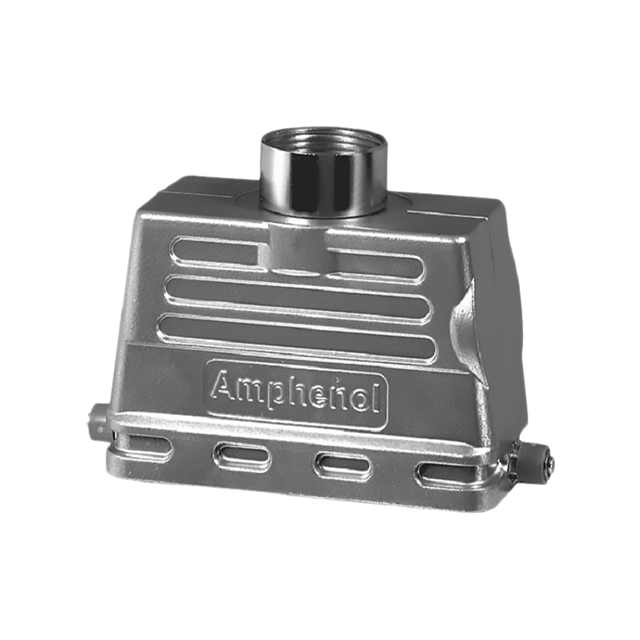

 Amphenol Tuchel Industrial | Top Entry | M25 | Aluminum Die Cast | Locking Clip (1) on Base Bottom | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Hood | IP65 - Dust Tight Water Resistant | -40 C | 100 °C | E16 | |

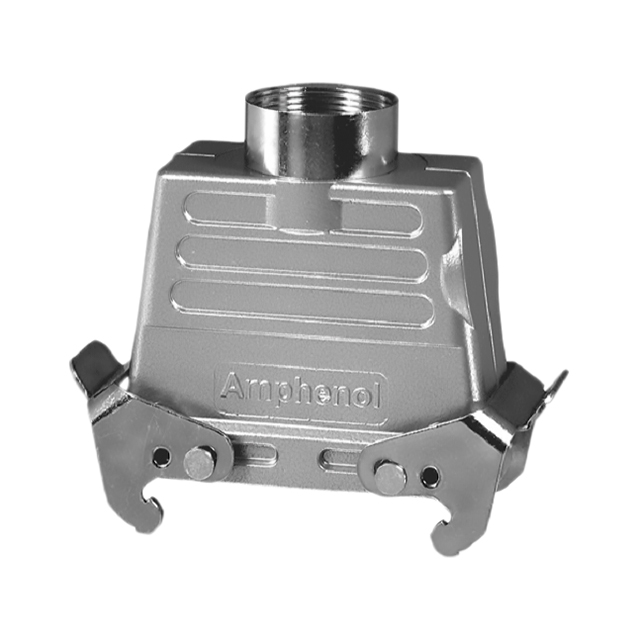

 Amphenol Tuchel Industrial | Top Entry | M25 | Aluminum Die Cast | Locking Clip (2) on Hood | 3.681 in | 43 mm | 2.992 in | 76 mm | 1.693 " | 93.5 mm | Hood | IP65 - Dust Tight Water Resistant | -40 C | 100 °C | E16 |
