842-102 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 102POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Contact Type	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Type	Contact Material	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Pitch	Pitch	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Features

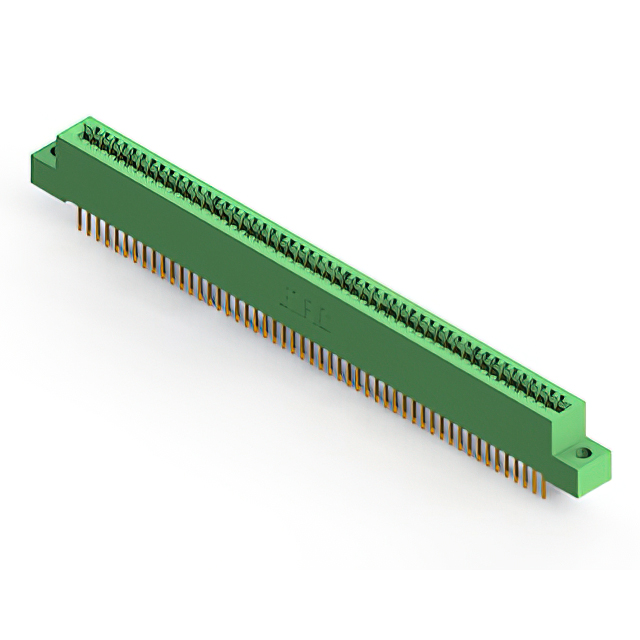

EDAC Inc. 842-102-523-204	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C
EDAC Inc. 842-102-541-202	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C
EDAC Inc. 842-102-541-203	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C

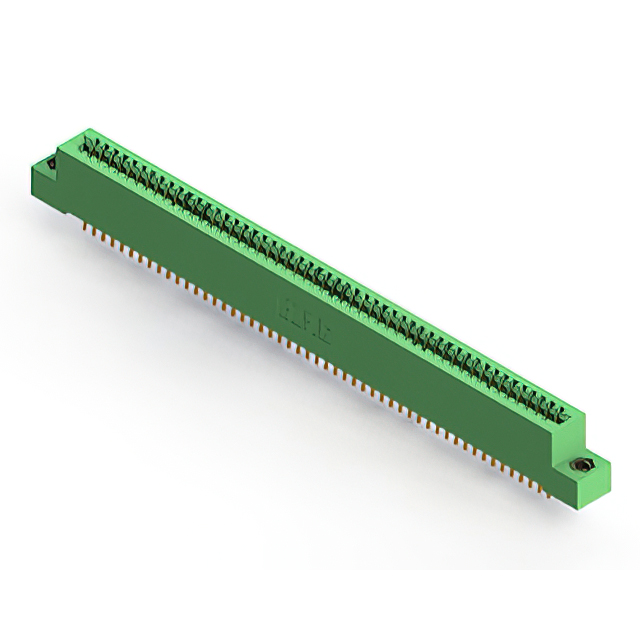

EDAC Inc. 842-102-556-207	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount M3 Threaded Insert Top Opening			Board Edge Straddle Mount	0.1 "	2.54 mm	Gold	125 °C	-40 C	Card Extender
EDAC Inc. 842-102-558-201	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102				Right Angle Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C

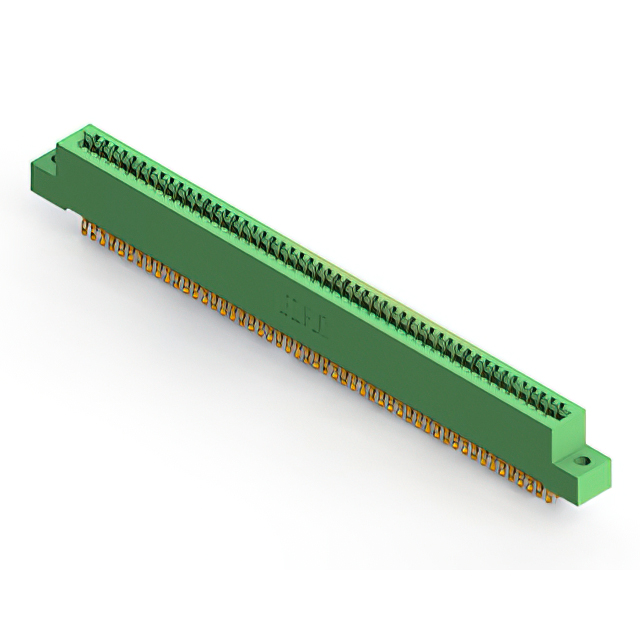

EDAC Inc. 842-102-555-202	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Board Edge Straddle Mount	0.1 "	2.54 mm	Gold	125 °C	-40 C	Card Extender
EDAC Inc. 842-102-542-208	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C

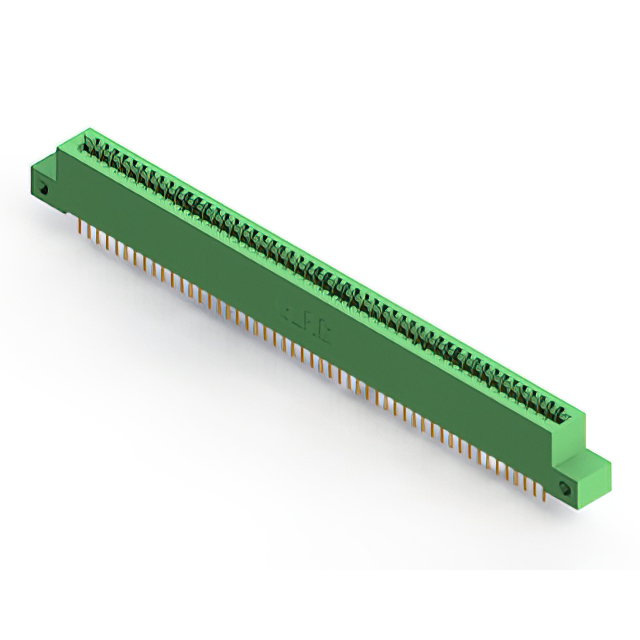

EDAC Inc. 842-102-524-212	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C

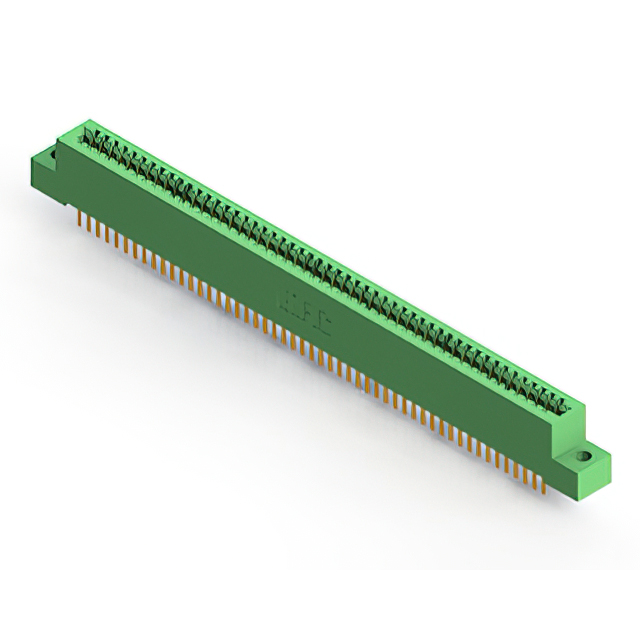

EDAC Inc. 842-102-520-204	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C

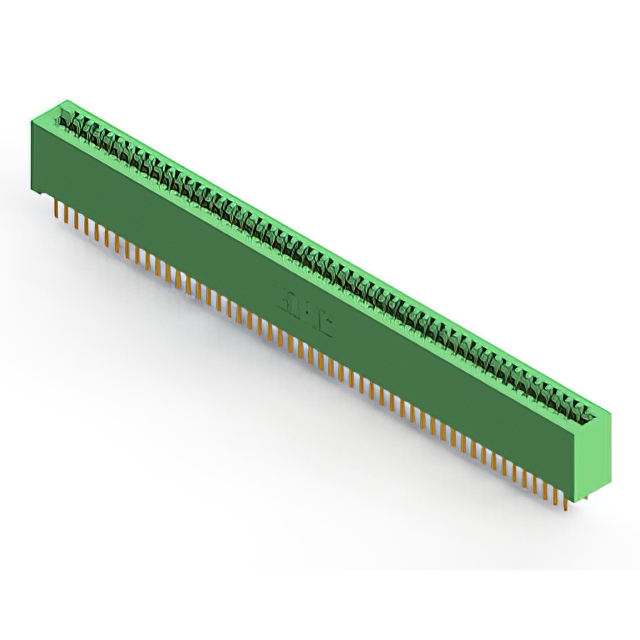

EDAC Inc. 842-102-520-201	2	Diallyl Phthalate (DAP)	51	2	Cantilever	Green	Dual	0.25 Ám	10 Áin	Solder	Non Specified - Dual Edge	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	102				Through Hole	0.1 "	2.54 mm	Gold	125 °C	-40 C
