JPM26B Series
Manufacturer: NKK Switches
Beta
⌘K
INTERNATIONALLY APPROVED PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Actuator Marking | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Type | Features | Voltage Rating - AC | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Switch Function | Color - Actuator/Cap | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

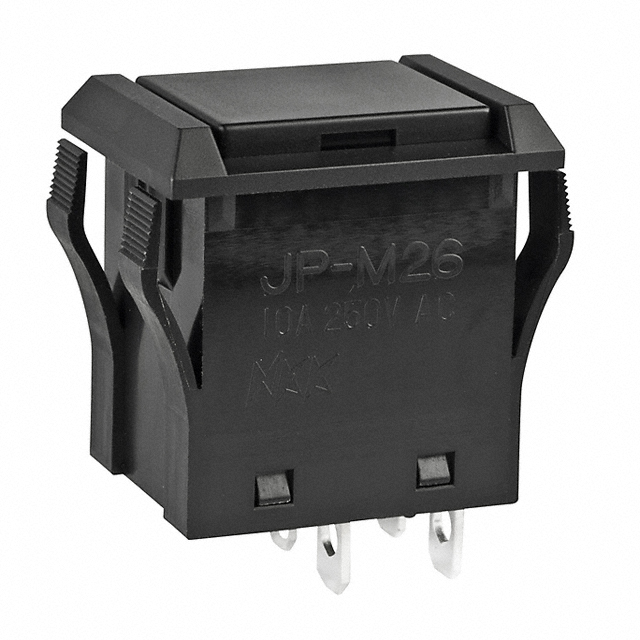

 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Solder Lug | 70 °C | -10 °C | Button Rectangular | Standard | Tactile Feedback | 125 V | 10 A | 28 mm | 21.2 mm | Panel Mount Snap-In | Off-On | Black | DPST |

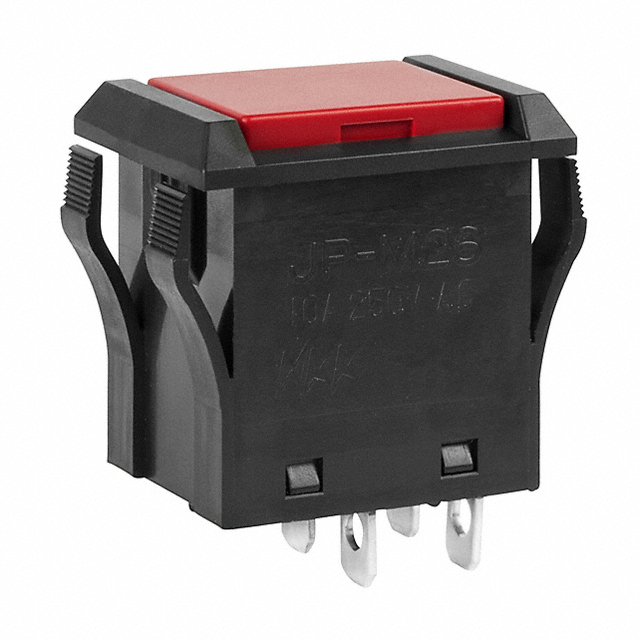

 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Solder Lug | 70 °C | -10 °C | Button Rectangular | Standard | Tactile Feedback | 125 V | 10 A | 28 mm | 21.2 mm | Panel Mount Snap-In | Off-On | Red | DPST |
 NKK Switches | 25000 Steps | 25000 Steps | No Marking | Solder Lug | 70 °C | -10 °C | Button Rectangular | Standard | Tactile Feedback | 125 V | 10 A | 28 mm | 21.2 mm | Panel Mount Snap-In | Off-On | DPST |
