EZC18 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 36POS 0.100
| Part | Color | Mounting Type | Card Thickness | Card Thickness | Read Out | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Material - Insulation | Card Type | Contact Type | Gender | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

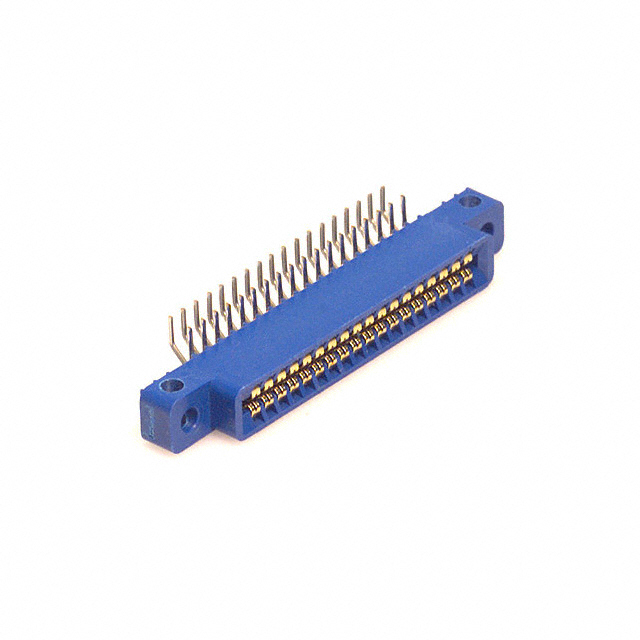

 Sullins Connector Solutions | Blue | Through Hole Right Angle | 0.062 in | 1.57 mm | Dual | 36 | Side Mount Opening Unthreaded | 0.125 in | 3.18 mm | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Phosphor Bronze | 2 | 18 | 125 °C | -65 ░C | Gold | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Full Bellows | Female | Solder |

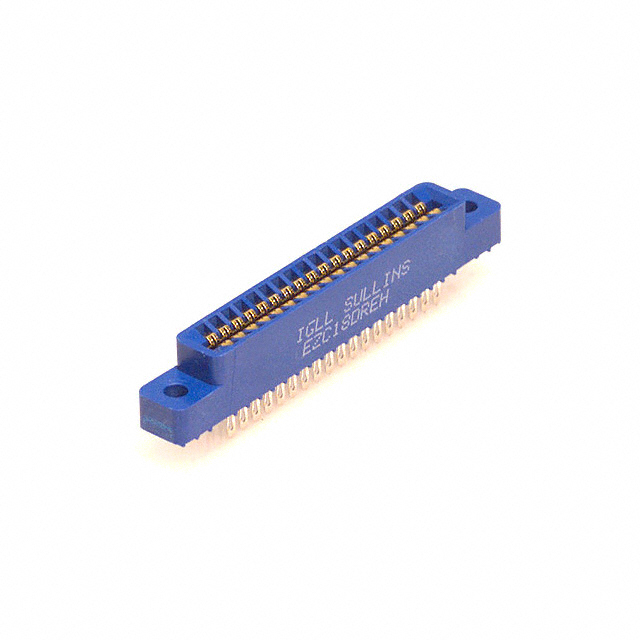

 Sullins Connector Solutions | Blue | 0.062 in | 1.57 mm | Dual | 36 | Top Mount Opening Unthreaded | 0.125 in | 3.18 mm | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Phosphor Bronze | 2 | 18 | 125 °C | -65 ░C | Gold | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Full Bellows | Female | Solder Eyelet(s) |
