5320FL Series
Manufacturer: Belden Inc.
Beta
⌘K

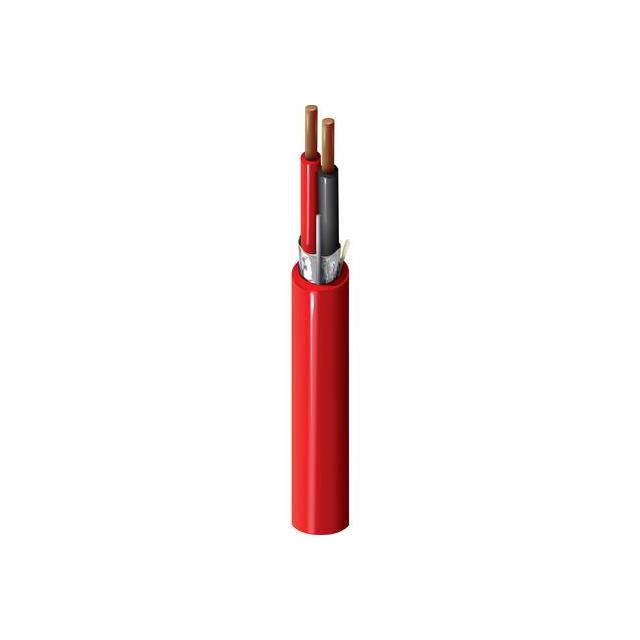

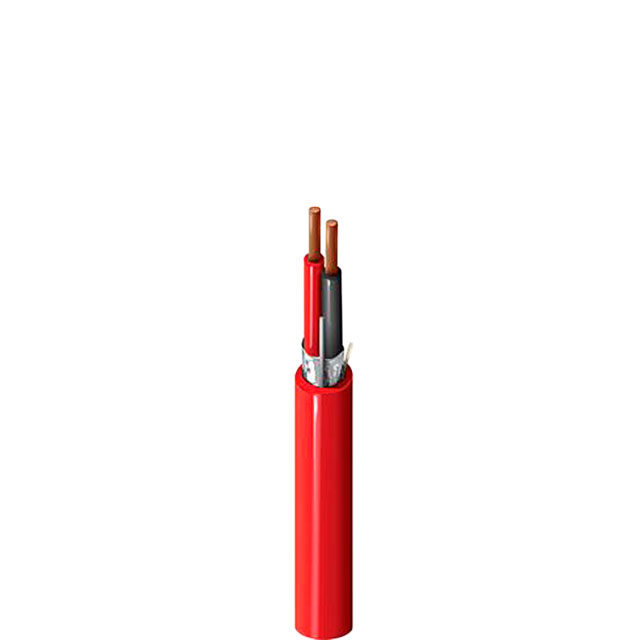

CABLE 2COND 18AWG VIO SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand | Jacket Color | Number of Conductors | Voltage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Features | Length | Length | Cable Type | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Solid | Violet | 2 | 300 VDC | Alarm Safety | 3.73 mm | 0.147 " | Copper Bare | Drain Wire Rip Cord | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | 18 AWG | 0.017 " | 0.432 mm | Polypropylene (PP) | Foil |
 Belden Inc. | Aluminum | 100 % | Solid | Red | 2 | 300 VDC | Alarm Safety | 3.73 mm | 0.147 " | Copper Bare | Drain Wire Rip Cord | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | 18 AWG | 0.017 " | 0.432 mm | Polypropylene (PP) | Foil |
Belden Inc. | Aluminum | 100 % | Solid | Yellow | 2 | 300 VDC | Alarm Safety | 3.73 mm | 0.147 " | Copper Bare | Drain Wire Rip Cord | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | 18 AWG | 0.017 " | 0.432 mm | Polypropylene (PP) | Foil |
 Belden Inc. | Aluminum | 100 % | Solid | Black | 2 | 300 VDC | Alarm Safety | 3.73 mm | 0.147 " | Copper Bare | Drain Wire Rip Cord | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | 18 AWG | 0.017 " | 0.432 mm | Polypropylene (PP) | Foil |
Belden Inc. | Aluminum | 100 % | Solid | Red | 2 | 300 VDC | Alarm Safety | 3.73 mm | 0.147 " | Copper Bare | Drain Wire Rip Cord | 152.4 m | 500 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | 18 AWG | 0.017 " | 0.432 mm | Polypropylene (PP) | Foil |
