P70-10100 Series
Manufacturer: Harwin Inc.
Beta
⌘K

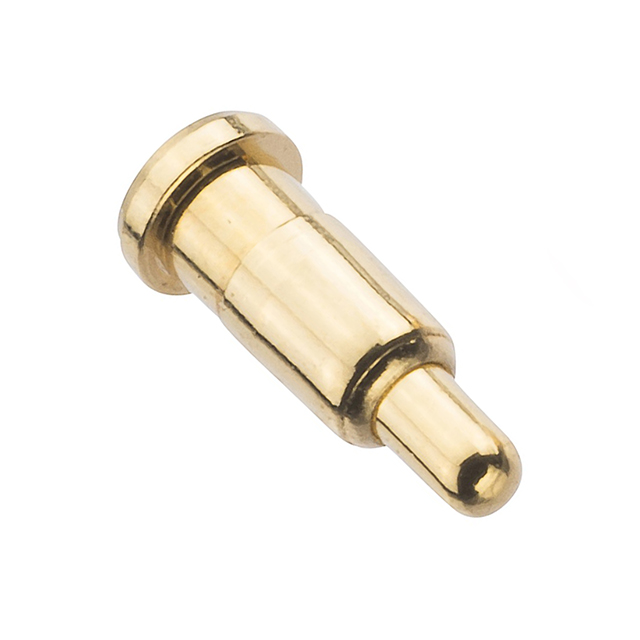

SPRING LOADED CONTACT, PIN, 5MM, SMT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Contact Finish | Mating Cycles | Minimum Working Height | Minimum Working Height | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 2 A | 0.157 in | 4 mm | Sleeve & Plunger (Pogo Pins) | 0.165 in | 4.2 mm | 16 µin | 0.41 µm | Surface Mount | 2.2 mm | Circular | 0.087 in | 0.035 in | 0.9 mm | 119.31 gf | Gold | 10000 | 3.7 mm | 0.146 in | Brass |
