140-502 Series

Manufacturer: EDAC Inc.

Catalog

2.0MM PITCH CONNECTOR WITH 2 P.C

Part	Material Flammability Rating	Number of Rows	Shrouding	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Insulation Height [z]	Insulation Height [z]	Insulation Material	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Features

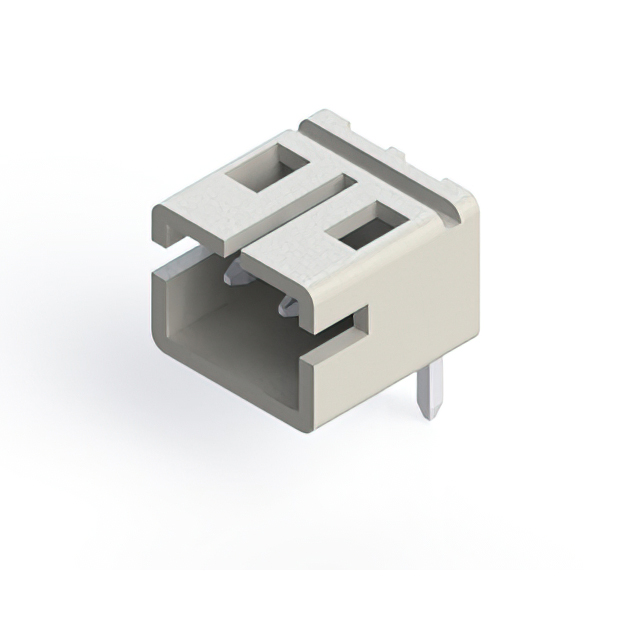

EDAC Inc. 140-502-415-100	UL94 V-0	1	Shrouded - 4 Wall	Detent Lock	0.079 "	2 mm	Right Angle Through Hole	Board to Cable/Wire	0.185 in	4.7 mm	Nylon 6/6 Polyamide (PA66)	Header	Brass	-40 C	105 ░C	Solder	Natural	Tin	2	All	Square	2 A	100 VAC	Male Pin
EDAC Inc. 140-502-415-001	UL94 V-0	1	Shrouded - 4 Wall	Detent Lock	0.079 "	2 mm	Through Hole	Board to Cable/Wire	0.24 in	6.1 mm	Nylon 6/6 Polyamide (PA66)	Header	Brass	-40 C	105 ░C	Kinked Pin Solder	Natural	Tin	2	All	Square	2 A	100 VAC	Male Pin

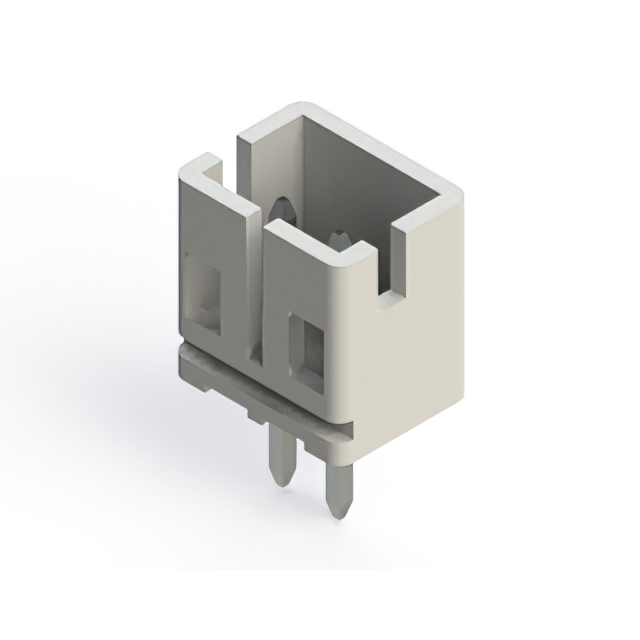

EDAC Inc. 140-502-415-101	UL94 V-0	1	Shrouded - 4 Wall	Detent Lock	0.079 "	2 mm	Through Hole	Board to Cable/Wire	0.24 in	6.1 mm	Nylon 6/6 Polyamide (PA66)	Header	Brass	-40 C	105 ░C	Solder	Natural	Tin	2	All	Square	2 A	100 VAC	Male Pin

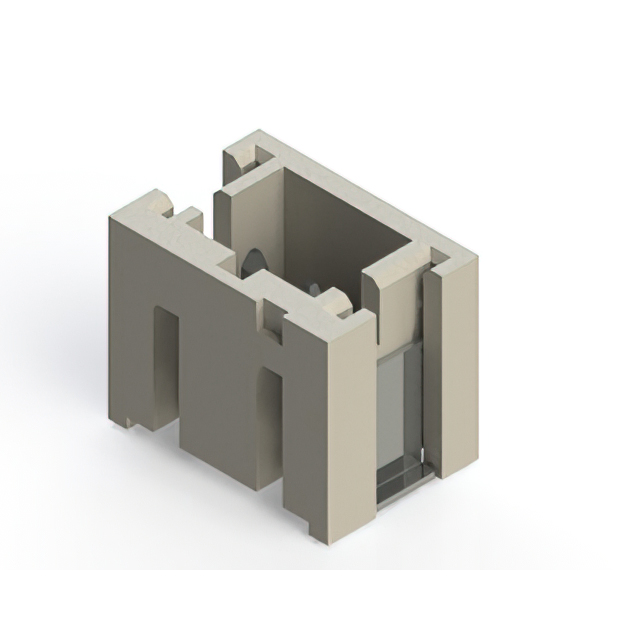

EDAC Inc. 140-502-417-011	UL94 V-0	1	Shrouded - 4 Wall	Detent Lock	0.079 "	2 mm	Surface Mount	Board to Cable/Wire			Liquid Crystal Polymer (LCP)	Header	Brass	-40 C	105 ░C	Solder	Natural	Tin	2	All	Square	2 A	100 VAC	Male Pin	0.217 in	5.51 mm	Solder Retention

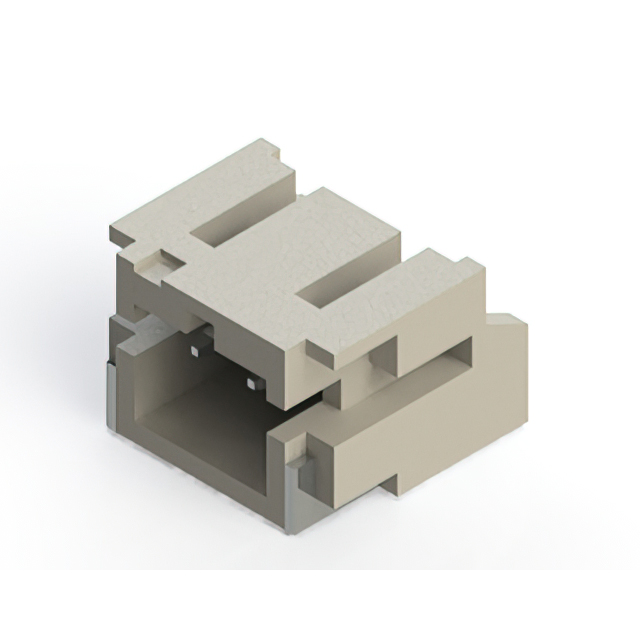

EDAC Inc. 140-502-417-060	UL94 V-0	1	Shrouded - 4 Wall	Detent Lock	0.079 "	2 mm	Right Angle Surface Mount	Board to Cable/Wire			Nylon 9T Polyamide (PA9T)	Header	Brass	-25 °C	85 °C	Solder	Natural	Tin	2	All	Square	2 A	100 VAC	Male Pin	0.217 in	5.51 mm	Solder Retention
