2183R Series
Manufacturer: Belden Inc.
Beta
⌘K

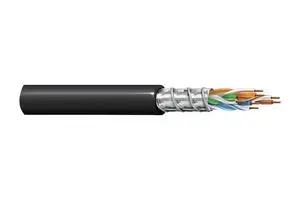

SHLD MULTIPAIR, 4 PAIR, 23AWG, PER M
| Part | Shield Material | Shield Coverage | Conductor Material | Shield Type | Conductor Strand | Voltage | Number of Conductors | Conductor Insulation | Conductor Insulation | Length | Length | Wire Gauge | Usage | Features | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket Color | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Bare | Foil | Solid | 300 VDC | 8 | Polyolefin | PO | 76.2 m 152.4 m 304.8 m | 250 ft 500 ft 1000 ft | 23 AWG | 4K UHD HDbase-T PoE | Drain Wire Rip Cord | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) Riser | Black | UL Style CMR | Multi-Pair |
 Belden Inc. | Aluminum | 100 % | Copper Bare | Foil | Solid | 300 VDC | 8 | Polyolefin | PO | 304.8 m | 1000 ft | 23 AWG | 4K UHD HDbase-T PoE | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) Riser | Black | UL Style CMR | Multi-Pair | ||
Belden Inc. | Aluminum | 100 % | Copper Bare | Foil | Solid | 300 VDC | 8 | Polyolefin | PO | 304.8 m | 1000 ft | 23 AWG | 4K UHD HDbase-T PoE | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) Riser | White | UL Style CMR | Multi-Pair |
