387-012 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, 12 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40, BLACK INSULATOR,

...

Part	Gender	Number of Rows	Card Type	Mounting Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Flange Feature	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Type	Pitch [x]	Pitch [x]	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature

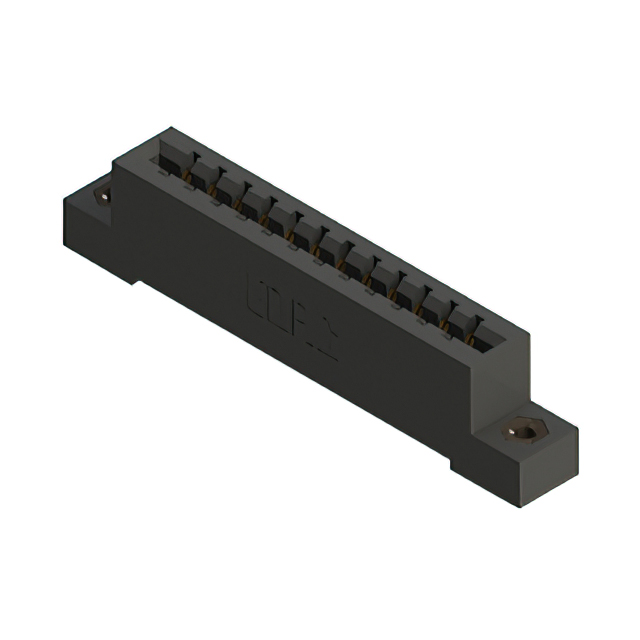

EDAC Inc. 387-012-520-108	Female	1	Non Specified - Single Edge	Through Hole	Single	-40 °C	105 ░C	Black	Solder	Copper Alloy	Gold	12	4-40 Flush Mount Threaded Insert Top Opening	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám

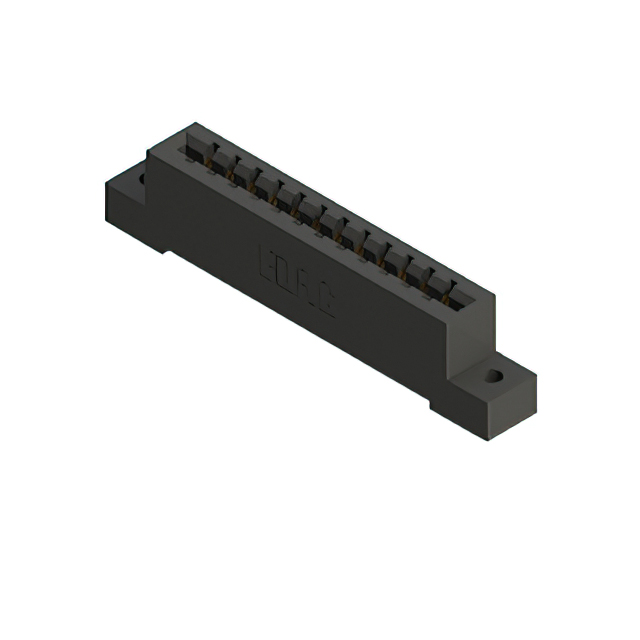

EDAC Inc. 387-012-542-102	Female	1	Non Specified - Single Edge	Through Hole	Single	-40 °C	105 ░C	Black	Wire Wrap	Copper Alloy	Gold	12	Flush Mount Top Opening Unthreaded	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám	3.25 mm	0.128 "

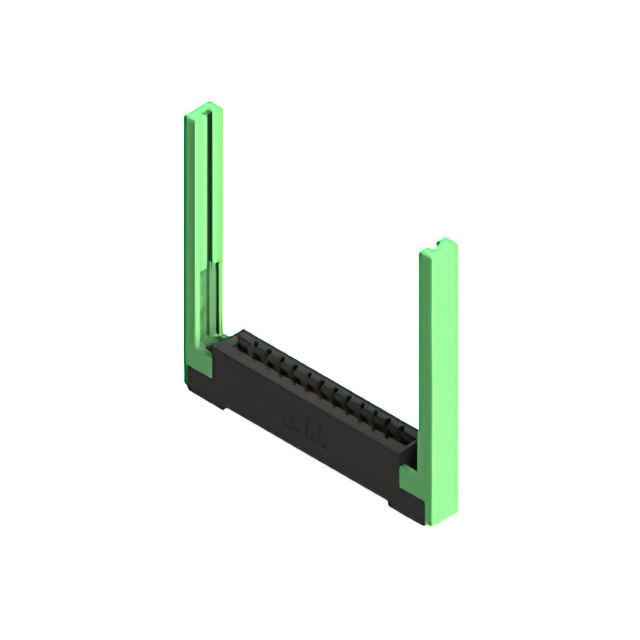

EDAC Inc. 387-012-521-168	Female	1	Non Specified - Single Edge	Through Hole	Single	-40 °C	105 ░C	Black	Solder	Copper Alloy	Gold	12	4-40 Flush Mount Threaded Insert Top Opening	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám

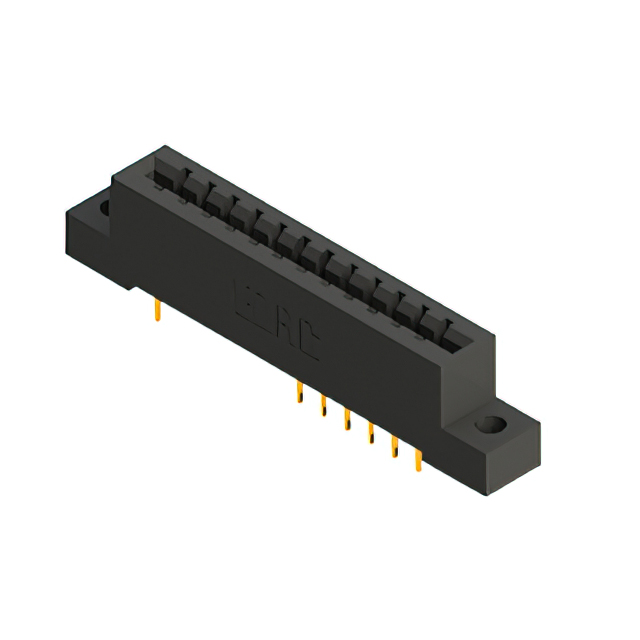

EDAC Inc. 387-012-558-104	Female	1	Non Specified - Single Edge	Through Hole Right Angle	Single	-40 °C	105 ░C	Black	Wire Wrap	Copper Alloy	Gold	12	Flush Mount Top Opening Unthreaded	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám	3.96 mm	0.156 in

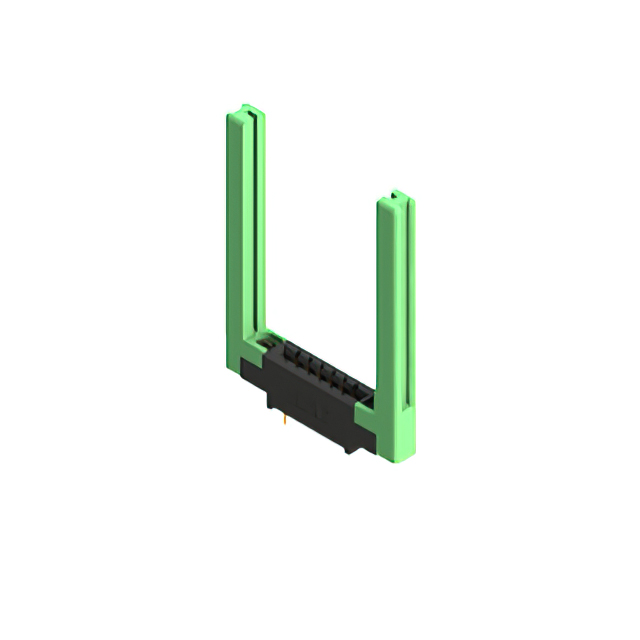

EDAC Inc. 387-012-541-858	Female	2	Non Specified - Dual Edge	Through Hole	Dual	-40 °C	105 ░C	Black	Wire Wrap	Copper Alloy	Gold	12	4-40 Threaded Insert Top Mount Opening	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	2	10 Áin	0.25 Ám

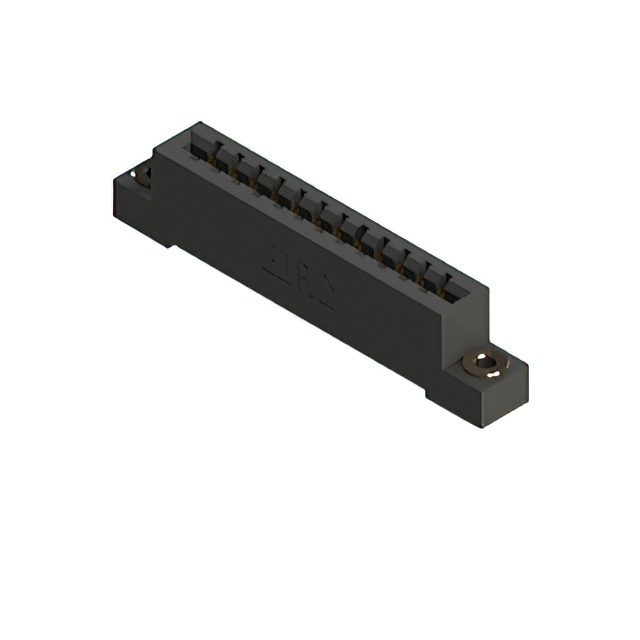

EDAC Inc. 387-012-544-103	Female	1	Non Specified - Single Edge	Through Hole	Single	-40 °C	105 ░C	Black	Wire Wrap	Copper Alloy	Gold	12	Floating Bobbin Flush Mount	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám	2.95 mm	0.116 in

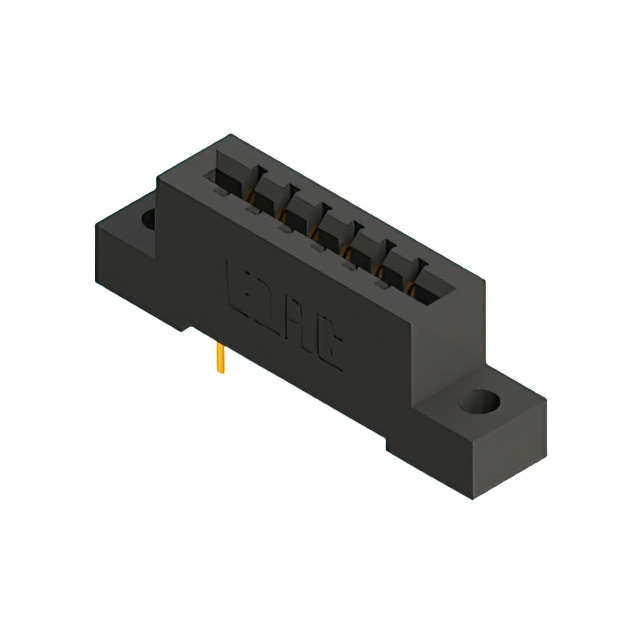

EDAC Inc. 387-012-520-204	Female	2	Non Specified - Dual Edge	Through Hole	Dual	-40 °C	105 ░C	Black	Solder	Copper Alloy	Gold	6	Flush Mount Top Opening Unthreaded	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	2	10 Áin	0.25 Ám	3.96 mm	0.156 in

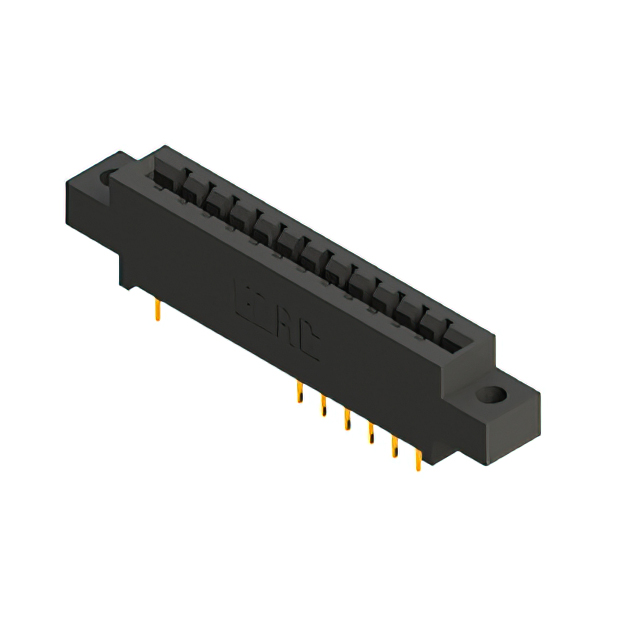

EDAC Inc. 387-012-558-604	Female	1	Non Specified - Single Edge	Through Hole Right Angle	Single	-40 °C	105 ░C	Black	Wire Wrap	Copper Alloy	Gold	12	Top Mount Opening Unthreaded	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám	3.96 mm	0.156 in

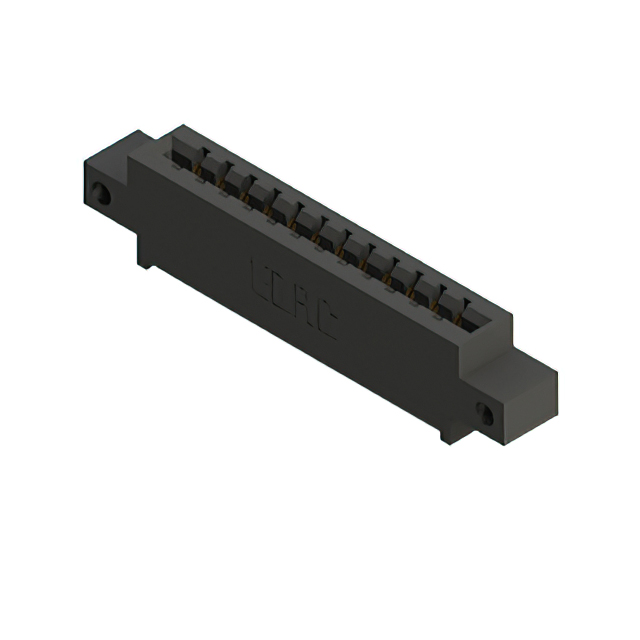

EDAC Inc. 387-012-523-612	Female	1	Non Specified - Single Edge	Through Hole	Single	-40 °C	105 ░C	Black	Solder	Copper Alloy	Gold	12	Side Mount Opening Unthreaded	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	1	10 Áin	0.25 Ám			3.25 mm	0.128 in

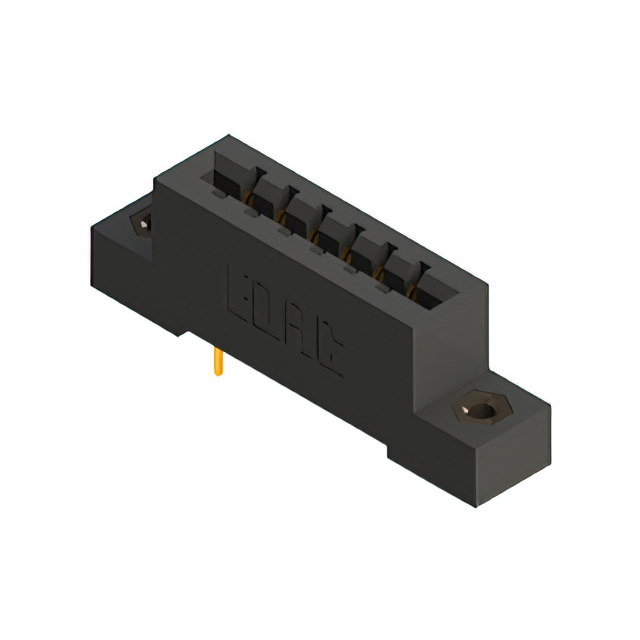

EDAC Inc. 387-012-521-208	Female	2	Non Specified - Dual Edge	Through Hole	Dual	-40 °C	105 ░C	Black	Solder	Copper Alloy	Gold	6	4-40 Flush Mount Threaded Insert Top Opening	12	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Cantilever	0.156 in	3.96 mm	2	10 Áin	0.25 Ám
