EL357N Series

Catalog

OPTOISOLATOR 3.75KV TRANS 4-SOP

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Input Type	Package / Case	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel [custom]	Vce Saturation (Max) [Max]	Mounting Type	Current Transfer Ratio (Min)	Voltage - Isolation	Current Transfer Ratio (Max) [Max]
Everlight Electronics Co Ltd EL357N(TB)-G	4 µs	3 µs	Transistor	DC	4-SMD Gull Wing	1	-55 C	110 °C	50 mA	50 mA	200 mV	Surface Mount	50 %	3750 Vrms	600 %
Everlight Electronics Co Ltd EL357N(TA)-G	4 µs	3 µs	Transistor	DC	4-SMD Gull Wing	1	-55 C	110 °C	50 mA	50 mA	200 mV	Surface Mount	50 %	3750 Vrms	600 %
Everlight Electronics Co Ltd EL357N(TA)-VG	4 µs	3 µs	Transistor	DC	4-SMD Gull Wing	1	-55 C	110 °C	50 mA	50 mA	200 mV	Surface Mount	50 %	3750 Vrms	600 %

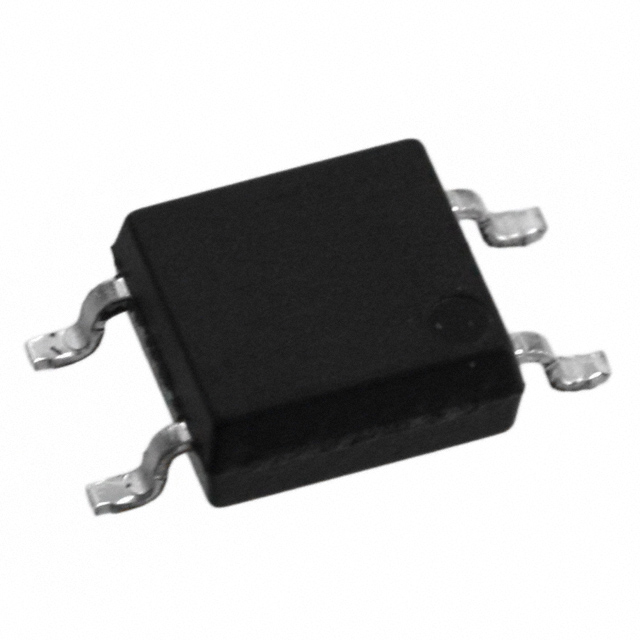

Everlight Electronics Co Ltd EL357N-G	4 µs	3 µs	Transistor	DC	4-SMD Gull Wing	1	-55 C	110 °C	50 mA	50 mA	200 mV	Surface Mount	50 %	3750 Vrms	600 %
