86-100 Series

Catalog

SENSOR 100PSIG 0.1V

Part	Termination Style	Applications	Output Type	Operating Pressure	Operating Pressure	Port Style	Package / Case	Features	Output [Min]	Output [Max]	Accuracy	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]

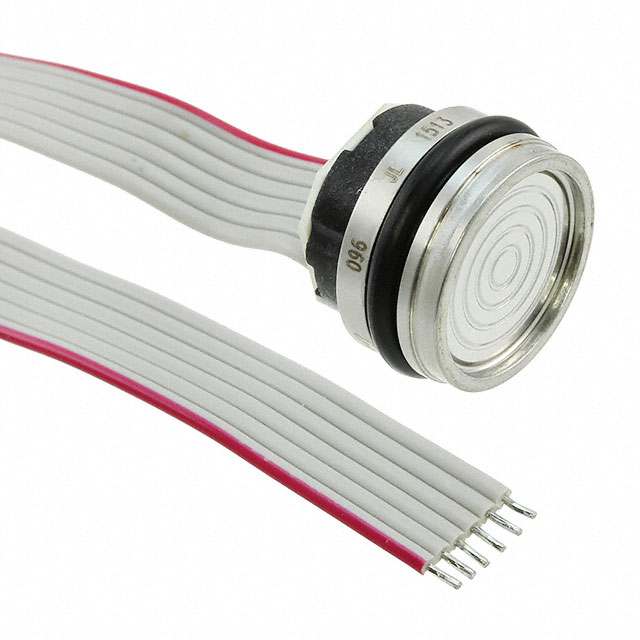

TE Connectivity Measurement Specialties 86-100G-R	Cable with Connector	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	No Port	Cylinder	Temperature Compensated	0 mV	100 mV	0.1 %	Vented Gauge	125 °C	-40 °C	2068.43 kPa	300 PSI

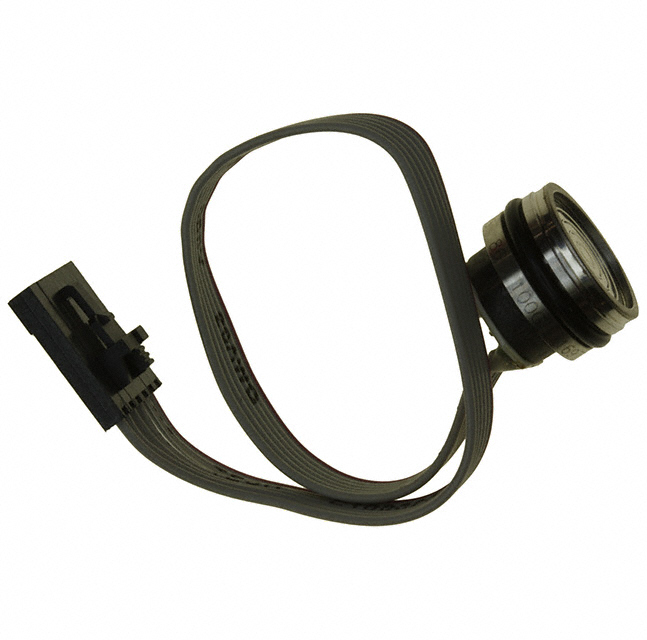

TE Connectivity Measurement Specialties 86-100G-C	Cable with Connector	Board Mount	Wheatstone Bridge	689.48 kPa	100 PSI	No Port	Cylinder	Temperature Compensated	0 mV	100 mV	0.1 %	Vented Gauge	125 °C	-40 °C	2068.43 kPa	300 PSI
