GSM36B24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

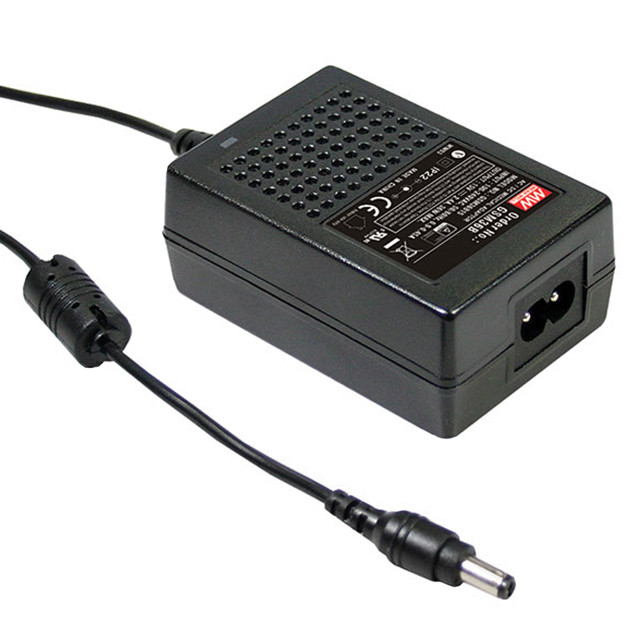

AC/DC DESKTOP ADAPTER 24V 36W
| Part | Form | Operating Temperature [Min] | Operating Temperature [Max] | Output Connector [x] | Output Connector [diameter] | Output Connector | Voltage - Input [Min] | Voltage - Input [Max] | No Load Power Consumption | Efficiency | Region Utilized | Cord Length | Cord Length | Polarization | Current - Output (Max) [Max] | Power (Watts) | Approval Agency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Input Type | Voltage - Output | Applications | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Desktop (Class II) | -25 °C | 60 °C | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 80 VAC | 264 VAC | 100 mW | Level VI | International | 70.9 " | 1.8 m | Positive Center | 1.5 A | 36 W | CB CE cRUus TUV | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Cord (Sold Separately) | 24 V | Medical | IEC 320-C8 |
